Daikin 4MXS68F2V1B [263/501] Changing ventilation mode
![Daikin 4MXS68F2V1B [263/501] Changing ventilation mode](/views2/1761937/page263/bg107.png)
SiBE121021_C SA Indoor Unit - FFQ, FCQ, FDBQ, FBQ, FHQ Series
Operation Manual 251
English 33
2
Low High
* Only modes that can be set are displayed.
3

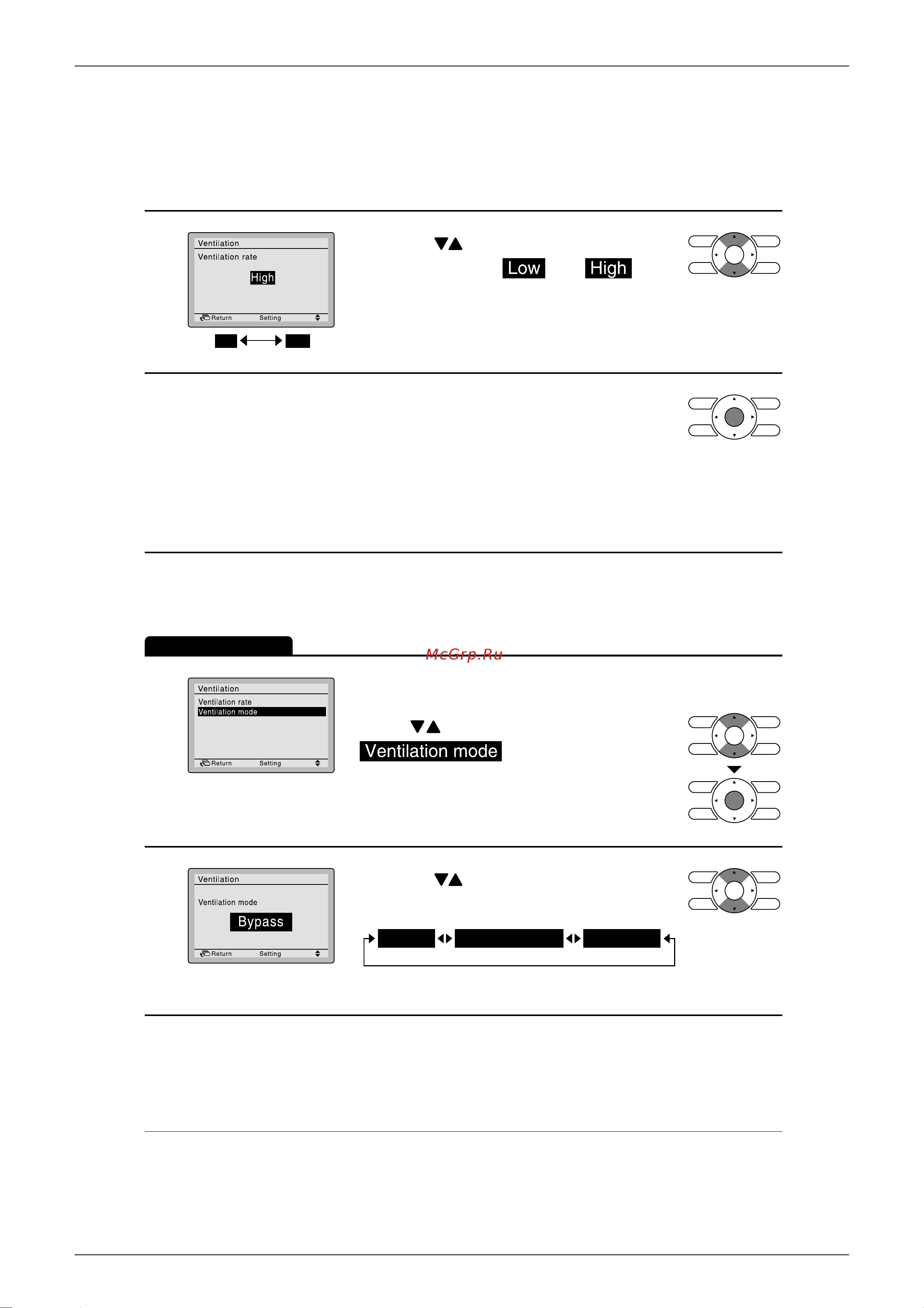

Changing ventilation mode
Operation Method
1
• Display the ventilation settings screen.
(See page 32.)
2
Bypass Heat exchange Automatic
* Only modes that can be set are displayed.
• Pressing buttons changes the
setting to in order and .
• Selecting the desired ventilation rate
and pressing Menu/Enter button selects
the setting and takes you back to the
basic screen.
(Pressing Cancel button takes you back to the
previous screen without changing the ventilation
rate.)
• Press buttons to select
on the ventilation
settings screen.
Press Menu/Enter button to display the
ventilation mode settings screen.
• Pressing buttons changes the
settings in order as shown below.
