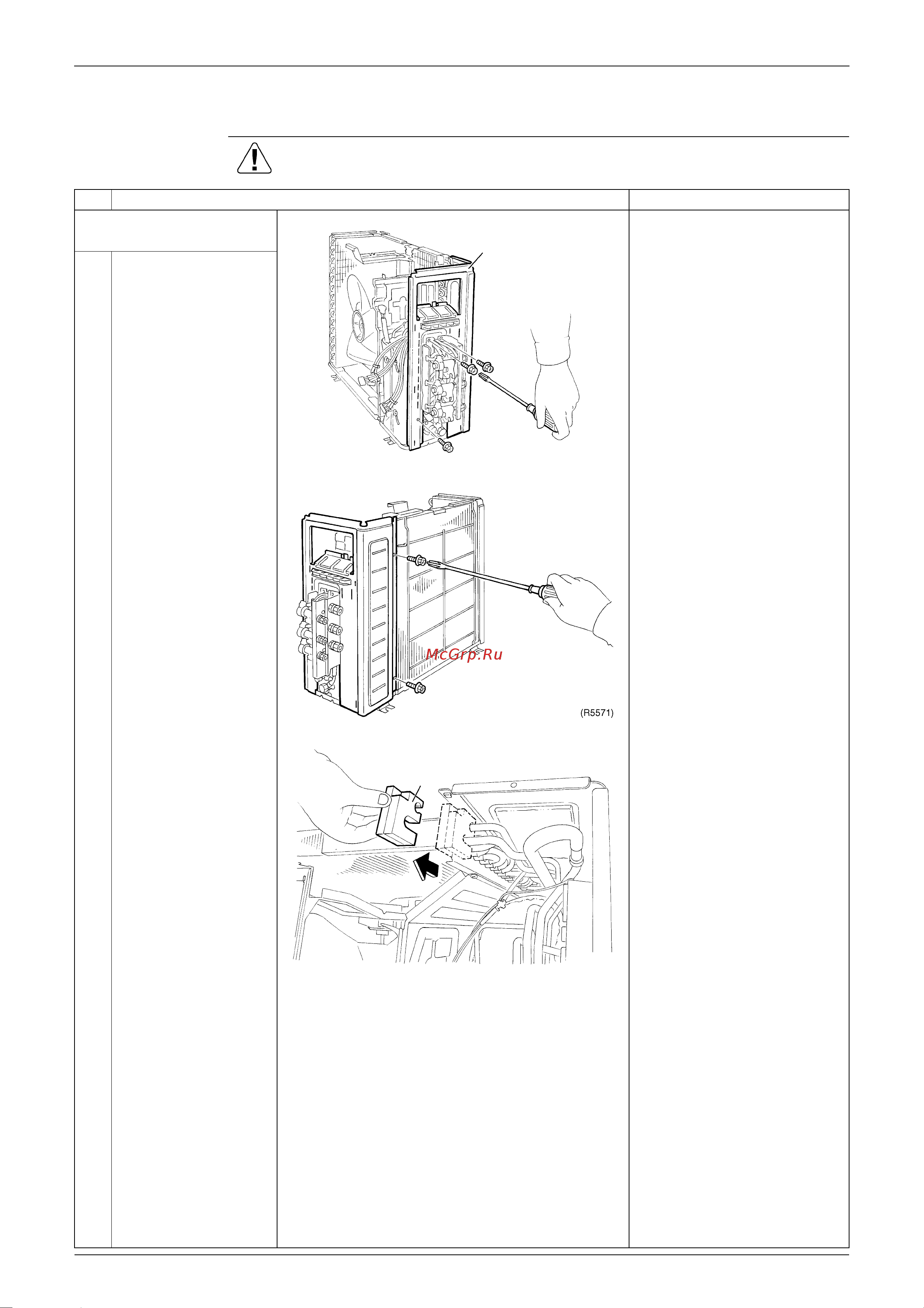

Outdoor Unit - 50~75 Class SiBE121021_C
390 Removal Procedure
1.5 Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the right side
panel.
Remove the outer panels
and plates.
Remove the electrical box.
1
Remove the 3 screws
of the right side panel.
2
Remove the 2 screws
on the back.
3
Remove the protection
rubber. There is a hook
on the back.
(R12915)
Right side panel
Protection rubber
(R5572)
