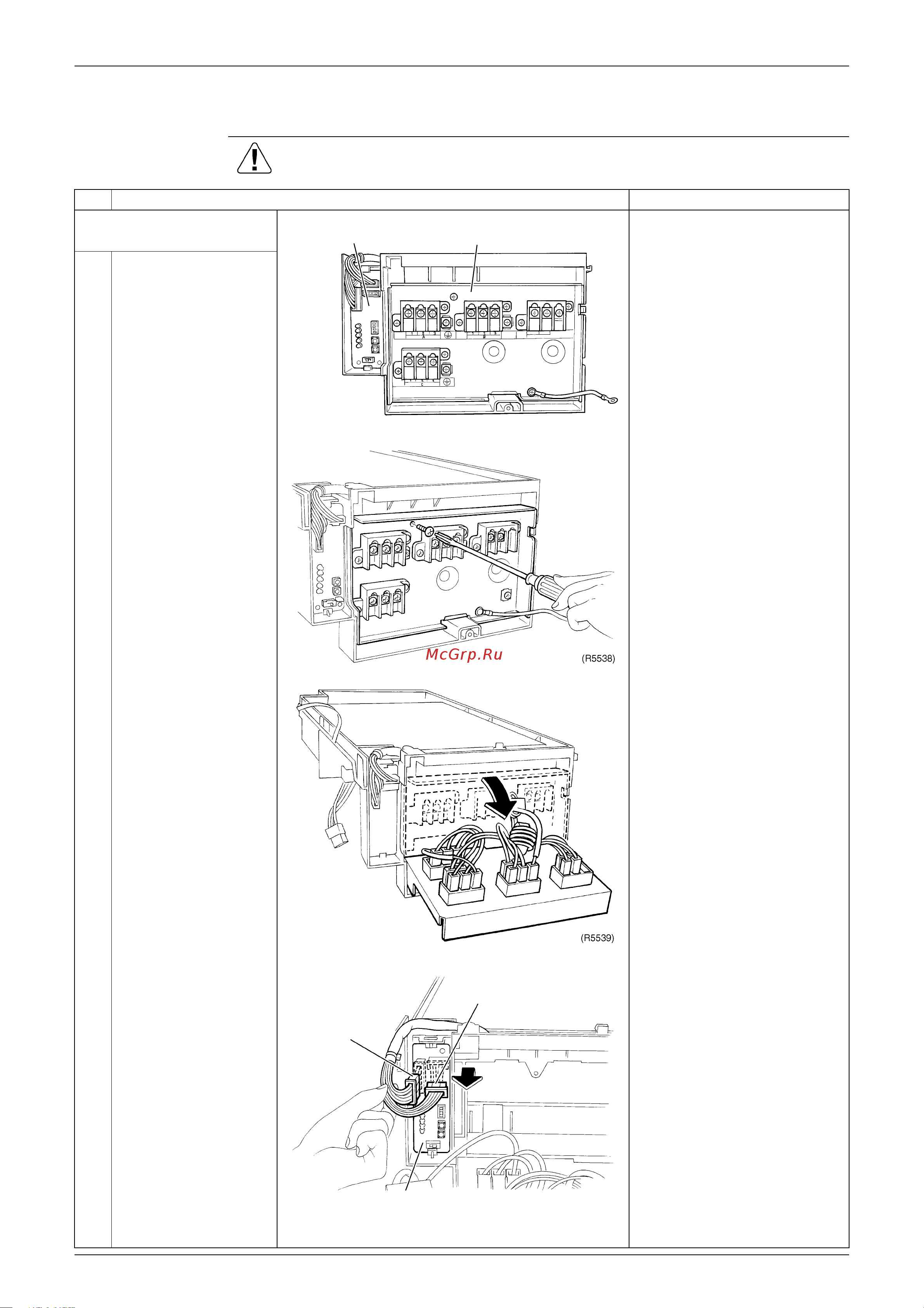

SiBE121021_C Outdoor Unit - 50~75 Class
Removal Procedure 383
1.3 Removal of PCBs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the service
monitor PCB.
1
External appearance
2
Remove the screw of
the terminal board and
open it.
3
Disconnect the
connectors [S52]
[S102] from the service
monitor PCB.
Service monitor PCB
Terminal board
(R5537)
(R5540)
Service monitor PCB
[S102]
[S52]
