Asus RS700A-E11-RS12U [105/186] Internal connectors

ASUS RS700A-E11 Series

4-11

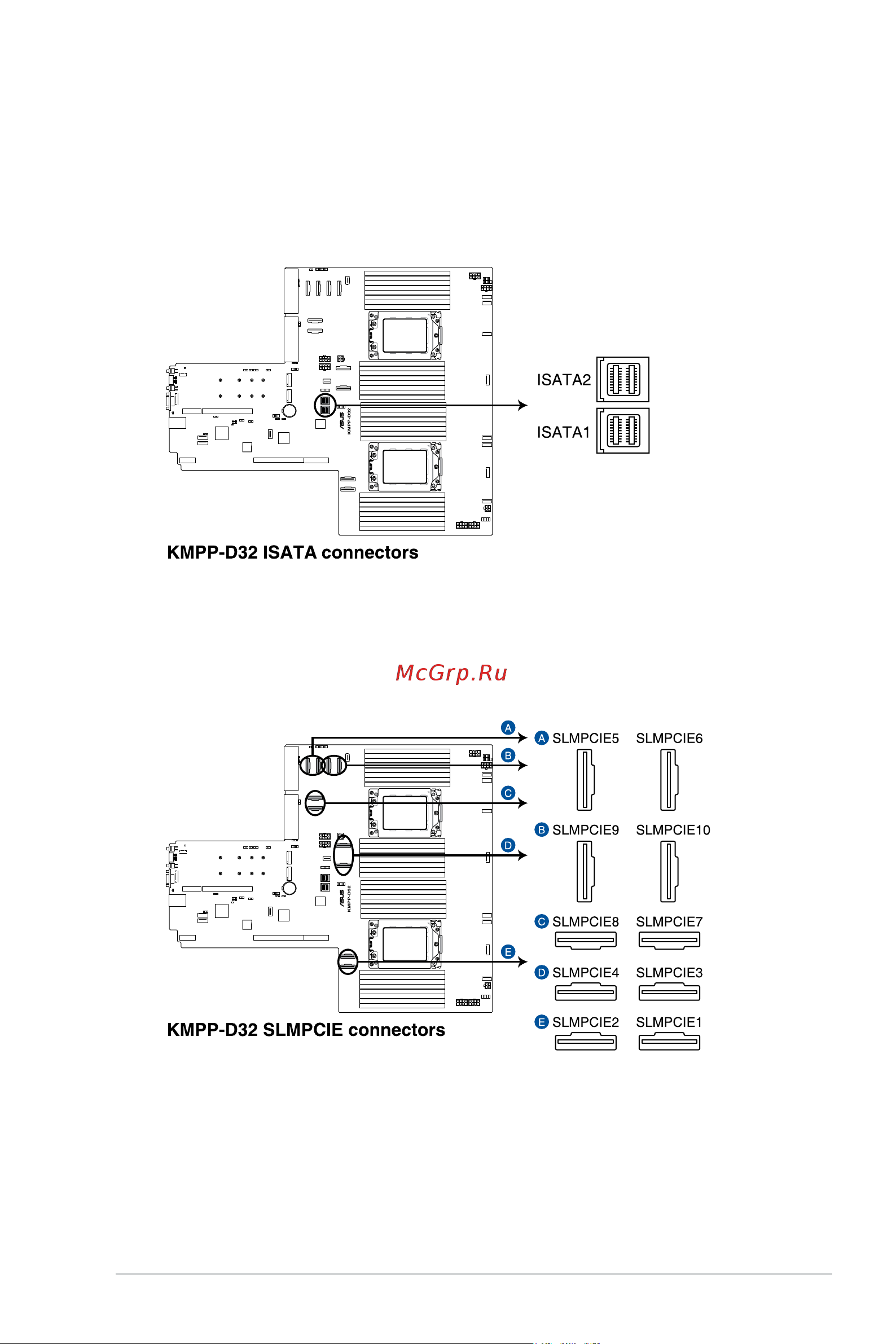

4.4 Internal connectors

2. Slim PCIe connector (SLIMPCIE1-10)

Connects the PCIe signal to the front riser card or NVMe port on the backplane.

1. Mini-SAS HD connector (ISATA1-2)

This motherboard comes with mini Serial Attached SCSI (SAS) HD connectors, the

storage technology that supports Serial ATA. Each connector supports up to four

devices.
