Asus RS700A-E11-RS12U [20/186] Storage device status led

Chapter 1: Product Introduction

1-10

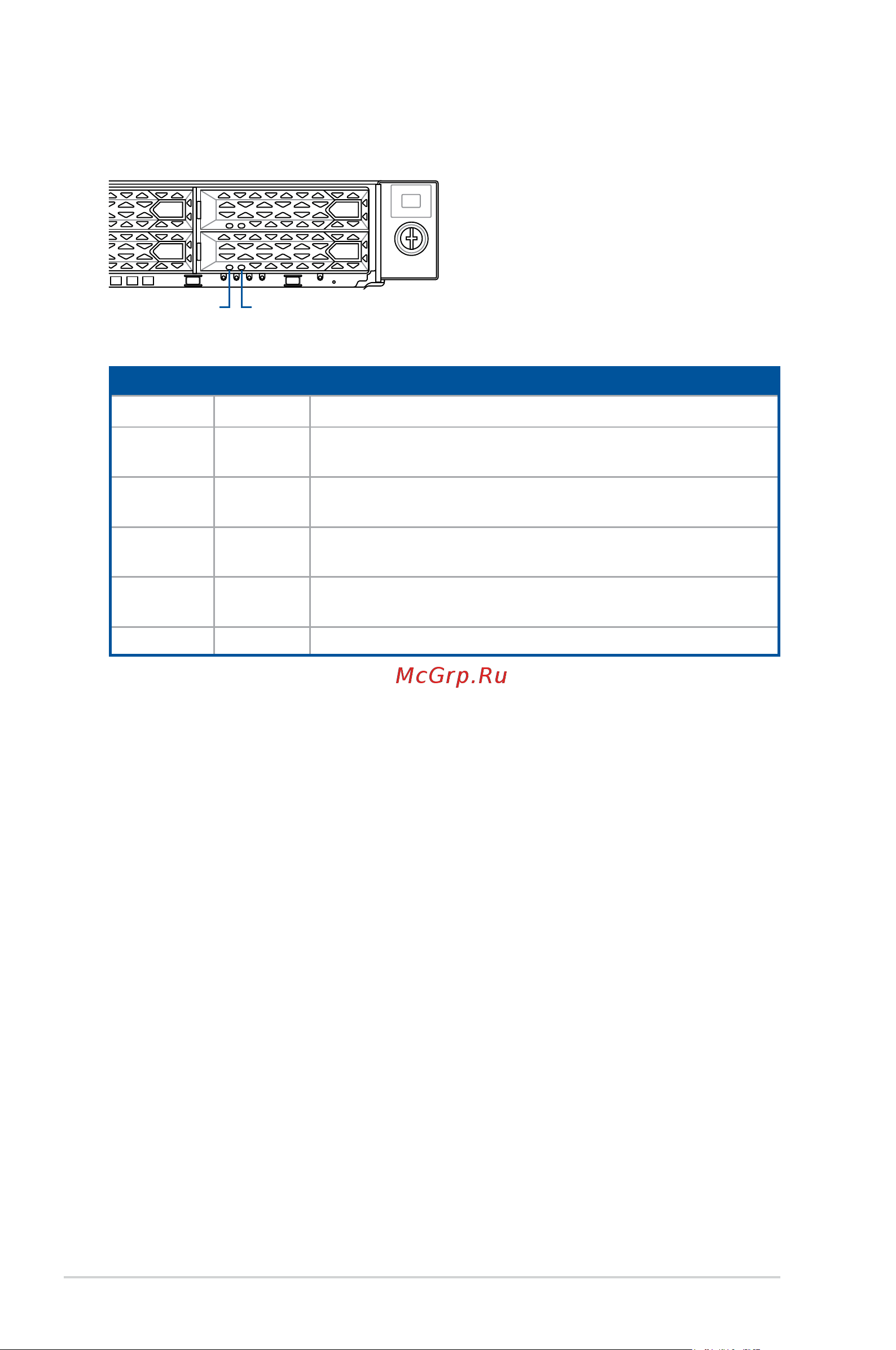

1.7.2 Storage device status LED

SATA/SAS Storage Device LED Description

GREEN ON SATA/SAS storage device power ON

RED ON

Storage device has failed and should be swapped immediately

(For RAID card)

GREEN/

RED

Blinking RAID rebuilding (For RAID card)

GREEN/

RED

Blinking Locate (For RAID card)

GREEN/

RED

OFF Storage device not found

GREEN Blinking Read/write data from/into the SATA/SAS storage device

Red LED Green LED
