SiBE12-728 Instruction
Operation Manual 111
Remote Controller

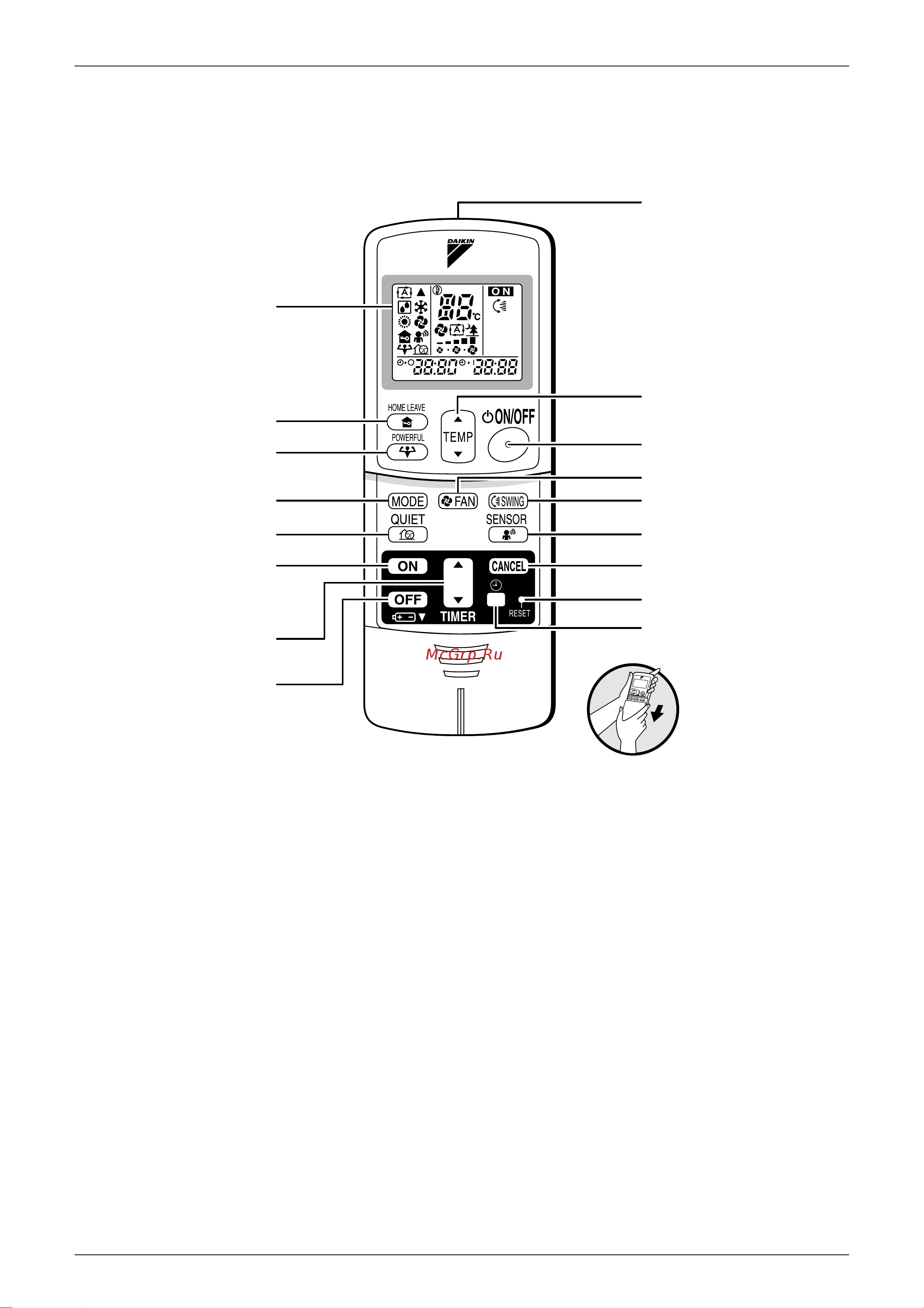

1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. HOME LEAVE button:
HOME LEAVE operation
4. POWERFUL button:
POWERFUL operation
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
•
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN)
8.
QUIET button:
OUTDOOR UNIT QUIET operation
9. FAN setting button:
• It selects the air flow rate setting.
10. SWING button
11.
SENSOR button: INTELLIGENT EYE operation
12. ON TIMER button
13. OFF TIMER button
14. TIMER Setting button:
• It changes the time setting.
15. TIMER CANCEL button:
• It cancels the timer setting.
16. CLOCK button
17. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
1
2
5
16
6
9
10
11
15
17
12
14
13
< ARC433B1, B2 >
3
4
7
8
