Instruction SiBE12-728
116 Operation Manual
Outdoor Unit
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filte
r
:
• These filters are attached to the inside of
the air filters.
3. Air inlet
4. Front panel
5. Supporting plate:
• The supporting plate is used to support the
front panel during maintenance.
6. Panel tab
7. Flap (horizontal blade)
8. Air outlet
9. Louvers (vertical blades):
• The louvers are inside of the air outlet.
10. Outlet vent panel
11. Display
12. Indoor Unit ON/OFF sw
itch:
•
Push this switch once to start operation.
Push once again to stop it.
• The operation mode refers to the following
table.
•
This switch is useful when the remote controller
is missing.
13. Room temperature sensor:
•
It senses the air temperature around the unit.
14. Operation lamp (green)
15. TIMER lamp (yellow)
16.
INTELLIGENT EYE lamp (green)
17. INTELLIGENT EYE sensor:
•
It detects the movements of people and auto-
matically switches between normal operation
and energy saving operation.
18. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........
beep
•
Operation stop ..............beeeeep

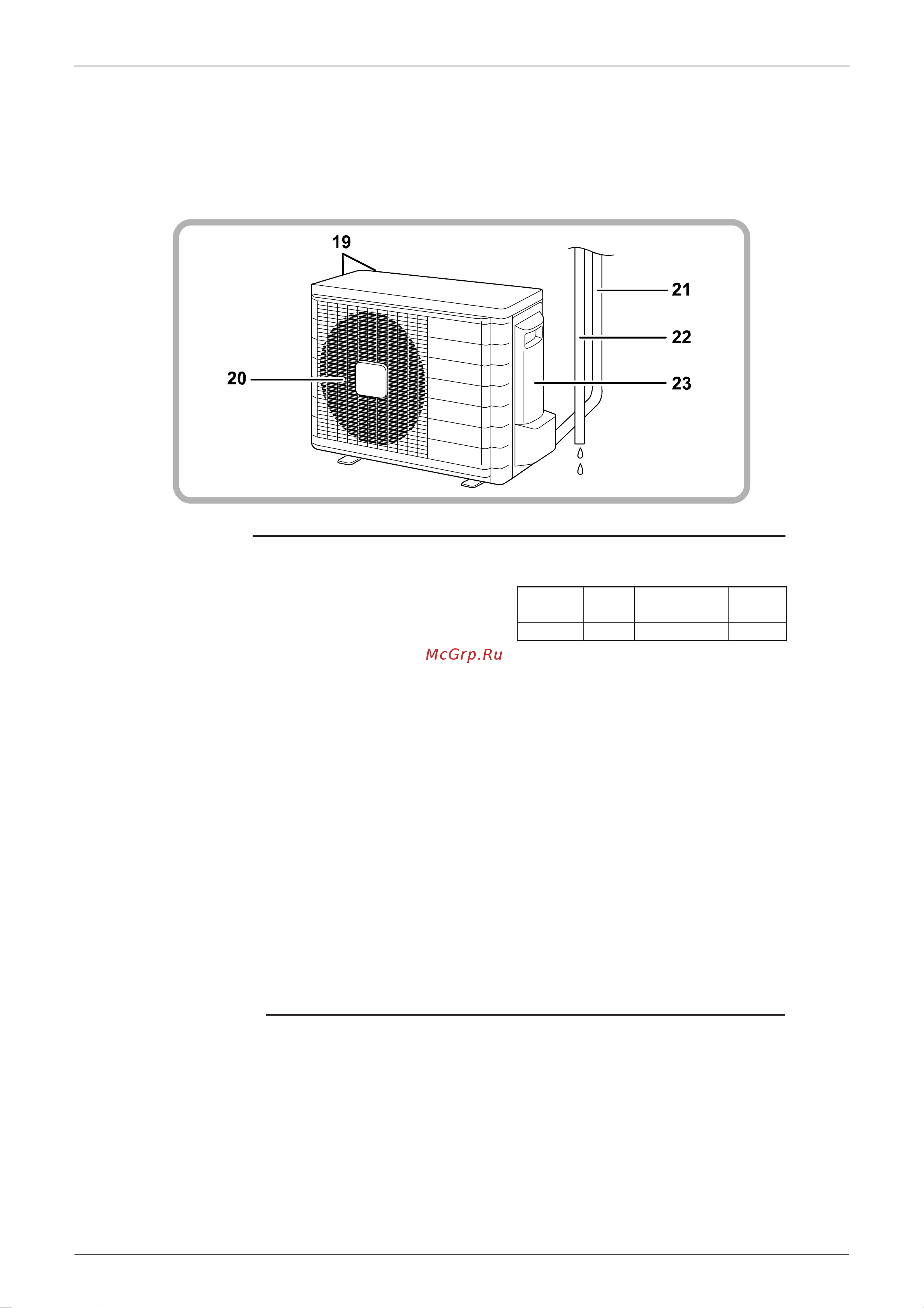

Outdoor Unit
19. Air inlet:
(Back and side)
20. Air outlet
21. Refrigerant piping and inter-unit cable
22. Drain hose
23. Earth terminal:
• It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
Mode
Tempera-
ture setting
Air flow
rate
F(C)TXG
AUTO 25°C AUTO
