SiBE12-728 Outdoor Unit

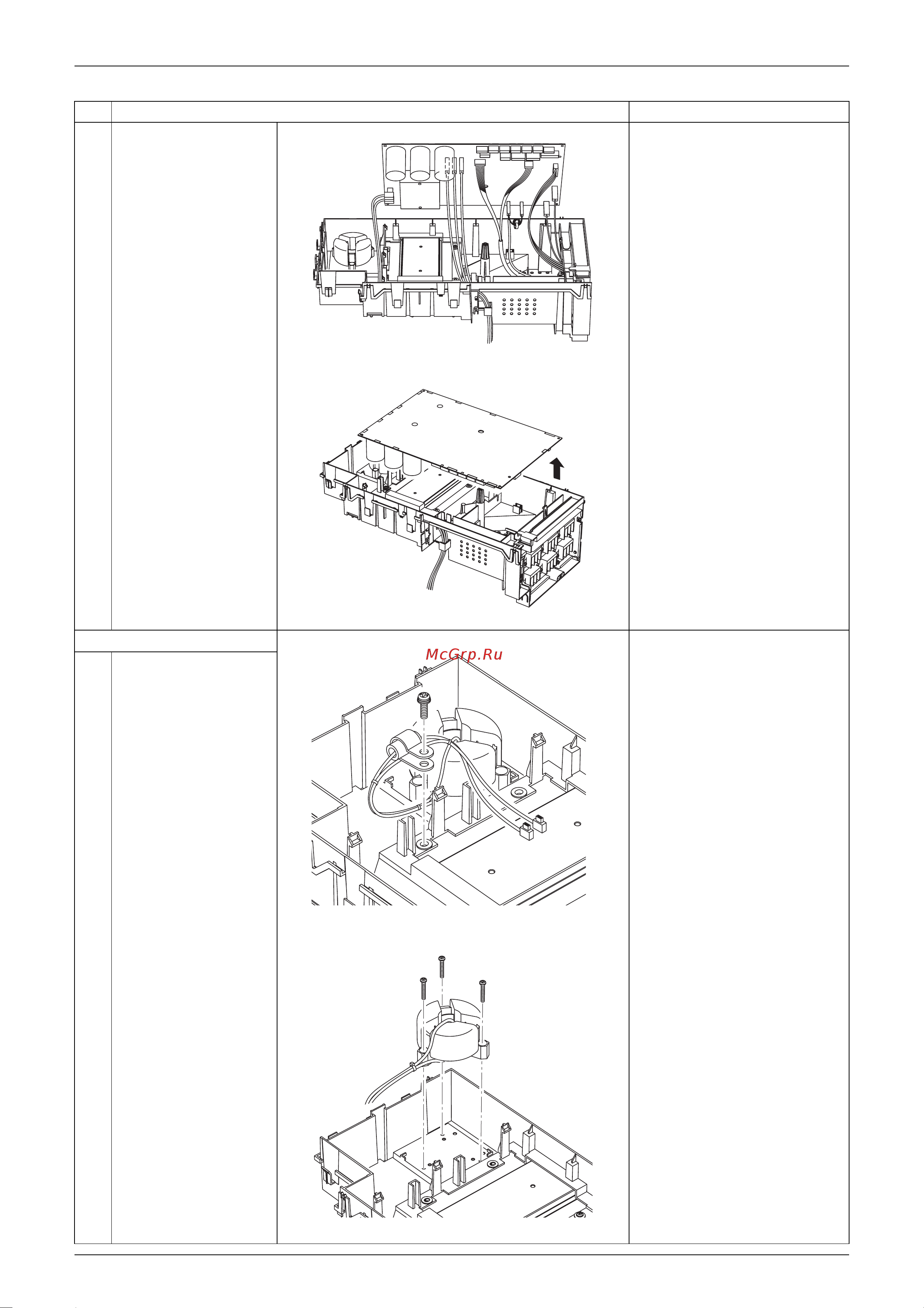

Removal Procedure 307
5 Disconnect the
connectors one by one
starting from your side.
z
Connectors S33 & S71:
For inverter PCB
z
Connectors S31 & S32:
For SPM PCB
z
Connectors S51 & S101:
For display PCB
z
Connector S10: For relay
PCB
z
Connectors H1/H2: For DB
(diode bridge), power wire
harnesses AC1 (red) and
AC2 (black)
6 Remove the control
PCB.
2. Removing the reactor
1 Remove the screw.
2 Remove the 3 screws
and lift the reactor
upward to remove it.
Step Procedure Points
(R6431)
(R6432)
(R6433)
(R6434)
