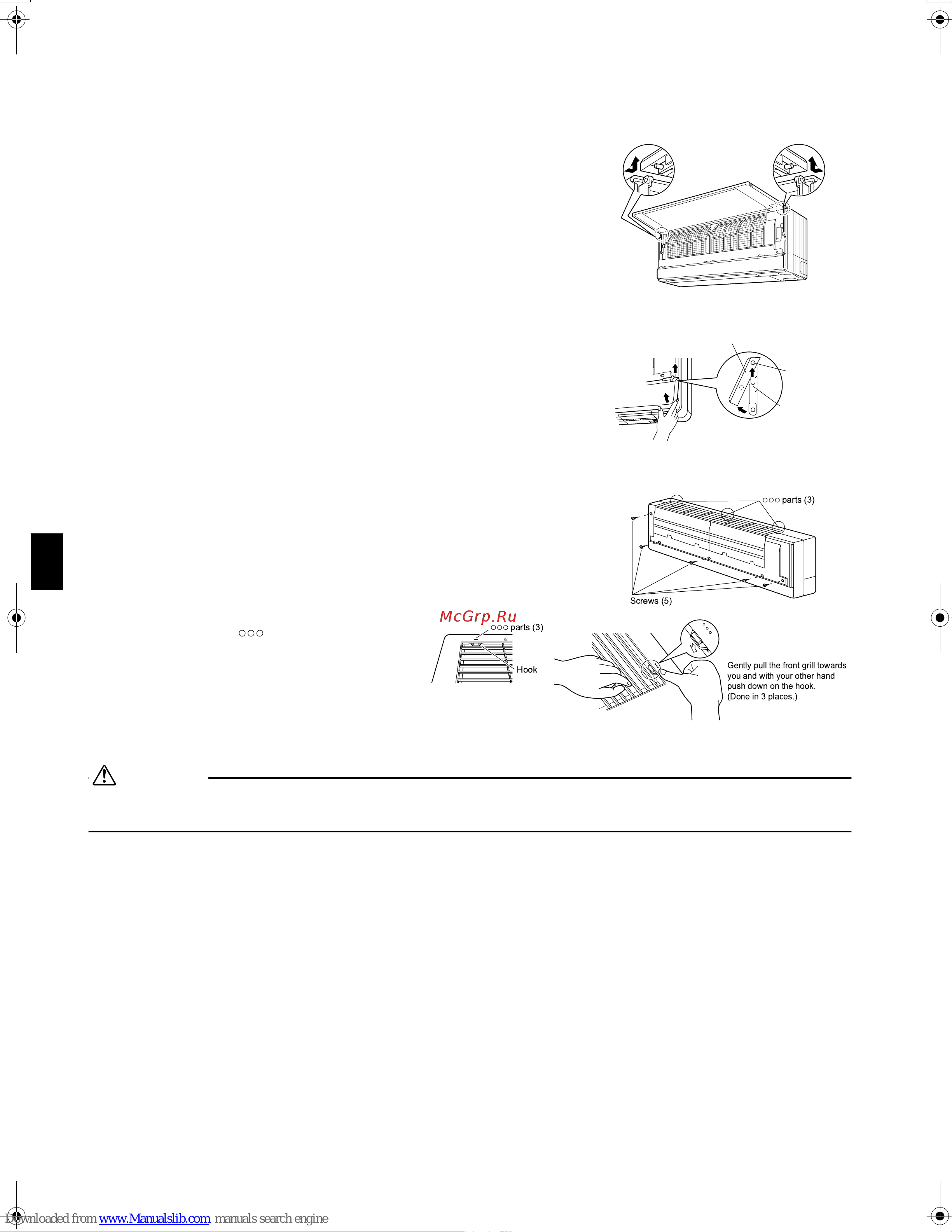

Installation Tips
1.
How to remove and attach the front panel
• Removing the panel
1) Place one finger on the panel tab on either side of the front panel and
open it until it is horizontal.
2) Sliding the front panel to the left will cause the revolving axis on the right
to come off. The left revolving axis comes off by sliding it to the right.
• Attaching the panel
1) Place the revolving axis on either side of the front panel in the holes and
close the front panel slowly. (Press both sides of the front panel.)
2.
How to remove and attach the outlet vent panel
• Removing the outlet vent panel
1) Slightly pull the outlet vent panel towards you.
2) Pull it up and remove the fixed axis on either side.
• Attaching the outlet vent panel
1)
Insert the fixed axles located on either side of the outlet vent panel into the
axle bearings in a hooking motion from above, and slowly close the panel.
3.
How to remove and attach the front grill
• Removing the front grill
1) Remove the front panel and the outlet vent panel.
2) Remove the 5 screws in the front grill.
3) Disengage the 3 hooks in the front grill.
(Look for the .)
• Attaching the front grill
1) Attach the front grill horizontally and attach
the 3 hooks firmly into place.
2) Insert the 5 screws.
3) Attach the outlet vent panel and the front
panel.
CAUTION
When removing or attaching the front grill, do not touch any electric parts.
Any static electricity created through contact may cause malfunctions.
1
2
Outlet vent panel
Fixed axis
Axis bearing
Outlet
vent panel
Screws (5)
parts (3)
H
ook
parts (3)
Gently pull the front grill towards
you and with your other hand
push down on the hook.
(Done in 3 places.)
01_EN_3P166464-1.fm Page 3 Saturday, September 17, 2005 11:08 AM
