■English 4
4.

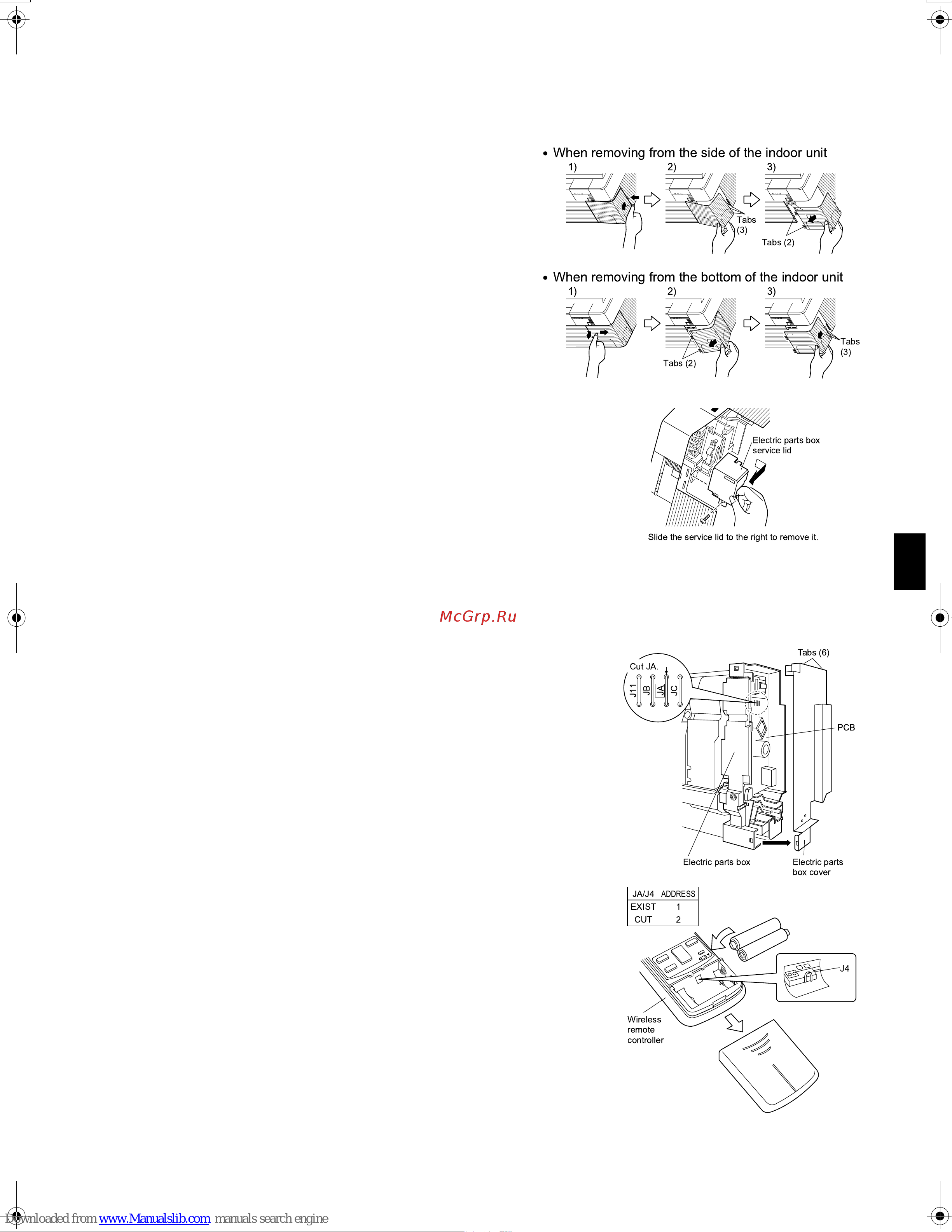

How to open the indoor unit service lid
• Opening the lid
1) Push and slide the service lid in the direction of the arrow.
2) Disengage the tabs.
3) Slide the other tab in the direction of the arrow.
4) Remove the screw from the bottom of the electric parts box and remove
the electric parts box service lid.
• Attaching the lid
1) Attach the electric parts box service lid.
2) Set the tab of the service lid and install the lid.
5.
How to set the different addresses
1) When two indoor units are installed in one room, the two wireless remote
controllers can be set for different addresses.
6.
PCB in the indoor unit
1) Remove the front panel.
2) Remove the front grill. (5 screws)
3) Remove the electric parts box cover. (6 tabs)
4) Cut the address jumper (JA) on the indoor unit circuit board.
7.
Wireless remote controller
1) Cut the jumper J4.
1) 2) 3)
1) 2) 3)
Tabs (2)
Tabs
(3)
When removing from the side of the indoor unit
When removing from the bottom of the indoor unit
Tabs (2)
Tabs
(3)
E
lectric parts box
service lid
Slide the service lid to the right to remove it.
J11
JB
JA
JC
Cut JA.
Tabs (6)
PCB
Electric parts
box cover
Electric parts box
J4
JA/J4
ADDRESS
EXIST 1
CUT 2
Wireless
remote
controller
01_EN_3P166464-1.fm Page 4 Saturday, September 17, 2005 11:08 AM
