5 ■English
Indoor Unit
Installation Drawings
Intelligent-Eye Sensor
CAUTION
1) Do not hit or violently push the Intelligent-eye sensor. This can lead to damage and malfunction.
2) Do not place large objects near the sensor. Also keep heating units or humidifiers outside the sensor’s detection area.
Use when
opening the
front panel and
securing.
Supporting plate
Supporting plate
Cut thermal insulation
pipe to an appropriate
length and wrap it with
tape, making sure that no
gap is left in the insulation
pipe’s cut line.
Caulk pipe hole gap
with putty.
30mm or more
from ceiling
Front panel
50mm or more from walls
(on both sides)
Outlet vent panel
Screws (Field supply)
The mounting plate should be installed
on a wall which can support the weight
of the indoor unit.
A Mounting plate

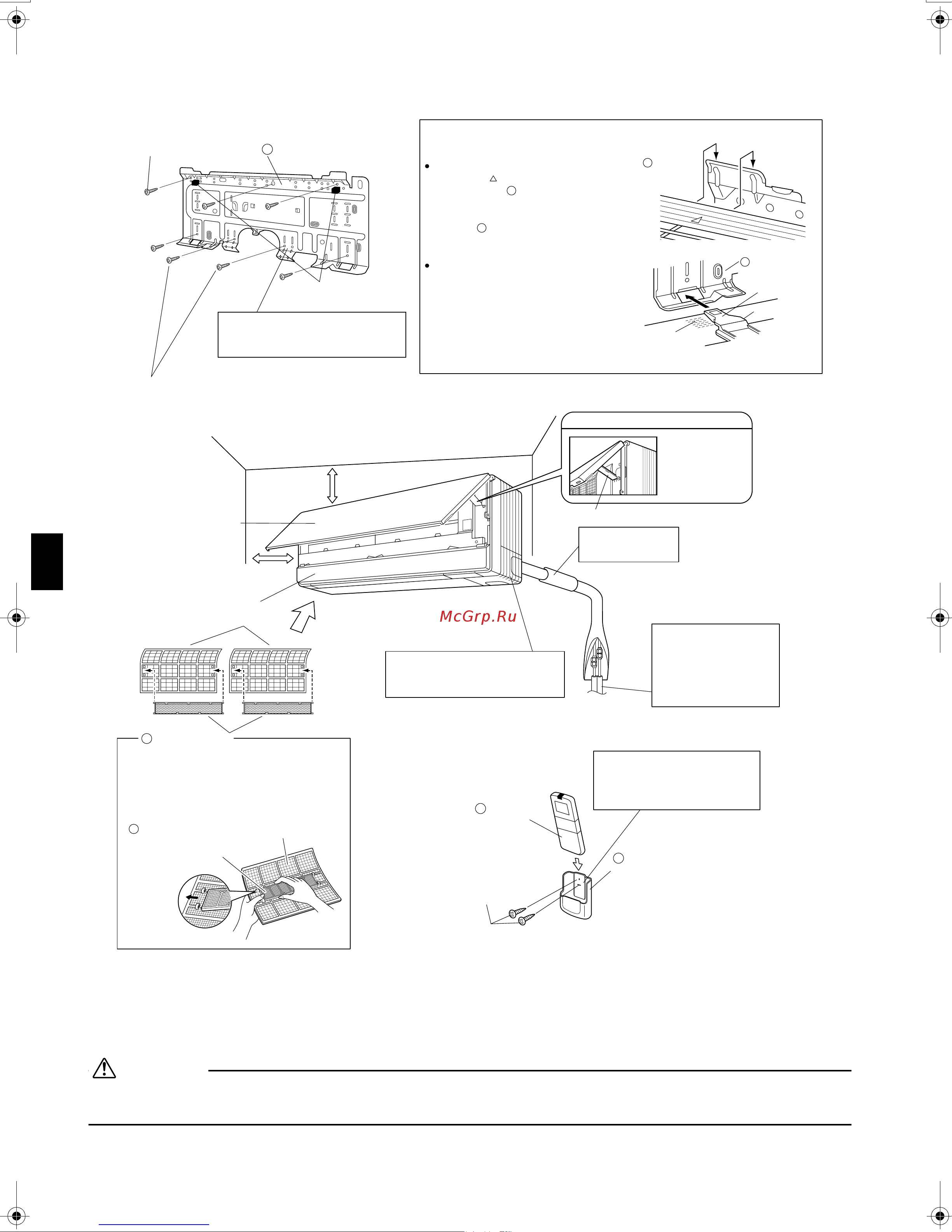

Installing and removing the indoor unit
Attaching the indoor unit
1) Using the 2 marks on top of the indoor
unit, attach the mounting plate hooks
onto the indoor unit.
2) Attach the tabs on the bottom frame firmly
onto the mounting plate.
(2 on either side)
Removing the indoor unit
1) Lift the marked parts on the bottom of the
front grill, pull the front grill towards
yourself and disengage the tabs on the
bottom of the frame.
2) Lift up the indoor unit and remove it from
the top of the mounting plate.
See 4. How to open the indoor unit
service lid on p4 of the Installation
Tips for details.
Titanium Apatite
Photocatalytic Air-Purifying Filter
Install Titanium Apatite Photocatalytic
Air-Purifying Filter on air filter
Air filters
B
Air filter
B
Titanium Apatite
Photocatalytic
Air-Purifying Filter
C
Screws
(Field supply)
D
Remote
controller
holder
Wireless
remote
controller
Before screwing the remote
controller holder to the wall, make
sure that control signals are
properly received by indoor unit.
Appearance of the indoor unit may
differ from some models.
A Mounting
plate
Marked
part (rear)
Bottom frame
Ta b
A Mounting
plate
A
A
Secure the installation plate to the wall on
the side where the bottom frame and the
installation plate are secured to each other.
Cushioning material
(do not remove)
