Field Setting for SkyAir Indoor Unit SiBE18-821
160 Test Operation
Address Setting
(It is Factory Set
to “1”)

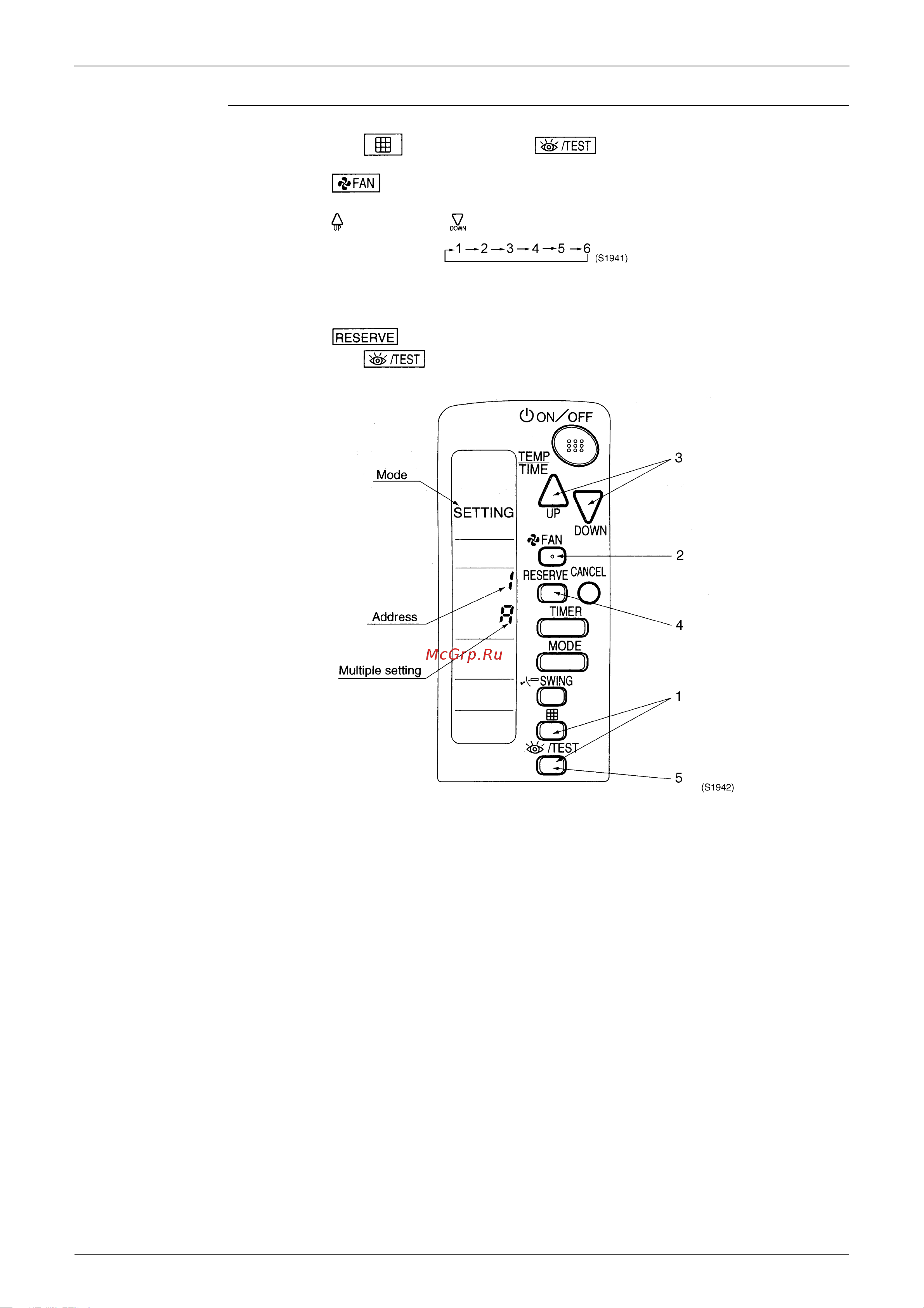

<Setting from the remote controller>
1. Hold down the “ ” button and the “ ” button for at least 4 seconds, to get
the FIELD SET MODE. (Indicated in the display area in the figure at below).
2. Press the “ ” button and select a multiple setting (A/b). Each time the button is
pressed the display switches between “A” and “b”.
3. Press the “ ” button and “ ” button to set the address.
Address can be set from 1 to 6, but set it to 1 ~ 3 and to same address as the receiver. (The
receiver does not work with address 4 ~ 6.)
4. Press the “ ” button to enter the setting.
5. Hold down the “ ” button for at least 1 second to quit the FIELD SET MODE and
return to the normal display.
