SiBE18-821 Field Setting for SkyAir Indoor Unit
Test Operation 159

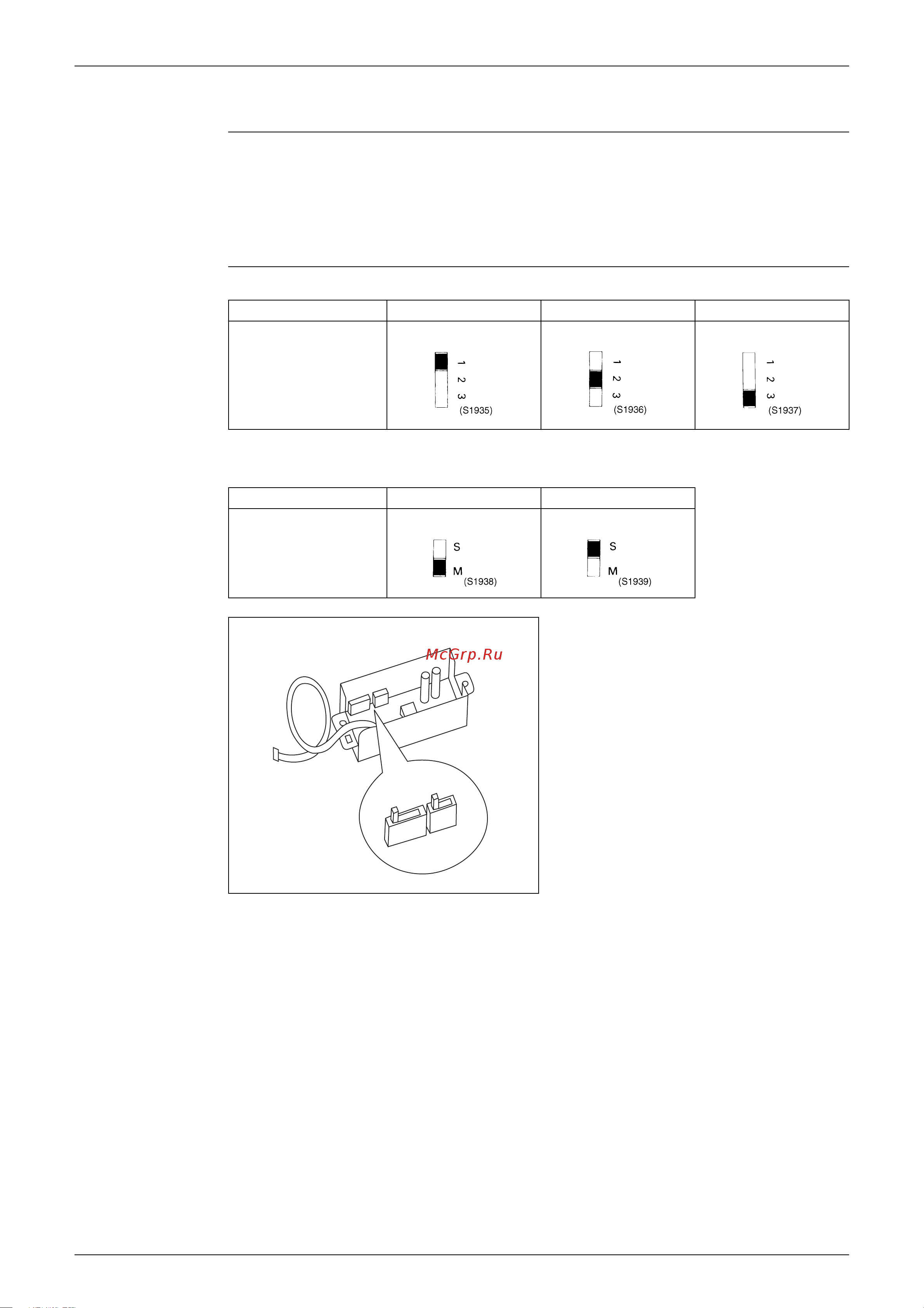

4.5.6 Wireless Setting (Address and MAIN/SUB Setting)
Explanation If several wireless remote controller units are used together in the same room (including the
case where both group control and individual remote controller control are used together), be
sure to set the addresses for the receiver and wireless remote controller. (For group control, see
the attached installation manual for the indoor unit.) If using together with a wired remote
controller, you have to change the main/sub setting or the receiver.
Receiver Setting Set the wireless address switch (SS2) on the transmitter board according to the table below.
When using both a wired and a wireless remote controller for 1 indoor unit, the wired controller
should be set to MAIN. Therefore, set the MAIN/SUB switch (SS1) of the transmitter board to
SUB.
After completing setting, seal off the opening of the address switch and the MAIN/SUB switch
with the attached sealing pad.
Unit No. No.1 No.2 No.3
Wireless Address
Switch (SS2)
MAIN SUB
MAIN/SUB Switch
(SS1)
123 MS
SS2 SS1
(S1940)
