SiBE18-821 Troubleshooting for Outdoor Unit
Troubleshooting 319

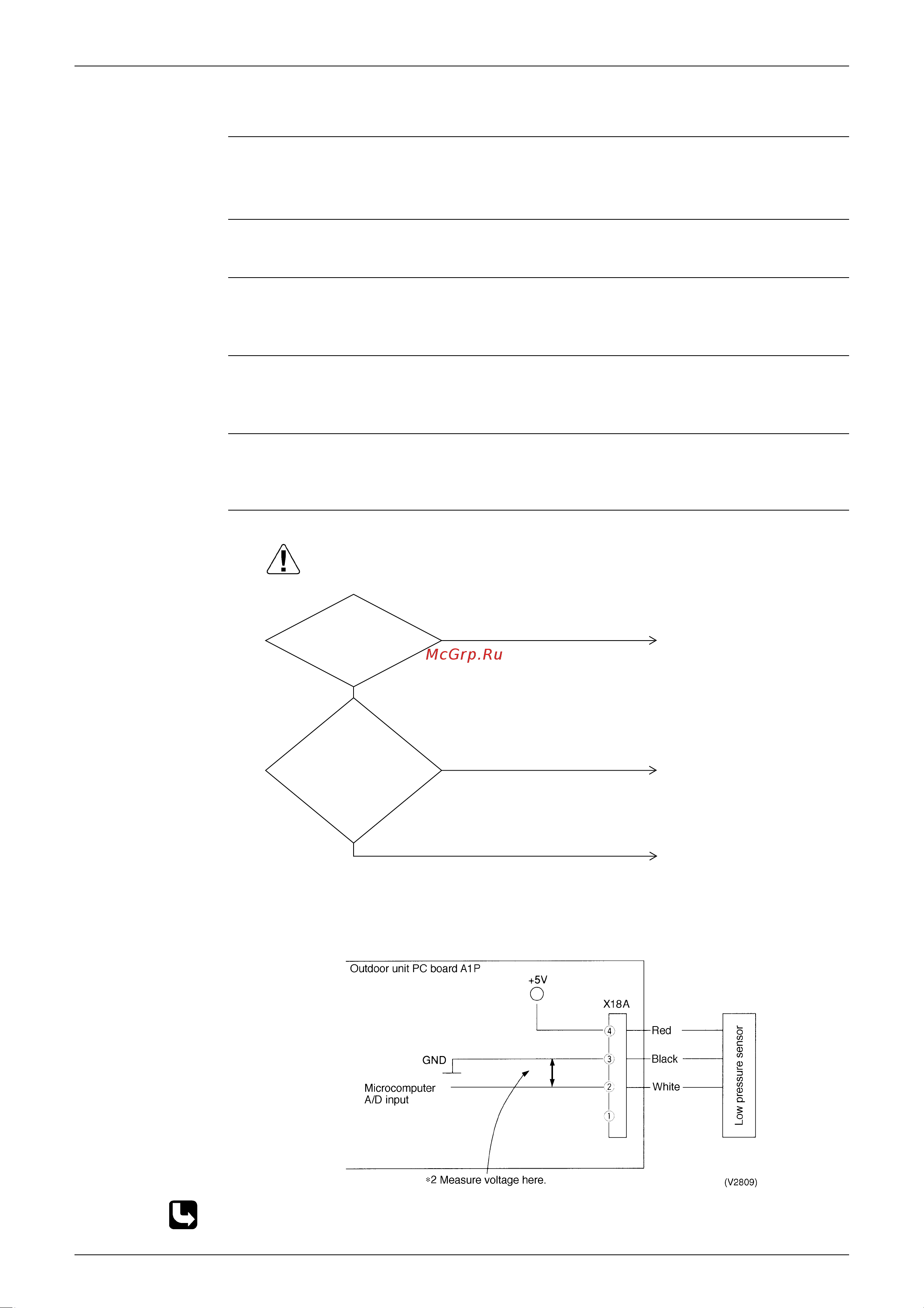

7.16 Malfunction of Low Pressure Sensor
Remote
Controller
Display
JC
Applicable
Models
AII outdoor unit models
Method of
Malfunction
Detection
Malfunction is detected from pressure detected by low pressure sensor.
Malfunction
Decision
Conditions
When the low pressure sensor is short circuit or open circuit.
Supposed
Causes
Defect of low pressure sensor
Connection of high pressure sensor with wrong connection.
Defect of outdoor unit PCB.
Troubleshooting
∗
1: Voltage measurement point
∗
2: Refer to “Pressure Sensor”, pressure/voltage characteristics table on P351.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
The
low pressure
sensor is connected to
X18A (blue) of outdoor
unit PC board
(A1P).
The
relationship
between the ∗1 VL
and low pressure is
normal (see ∗2) when voltage is
measured between X18A pins
(2) and (3) of outdoor unit
PC board (A1P)
(see ∗1).
Replace the low pressure
sensor.
(Q0565)
Connect low pressure
sensor property and
restart system.
NO
Replace outdoor unit PC
board (A1P).
YES
YES
NO
