Test Operation and Field Setting for RA Indoor Unit SiBE18-821
168 Test Operation

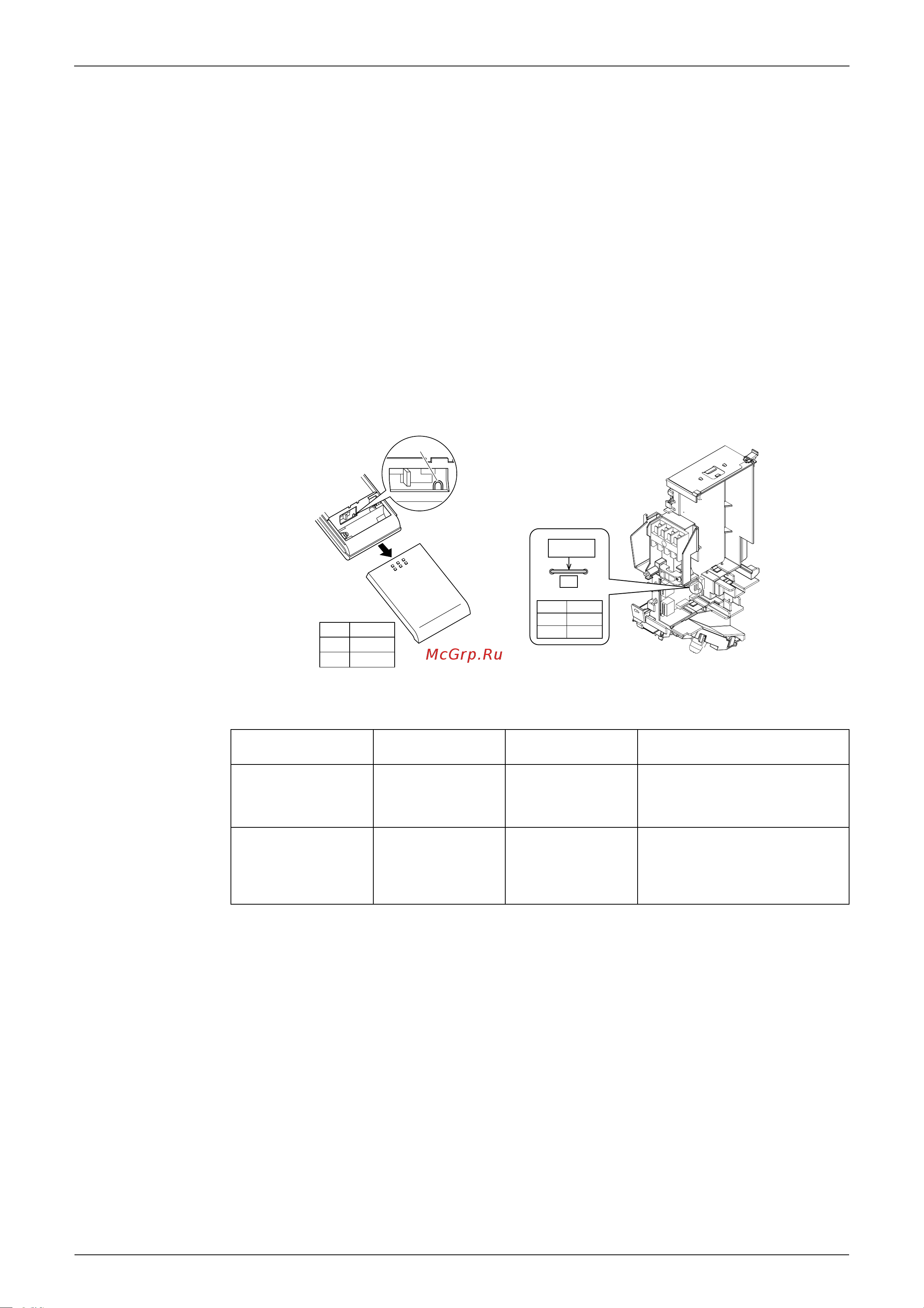

5.2 Jumper Settings
5.2.1 When Two Units are Installed in One Room
When two indoor units are installed in one room, the two wireless remote controllers can be set
for different addresses.
In case of FTXS20-50G
How to set the different addresses
Control PCB of the indoor unit
(1) Remove the front grille. (2 screws)
(2) Remove the electrical box (1 screw).
(3) Remove the drip proof plate. (4 tabs)
(4) Cut the address jumper JA on the control PCB.
Wireless remote controller
(1) Slide the front cover and take it off.
(2) Cut the address jumper J4.
5.2.2 Jumper Setting
ADDRESS
JA
ADDRESS
JA
EXIST
1
CUT 2
(R8249)
J4
J4
ADRESS
EXIST
1
CUT 2
(R8250)
Jumper
(On indoor PCB)
Function When connected
(factory set)
When cut
JC Power failure
recovery function
Auto-restart Unit does not resume operation
after recovering from a power
failure. Timer ON-OFF settings
are cleared.
JB Fan speed setting
when compressor is
OFF on thermostat.
(effective only at
cooling operation)
Fan speed setting ;
Remote controller
setting
Fan rpm is set to “0”
<Fan stop>
