Daikin RKS50F2V1B [17/31] Capacity tables

• Outdoor Units • R-410A • RKS-F2V1B

• Split Sky Air • Outdoor Units

5 Capacity tables

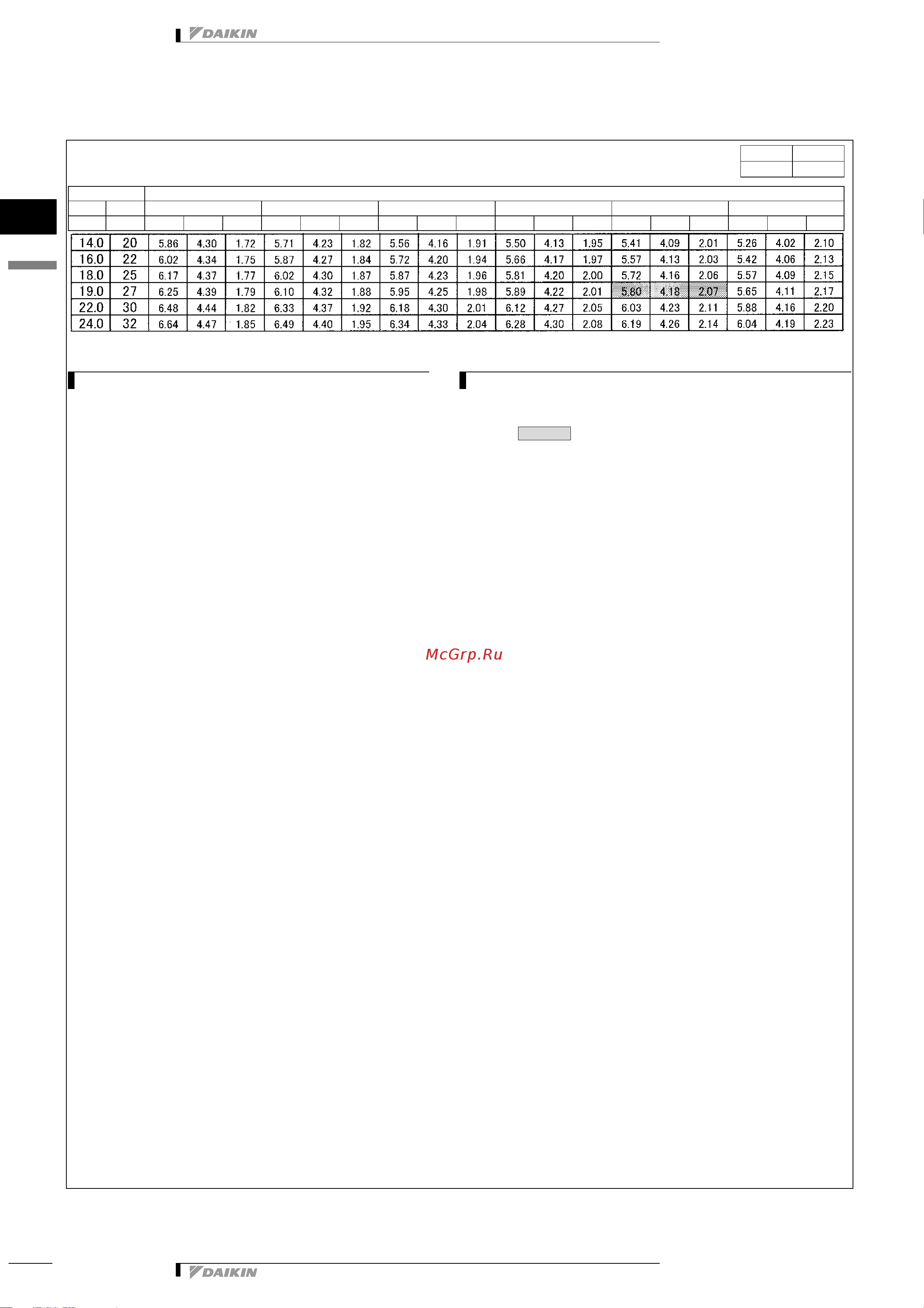

5 - 1 Cooling capacity tables

FFQ60B8V1B+RKS60F2V1B

Cooling 230V [50Hz]

AFR 15.0

BF 0.11

Indoor

Outdoor temperature (°CDB)

EWB EDB 20 25 30 32 35 40

(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

3D041027

SYMBOLS

AFR: Air flow rate (m

/min)

BF: Bypass factor

EWB: Entering wet bulb temp. (°C)

EDB: Entering dry bulb temp. (°C)

TC: Total capacity (kW)

SHC: Sensible heating capacity (kW)

PI: Power input (kW)

NOTES

1 Ratings shown are net capacities which include a deduction for

indoor fan motor heat

2 shows nominal (rated) capacities and power input.

3 TC, PI and SHC must be calculated by interpolation using the

figures in the above tables. (Figures out of the tables should not be

used for calculation.)

4 SHC is based on each EWB and EDB

SHC* = SHC correction for other dry bulb

=0.02*AFR(m3/min.)*(1-BF)*(DB*-EDB)

Add SHC* to SHC.

5 Capacities are based on following conditions:

Corresponding refrigerant piping length: 7.5 m

Level difference: 0 m

6 Air flow rate (AFR) and Bypass factor (BF) are taburated above.
