• Split Sky Air • Outdoor Units
20
• Outdoor Units • R-410A • RKS-F2V1B

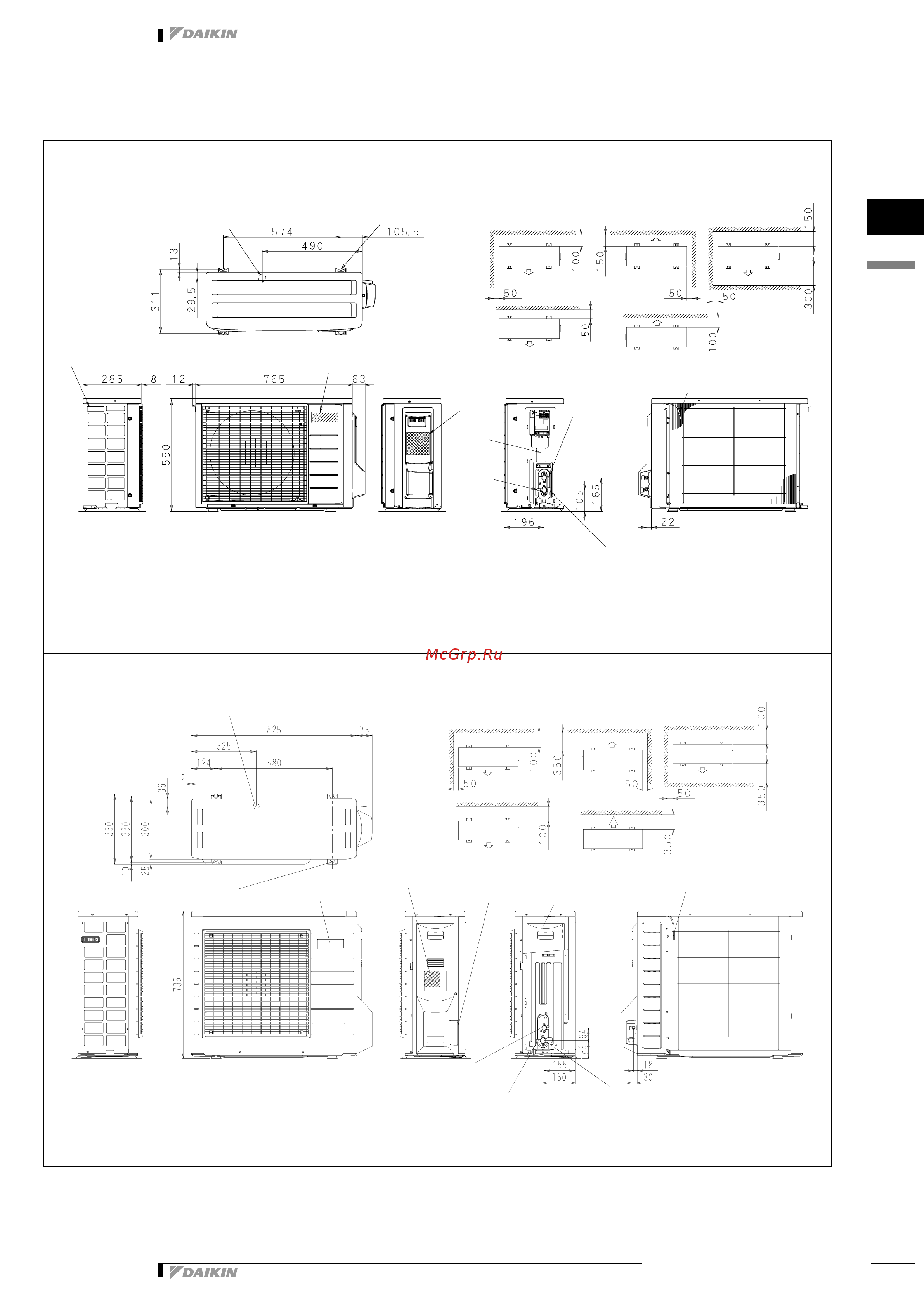

6 Dimensional drawing & centre of gravity
6 - 1 Dimensional drawing
3D055546
RKS25-35F2V1B
unit (mm)
Minimum space for air passage
Wall height on air outlet side =
less than 1200
Drain outlet
(I.D. J 15.9 hose for connection)
Handle
Wiring inlet
Gas stop valve
(J 12.7 CuT)
Liquid stop valve
(J 6.4 CuT)
Service port
Outdoor air thermistor
Brand name label
4 x holes for anchor bolts (M8
or M10)
Manufacturer’s
label
In case of removing
stop valve cover
3D051657D
RKS50-60 FE
unit (mm)
Minimum space for air passage
Wall height on air outlet side =
less than 1200
Drain outlet
(I.D. J 15.9 hose for connection)
4 x holes for anchor bolts (M8 or
M10)
Name plate
Terminal strip with earth
terminal
Wiring inlet
Gas stop valve
(J 12.7 CuT)
Liquid stop valve
(J 6.4 CuT)
Service port
Outdoor air temperature
thermistor
Brand name label
In case of removing stop valve
cover
