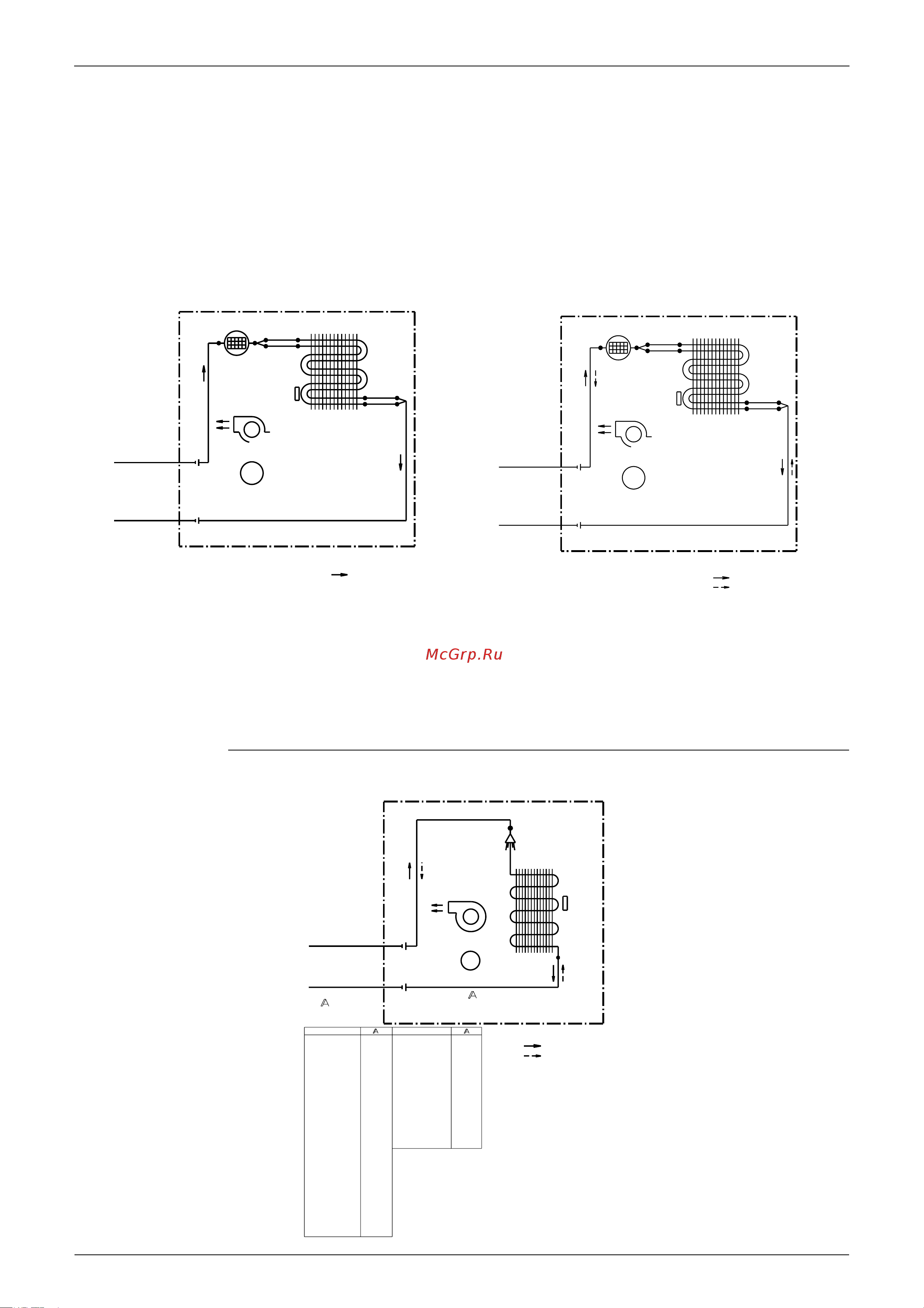

Piping Diagrams Si12-710
160 Appendix
1. Piping Diagrams
1.1 Indoor Units
1.1.1 Wall Mounted Type
1.1.2 Duct Connected Type
FDKS25/35EAVMB, FDKS25/35CAVMB, FDXS25/35CVMA, CDXS25/35EAVMA
FTKS25/35DVM FTXS25/35EVMA
FIELD PIPING
FIELD PIPING
(9.5CuT)
(6.4CuT)
7.9CuT
MAFFLER ASSY
CROSS FLOW FAN
FAN MOTOR
THERMISTOR
ON HEAT EXCH.
INDOOR UNIT
M
6.4CuT
7.0CuT
9.5CuT
HEAT EXCHANGER
REFRIGERANT FLOW
COOLING
6.4CuT
6.4CuT
4D050757A
FIELD PIPING
FIELD PIPING
(
9.5CuT
)
(
6.4CuT
)
7.9CuT
MAFFLER ASSY
CROSS FLOW FAN
FAN MOTOR
ON HEAT EXCH.
THERMISTOR
INDOOR UNIT
M
6.4CuT
7.0CuT
9.5CuT
HEAT EXCHANGER
REFRIGERANT FLOW
HEATING
COOLING
6.4CuT
6.4CuT
4D047912F
FIELD PIPING
FIELD PIPING
(
CuT
)
(
6.4CuT
)
INDOOR UNIT
SIROCCO FAN
(
6.4CuT
)
(
CuT
)
FAN MOTOR
M
REFRIGERANT FLOW
HEAT EXCHANGER
COOLING
HEATING
THERMISTOR
ON HEAT
EXCH.
CDKS35CVMB
CDXS25CVMA
CDXS35CVMA
FDXS25CVMB
FDXS35CVMB
FDXS25EAVMB
FDXS35EAVMB
CDKS25CVMA
CDKS50CVMA
CDKS60CVMA
CDXS50DVMT
CDXS60DVMT
CDKS50DVMT
CDKS60DVMT
CDKS35CVMA
CDXS25DVMT
CDXS35DVMT
CDKS25DVMT
CDKS35DVMT
CDXS35CVMB
CDKS25CVMB
CDXS25CVMB
CDKS60CVMB
CDXS50CVMA
CDXS60CVMA
CDXS60CVMB
CDKS50CVMB
CDXS50CVMB
12.7
9.5
FDKS25CVMB
FDKS35CVMB
FDXS25CAVMB
FDXS35CAVMB
FDKS25CAVMB
FDKS35CAVMB
FDKS25EAVMB
FDKS35EAVMB
FDXS50CVMB
FDXS60CVMB
FDKS50CVMB
FDKS60CVMB
CDXS25EAVMA
CDXS35EAVMA
CDKS25EAVMA
CDKS35EAVMA
CDXS25EAVMT
CDXS35EAVMT
CDKS25EAVMT
CDKS35EAVMT
FDXS35CVMA
CDXS25EV2C
CDXS35EV2C
CDXS50EV2C
CDXS60EV2C
FDXS25CVMA
FDXS50CVMA
FDXS60CVMA
4D045449J
