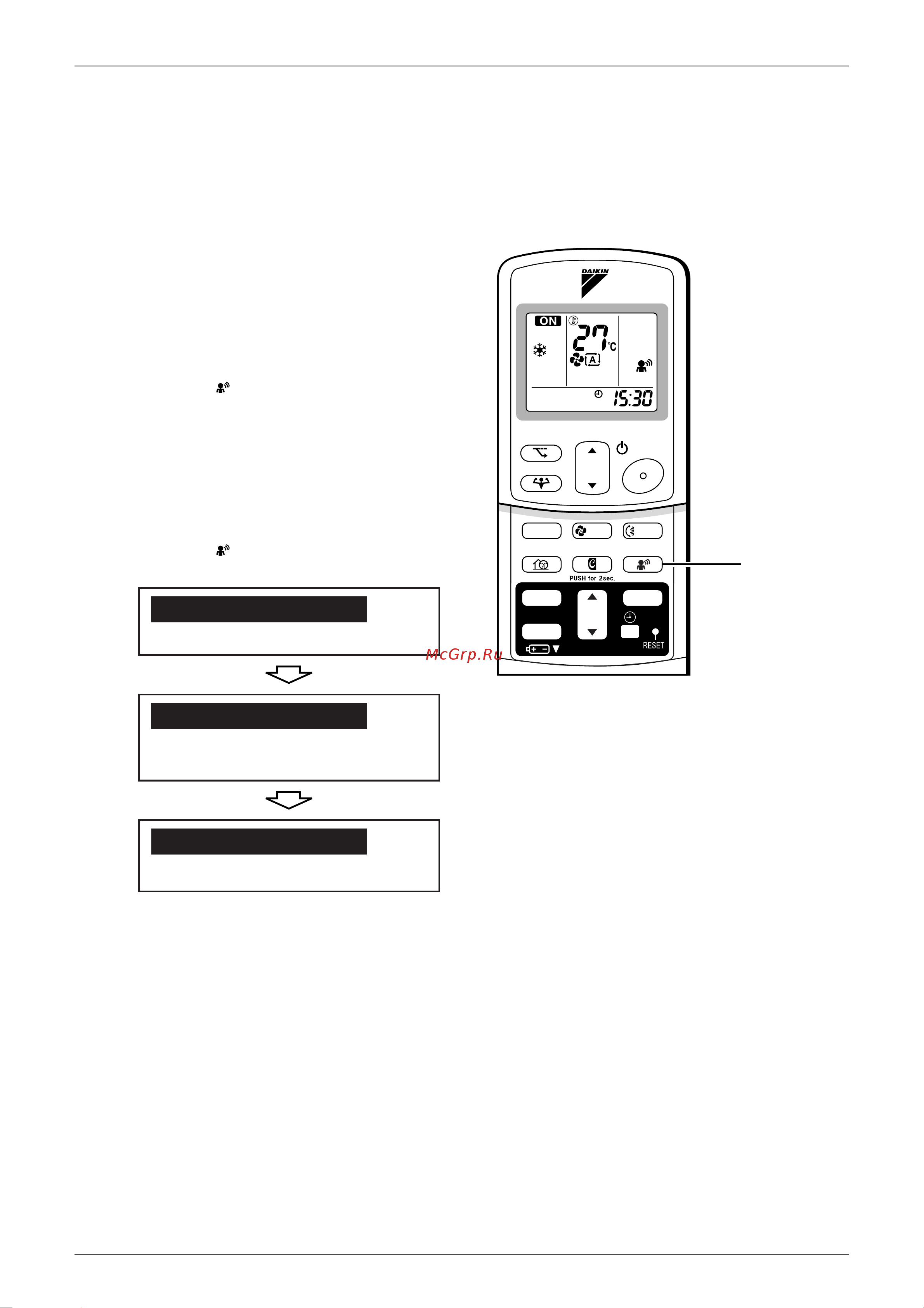

Si12-710 Instruction
Operation Manual 83
2.12 INTELLIGENT EYE Operation
INTELLIGENT EYE Operation
“INTELLIGENT EYE” is the infrared sensor which
detects the human movement.
To start INTELLIGENT
EYE operation
1. Press “SENSOR button”.
• “ ” is displayed on the LCD.
To cancel the
INTELLIGENT EYE
operation
2. Press “SENSOR button” again.
•“ ”
disappears from the LCD.
[EX.]
TEMP
ON/OFF
POWERFUL
MODE
FAN
SWING
SENSOR
ECONO
MOLD PROOF
TIMER
ON
CANCEL
OFF
QUIET
1, 2
When somebody in the room
• Normal operation
When nobody in the room
• 20 min. after, start
energy saving
operation
.
Somebody back in the room
• Back to normal operation.
