Installation Manual ED04-805
30 Room Air Conditioners E-Series

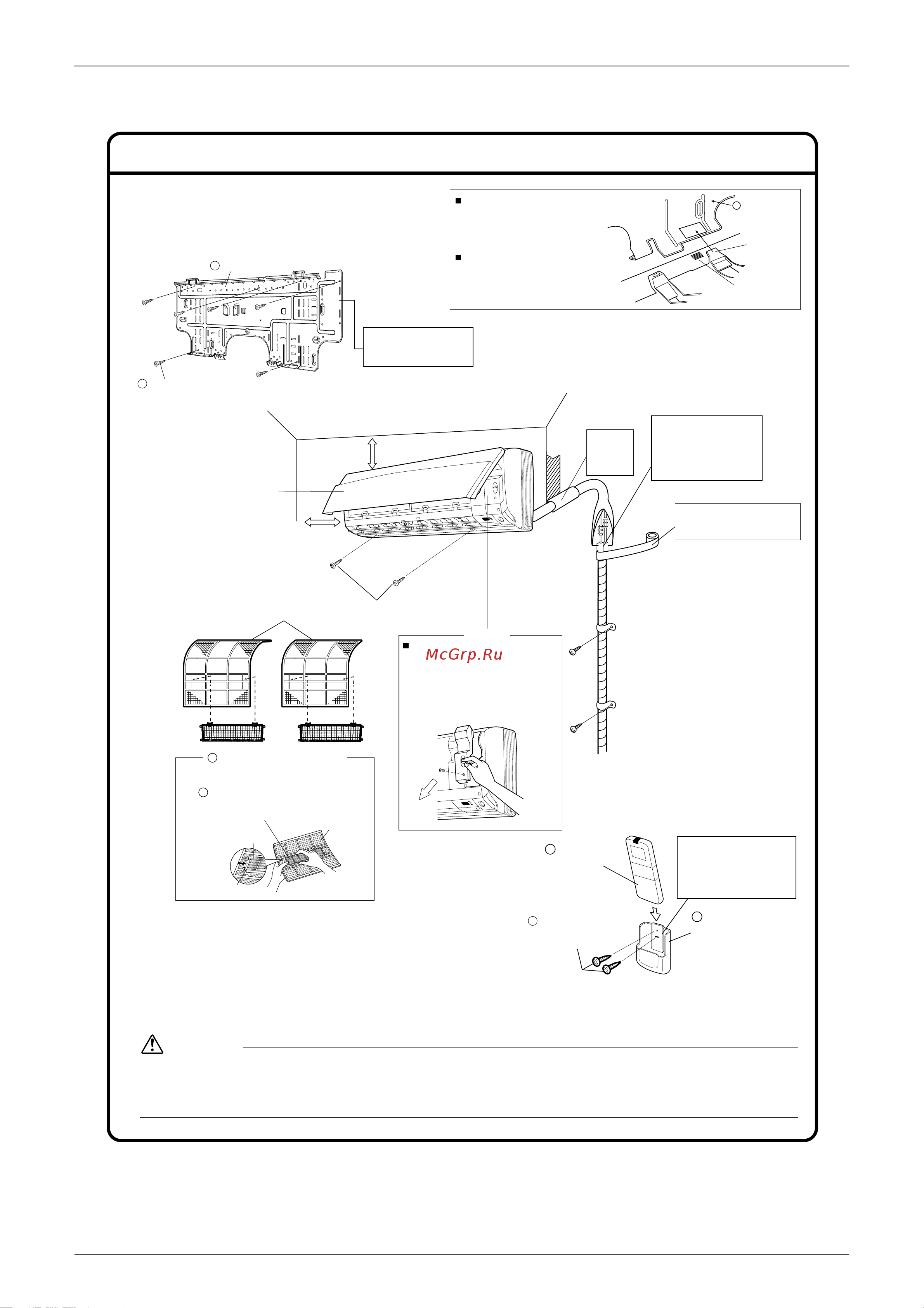

Indoor Unit Installation Drawings
Intelligent-eye Sensor
1) Do not hit or violently push the intelligent-eye sensor. This can lead to damage and malfunction.
2) Do not place large objects near the sensor. Also keep heating units or humidifiers outside the
sensor’s detection area.
CAUTION
30mm or more from ceiling
Front panel
50mm or more from walls
(on both sides)
Intelligent-eye sensor
Wrap the insulation pipe with
the finishing tape from bottom
to top.
Cut thermal insulation
pipe to an appropriate
length and wrap it with
tape, making sure that no
gap is left in the insulation
pipe’s cut line.
Caulk
pipe hole
gap
with putty.
D
Wireless
remote controller
E
Remote
controller holder
Before screwing the remote
controller holder to the wall,
make sure that control
signals are properly
received by indoor unit.
The mounting plate
should be installed on a
wall which can support the
weight of the indoor unit.
A Mounting plate
A Mounting
plate
Clip
Mark (rear side)
Bottom frame
Front
grille
How to attach the indoor unit.
Hook the claws of the bottom frame
to the mounting plate.
If the claws are difficult to hook,
remove the front grille.
How to remove the indoor unit.
Push up the marked area (at the
lower part of the front grille) to
release the claws. If it is difficult to
release, remove the front grille.
Mounting plate fixing
screws M4 × 25L (6)
B
Fixing screws for
remote controller
holder M3 × 20L (2)
F
Service lid
Opening service lid
Service lid is opening/closing type.
Opening method
1) Remove the service lid screws.
2)
Pull out the service lid diagonally
down in the direction of the arrow.
3) Pull down.
C
Titanium Apatite Photocatalytic
Air-Purifying Filter (2)
Air filter
Filter frame
Ta b
C
Titanium Apatite
Photocatalytic
Air-Purifying Filter
Air filters
M4 × 16L
