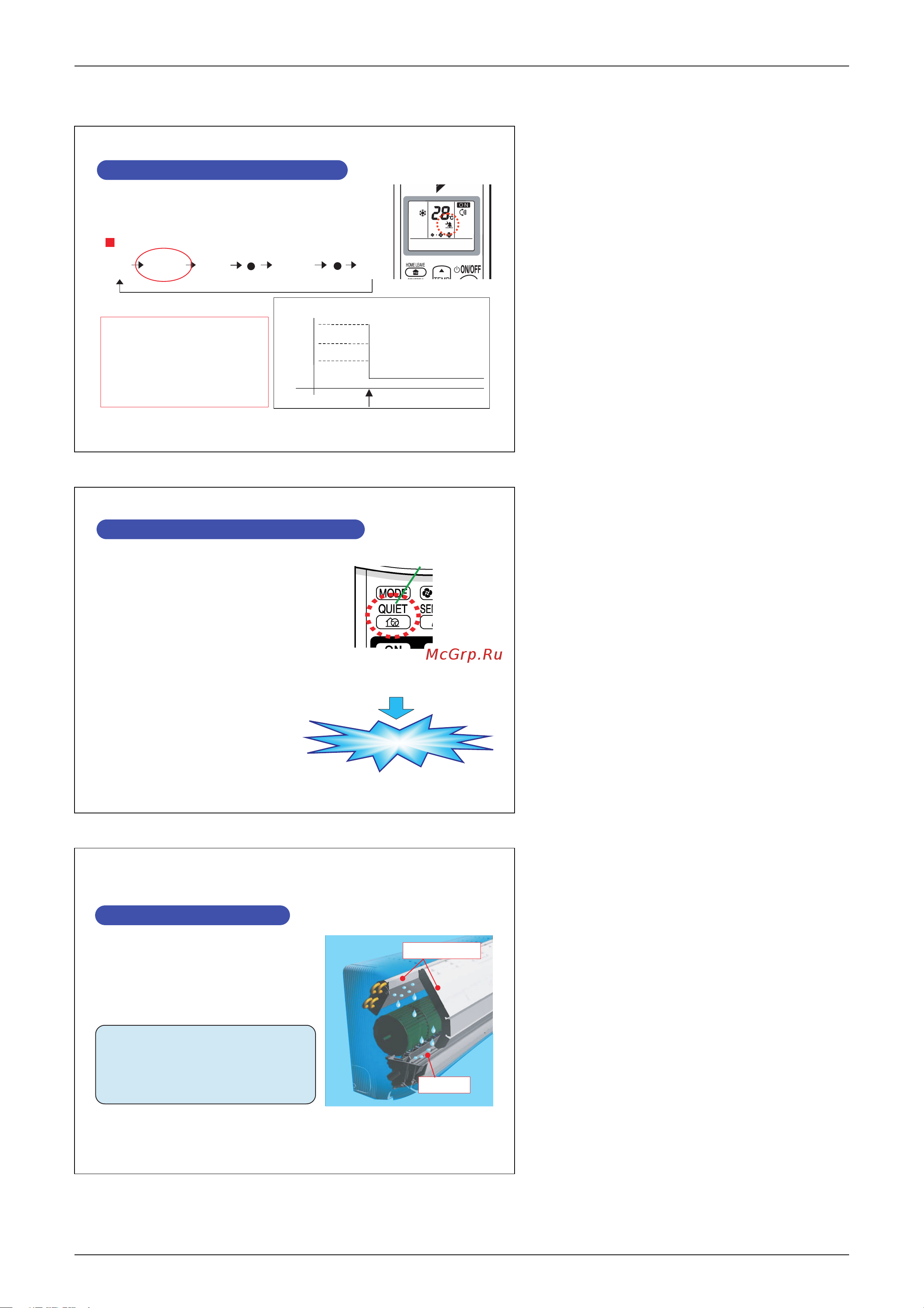

ED04-805 Features
Room Air Conditioners E-Series 7
05RAG19A- 24
Indoor Unit Quiet Operation
<Note>
If the unit operates in “SL” or
“L” mode with small air flow,
operating noise is reduced but
cooling / heating capacity is
reduced too.
Indoor unit’s fan
H
M
L
SL
Quiet “ON”
Auto
Super
Low (SL)
Low
(L)
High
(H)
Middle
(M)
Air flow setting button
When air flow is set to “Quiet” through a remote controller,
the operation sound of the indoor unit is reduced by 3dB.
This is a convenient function while studying or sleeping.
05RAG19A- 26
Outdoor Unit Quiet Operation
Lowering the revolution
speed of the
compressor and fan.
3
3
dB down
dB down
When QUIET button is
selected, the outdoor unit’s
operation sound reduces by
3dB.
In night time operation, the
unit can be operated with
less nuisance to the
neighborhood.
Outdoor Unit Quiet Operation button
05RAG19A- 28
Mold Proof Function
After cooling or dry operation, some drain
water remains inside the indoor unit (on
the heat exchanger, the drain pan, etc...).
This moisture causes the generation of
mold.
The "Mold Proof Operation"
reduces the spread of mold,
and decreases nasty odors that
is caused by the mold.
Heat Exchanger
Drain Pan
