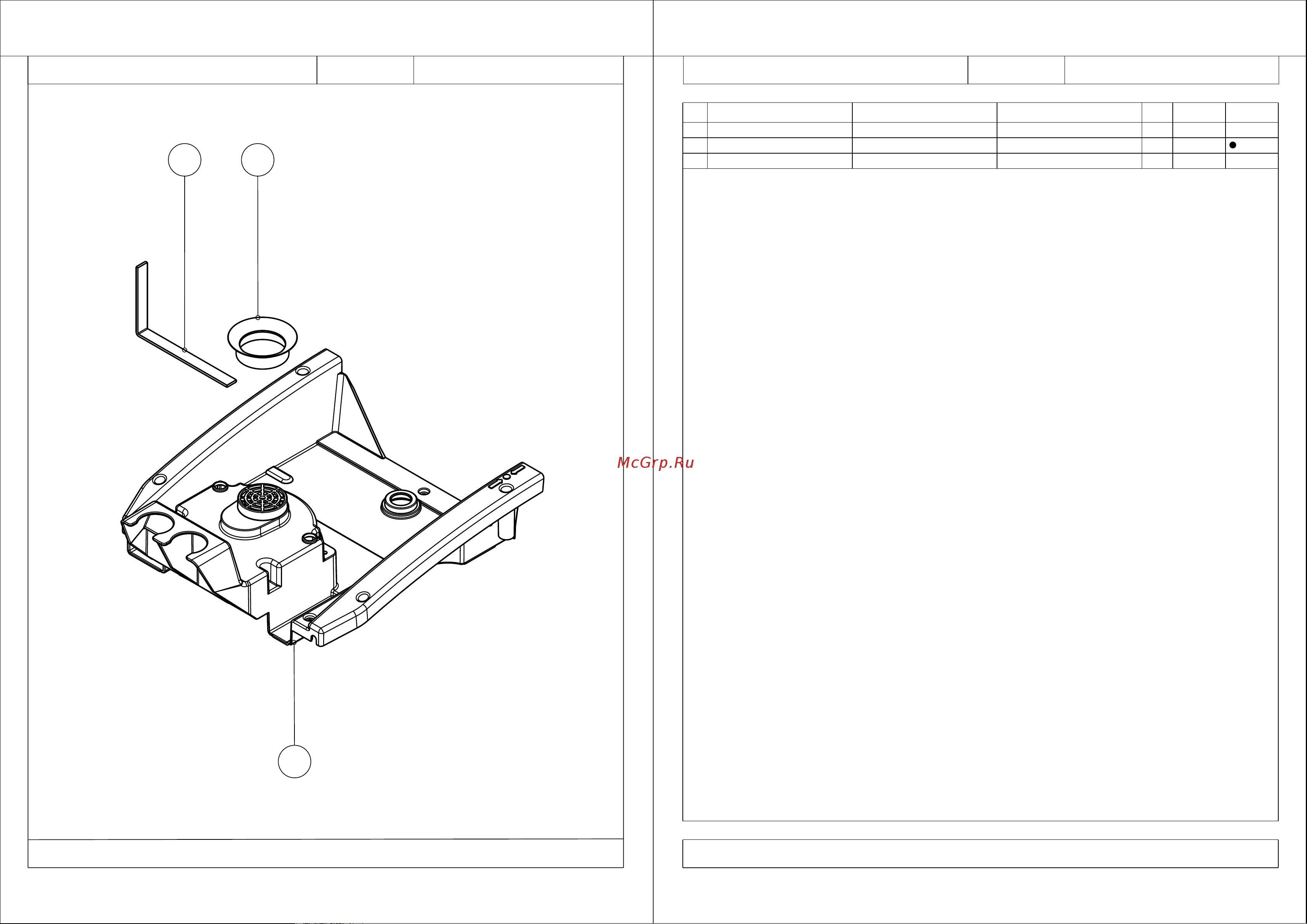

Cover machine assembly 22.0501.00 Cover machine assembly 22.0501.00
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Coperchio telaio plastica Chassis plastic cover Couverture châssis en plastic 1 24.0301.00
2 Guarnizione a trombetta Seal trumpet Trompette de seal 1 39.0162.00
3 Mousse adesiva 3X15 L=240 Mousse adhesive 3X15 L=240 Mousse adhésive 3X15 L=240 1 39.0016.00
TAV. N° Rolly11 - 08
TAV. N° Rolly11 - 088
1
2 3
