Ghibli Rolly 11 E 33 - сетевая [9/20] New_view_13
![Ghibli Rolly 11 E 33 - сетевая [9/20] New_view_13](/views2/1777778/page9/bg9.png)

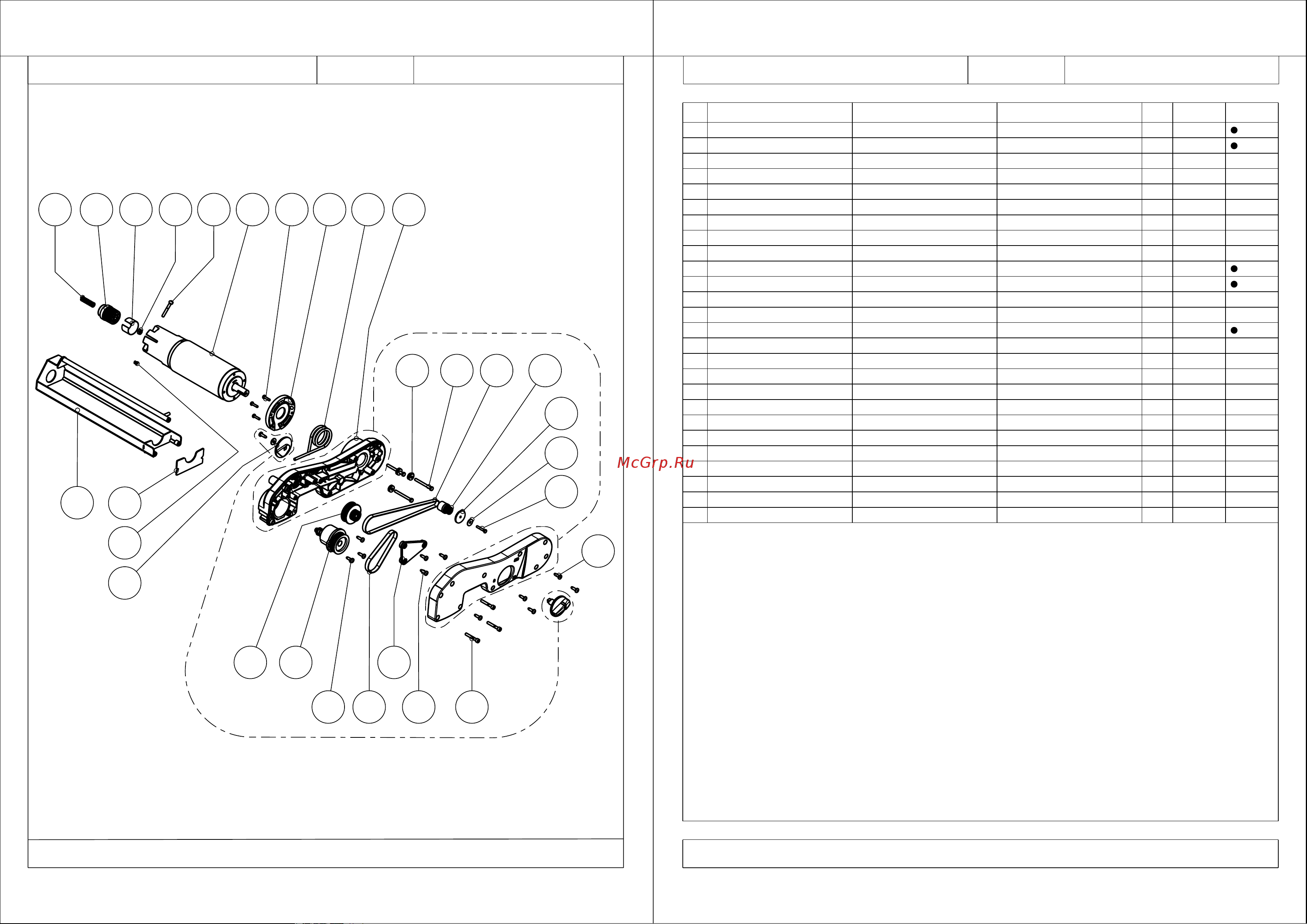

Brush assembly 22.0513.0X Brush assembly 22.0513.0X
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Cinghia 252 CHD3 9 3M Belt 252 CHD3 9 Courrole 252 CHD3 9 1 39.0171.00
2 Cinghia 522 RPP3 9 Belt 522 RPP3 9 Courrole 522 RPP3 9 1 39.0170.00
3 Dado autobloc. M5 A2 DIN982 Self-locking nut M5 A2 DIN982 Ecrou autobloqu. M5 A2 DIN982 1 23.0041.00
4 Dado M6 ZB UNI 5588 Nut M6 ZB UNI 5588 Ecrou M6 ZB UNI 5588 1 2508710
5 Fermo albero rinvio Remittal shaft firm Bloc arbre de renvoi 1 24.0335.00
6 Flangia motore spazzola Flange motor brush Bride moteur brosse 1 24.0331.00
7 Flap protezione laterale Rolly Side protection Rolly Protection latérale Rolly 1 39.0178.00
8 Gruppo carter trasmissione Transmission carter assembly Groupe carter trasmission 1 22.0564.00
9 Gruppo manopola di regolazione Adjustment knob assembly Group de bouton de réglage 1 96.0106.0X
10 Gruppo pulegge rinvio Remittal pulley assembly Group pouille de renvoi 1 22.0516.00
11 Gruppo pulegge spazzola Pulley brush assembly Group pulley brosse 1 22.0517.00
12 Molla Spring Ressort 1 2500945
13 Molla carico spazzola Rolly Brush load spring , type Rolly Ressort type de brosse Rolly 1 31.0028.00
14 Motore spazzola 24Vdc 200W Brush motor 24Vdc 200W Moteur brosse 24Vdc 200W 1 26.0068.00
15 Puleggia Z18 RPP3 Pulley Z18 RPP3 Poulie Z18 RPP3 1 24.0336.00
16 Rondella 4X16 Washer 4X16 Rondelle 4X16 1 855001010
17 Rondella 5X15 Washer 5X15 Rondelle 5X15 6 2509012
18 Rondella puleggia motore Washer motor pulley Rondelle poulie moteur 1 24.0337.00
19 Spessore gomma prolung. motore Rubber for motor extension Caoutchouc extension moteur 1 39.0179.00
20 Supporto cilindrico Cylindrical support Support cylindrique 1 24.0369.00
21 Supporto spazzola Brush support
Soutien de la brosse 1 25.0453.00
22 Vite autofilettante 4X18 Self-tapping screw 4X18 Vis autotaraudante 4X18 3 2508529
23 Vite autofilettante 5X16 Self-tapping screw 5X16 Vis autotaraudante 5X16 11 2508570
24 Vite M4X25 Screw M4X25 Vis M4X25 1 23.0074.00
25 Vite TCEI M5X35 DIN912 Screw M5X35 DIN912 Vis M5X35 DIN912 4 KA13908P
26 VITE TE M5x50 Screw M5X50 Vis M5X50 3 23.0042.00
TAV. N° Rolly11 - 06
TAV. N° Rolly11 - 06
X= 0: giallo-yellow-jaune
1: blu-blue-bleu
1
2
3
4
5
6
10 11
12 13
16
17
18
20
21
22
23
24
25
26
23 25
19
7
23
15
8
9
14
