Ghibli Rolly 11 E 33 - сетевая [15/20] Foglio 15
![Ghibli Rolly 11 E 33 - сетевая [15/20] Foglio 15](/views2/1777778/page15/bgf.png)

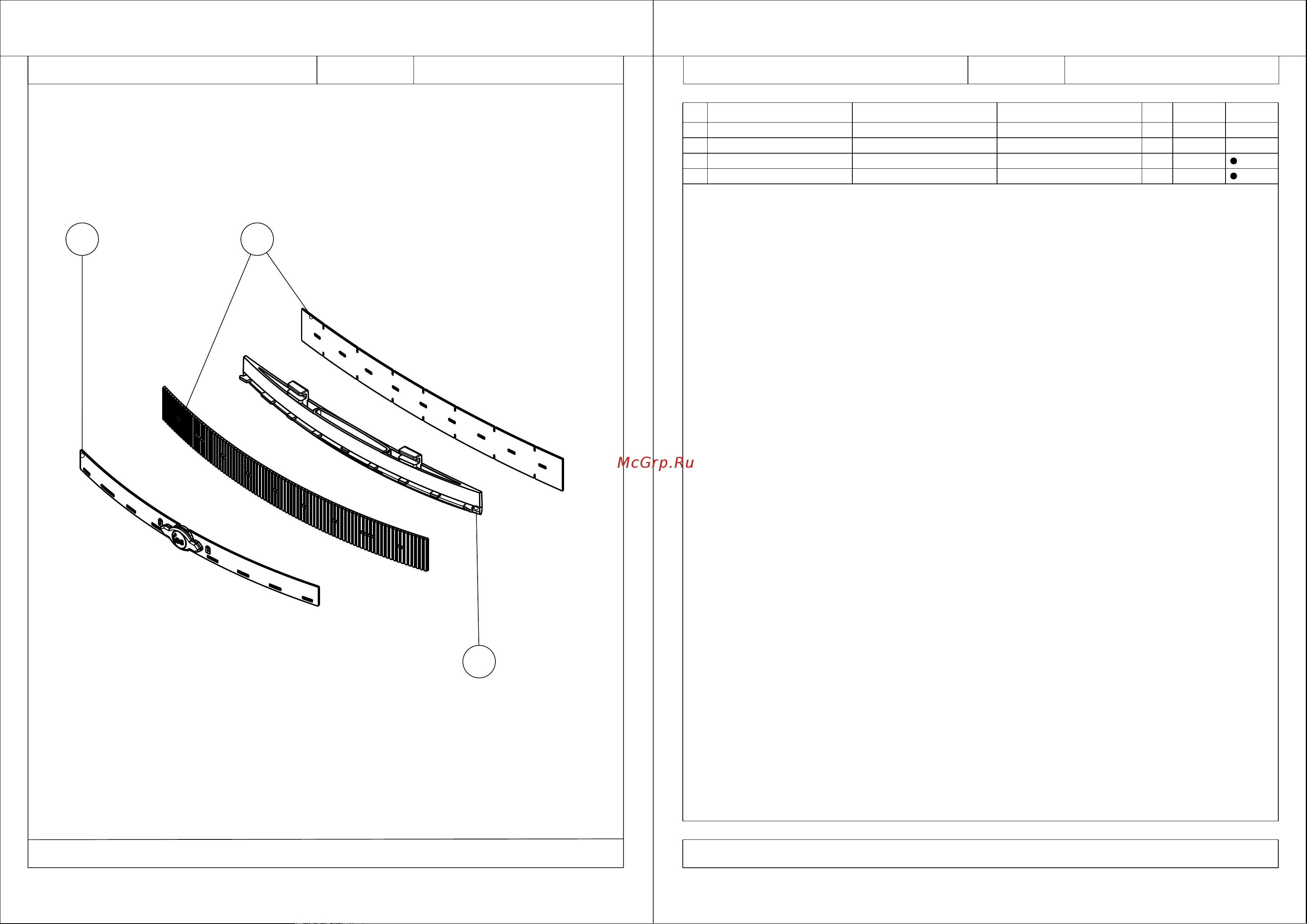

Complety squeegee group 22.0504.0X Complety squeegee group 22.0504.0X
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Corpo tergitore Body squeegee Corps essuie-glace 1 24.0355.00
2 Gruppo bandella anteriore Front strap assemly Group gond antérieur 1 22.0520.0X
3 Set Flap PARA Set Flap PARA Set Flap PARA 1 96.0085.00
4 Set Flap PU Set Flap PU Set Flap PU 1 96.0084.00
TAV. N° Rolly11 - 12
TAV. N° Rolly11 - 12
X= 0: giallo-yellow-jaune
1: blu-blue-bleu
1
2
3/4
