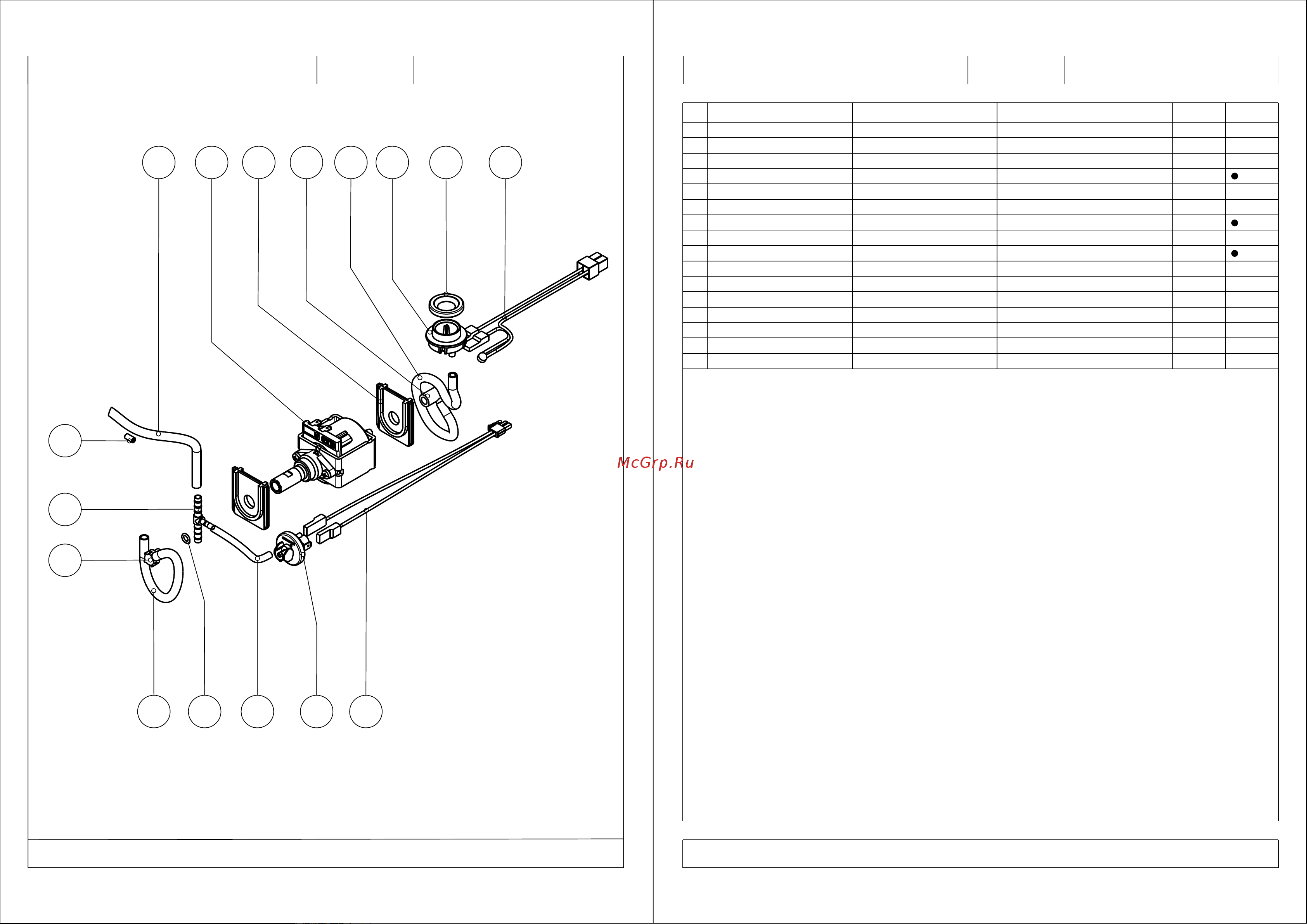

Pump assembly 22.0510.0X Pump assembly 22.0510.0X
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Cablaggio pressostato Pressure device harness Pression dispositif harnais 1 34.0545.00
2 Cavetto pompa Pump wiring Câble pump 1 34.0503.00
3 Gicleur Ø4.8x9.5 foro 1,6mm Jet 1.6mm Gicleur 1,6mm 1 50.0065.00
4 Guarnizione raccordo valvola Junction valve gasket Jonction joint de soupape 1 39.0167.00
5 OR 2025 OR 2025 OR 2025 1 30.0245.00
6 Pipetta 8.01.033 Joint 8.01.033 Jonction 8.01.033 1 30.0243.00
7 Pompa EP8 1.01.353.11 Pump EP8 1.01.353.11 Pompe EP8 1.01.353.11 1 30.0242.00
8 Portagomma T 6-4-6 T-sleeve 6-4-6 Embout T 6-4-6 1 30.0264.00
9 Pressostato 38mbar NO Pressure device 38bar NO Pressostat 38bar NO 1 30.0263.00
10 Raccordo 90° 9.01.090 Joint 90° 9.01.090 Jonction 90° 9.01.090 1 30.0244.00
11 Raccordo valvola Rolly Valve connection Raccord valve 1 24.0325.0X
12 Supporto pompa Pump support Support de la pompe 2 2502044
13 Tubo 8X4 L=150 Tube 8X4 L=150 Tube 8X4 L=150 1 30.0240.00
14 Tubo d.8x4 L 380 Tube d.8x4 L 380 Tube d.8X4 L=380 1 30.0247.00
15 Tubo Ø6x2 L=90 Tube Ø6X2 L=90 Tube Ø6X2 L=90 1 30.0265.00
16 Tubo Ø8X4 L=185 Tube Ø8X4 L=185 Tube Ø8X4 L=185 1 2010219
TAV. N° Rolly11 - 04
TAV. N° Rolly11 - 04
1
2
3
4
5
6 7
8
9
10
11 12 13 14
15 16
