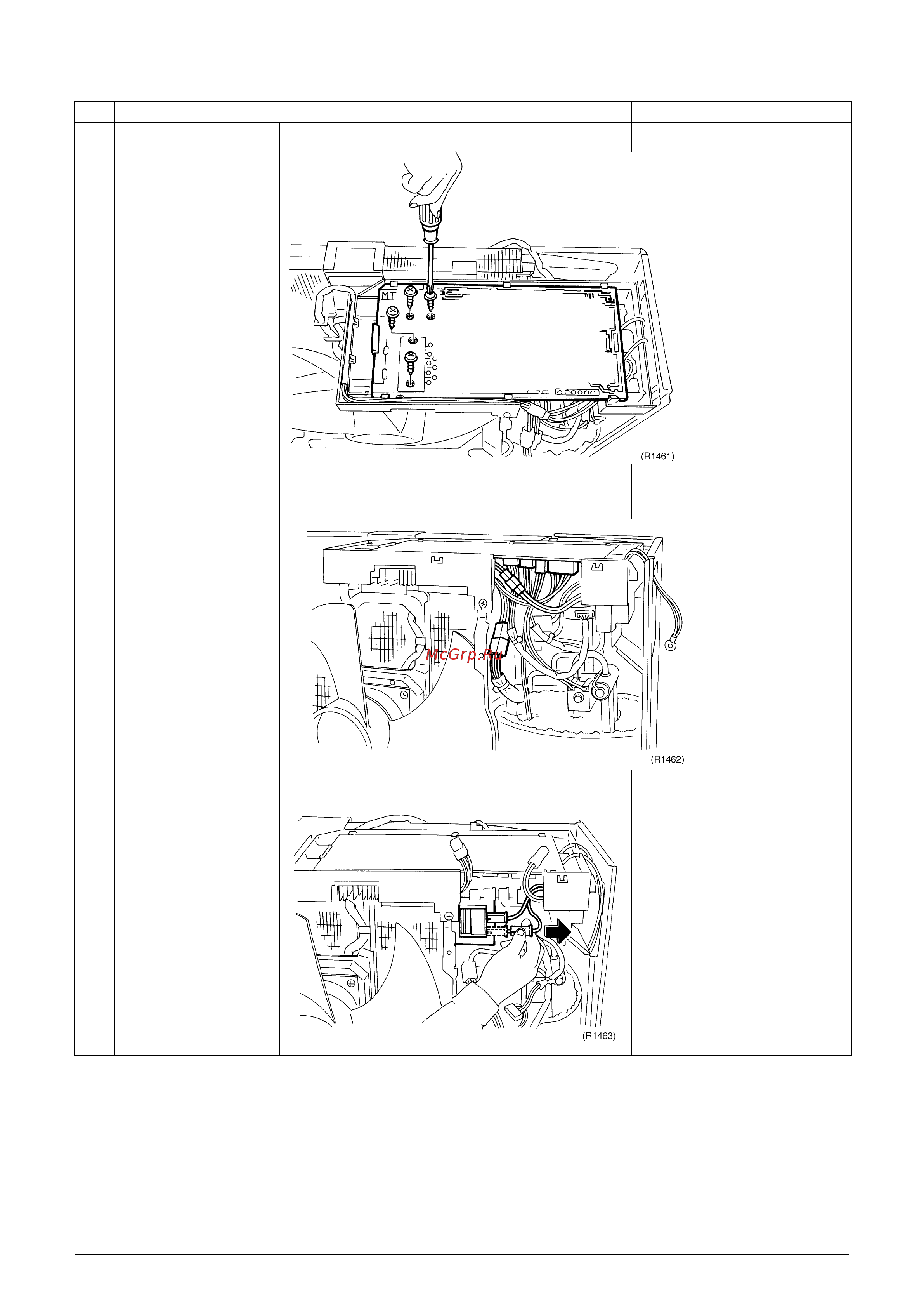

Si04-115 For RK25J, RK35J, RX25J, RX35J
Removal Procedure 121
2
Remove the four
screws fixing the
printed circuit board.
3
Disconnect the wire
harness.
4
Disconnect the two
connectors of the
reactor.
Step Procedure Points
