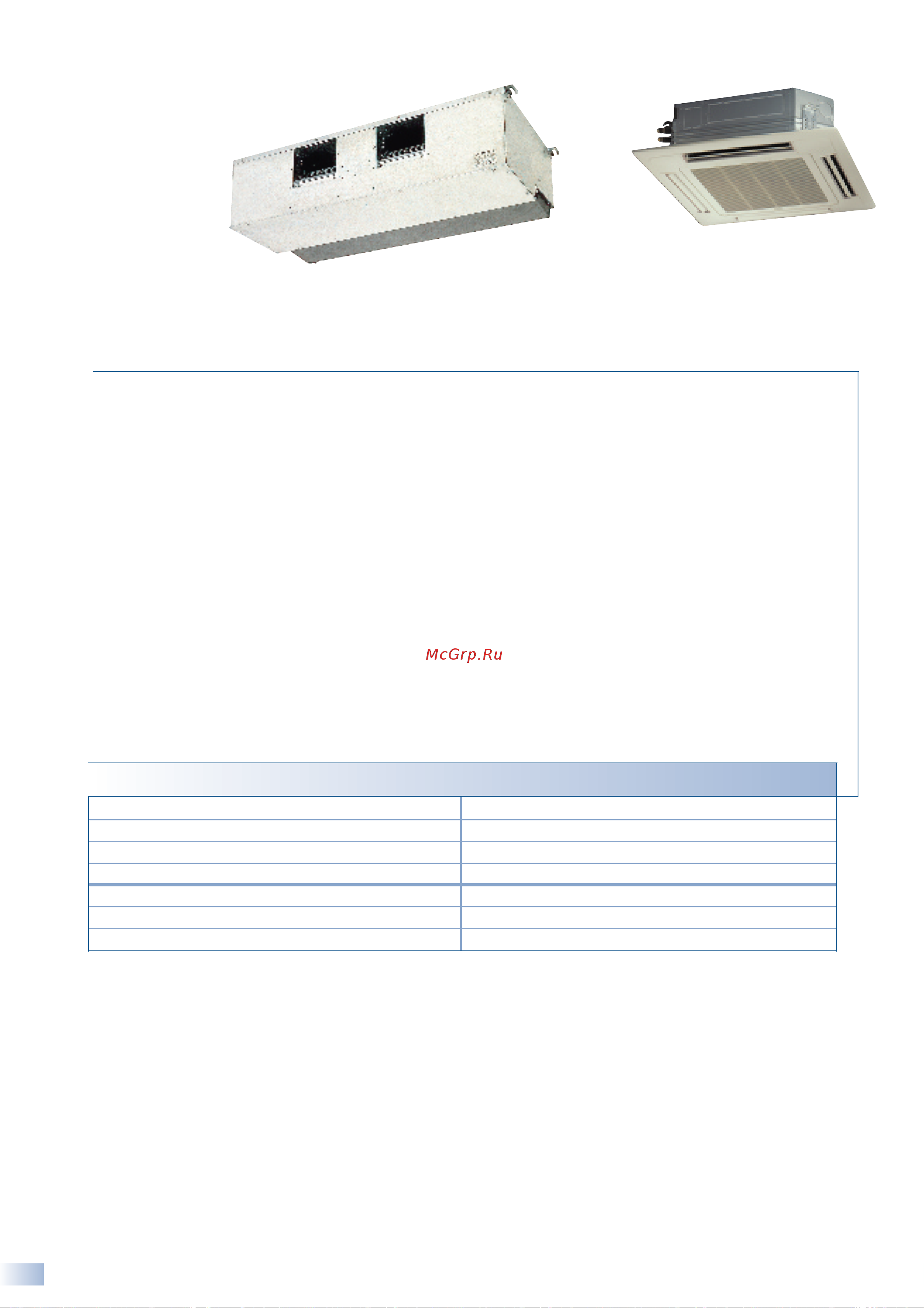

20 LDYP3-4B7V1 / LGYP2-3B7V1
Medium temperature range
refrigeration units
BACKGROUND
Daikin Europe NV launches the Refrigeration business in Europe. The objective of Refrigeration is to
cool or to freeze products, as well as to keep the right temperature for employees working in the
processing areas. This business contains the Medium, Chilled and Frozen range.
INDOOR UNITS OUTDOOR UNITS
LDYP3B7V1 RYP71B7W1
LDYP4B7V1 RYP100B7W1
LDYP4B7V1 RYP125B7W1
LGYP3B7V1 RYP71B7W1
LGYP2B7V1 RYP100B7W1
LGYP2B7V1 RYP125B7W1
MODEL RANGE
FEATURES
• Low sound level
• High reliability
• Long piping length: up to 50m
• Wide outdoor operation range: -15°C to 46°CDB in cooling mode, -9°C to 21°CDB in heating mode
• Indoor unit operation range: down to 14°C
• Possible applicatons are wine storage & selling area, food processing work shop and various areas
where lower temperature air conditioning is required for the food quality and sanitary conditions.
LDYP3,4B7V1 LGYP2,3B7V1
