English
1-1
Indoor Unit
A
TOP VIEW
C
SIDE VIEW
B
THE MARK SHOWS PIPING DIRECTION
REAR REAR
RIGHTLEFT
BOTTOM BOTTOM
FRONT GRILLE FIXED SCREWS
(INSIDE)
LOUVER
SIGNAL
RECEIVER
INDOOR UNIT
ON/OFF SWITCH
ROOM TEMPERATURE
THERMISTOR (INSIDE)
NAME PLATE
TERMINAL
BLOCK
WITH EARTH
TERMINAL
All dimensions are in mm
Original Instruction

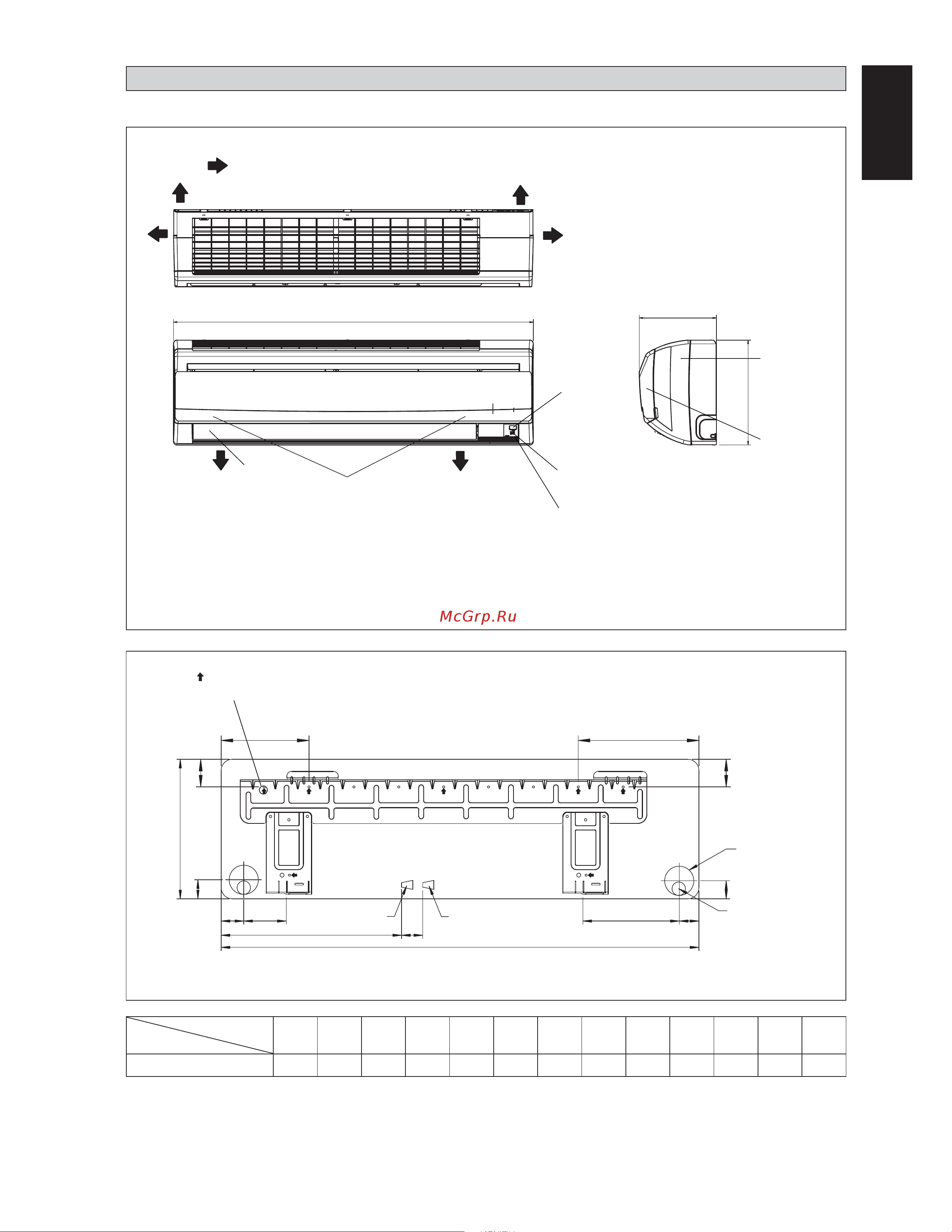

OUTLINE AND DIMENSIONS
Recommended mounting plate retention spots
(7 spots in all)
D
B
G
HJ
L
M
A
K
F
I
G
F
E
Through the wall
hole Ø 65mm
Drain hose position
Liquid pipe end Gas pipe end
INSTALLATION PLATE FT(Y)D20/25JEVLK
All dimensions are in mm
Dimension
Model
ABCDE FGH I JKLM
FT(Y)D20/25JEVLK 1065 310 228 190 173 61 40 45 48 91 219 580 45
FRONT VIEW
1 IM-WMJ-0211(0)_DAIKIN (SASO)-E1 1 6/1/11 12:09:43 PM
