3 | About the system
User reference guide
12
FTXTA30B2V1B(W)(B)
Daikin room air conditioner
4P518786-7G – 2021.03
i Room temperature and humidity sensor
j Louvers (vertical blades)
k Flaps (horizontal blades)
Note: Position of titanium apatite deodorising filter and silver particle filter is
interchangeable.

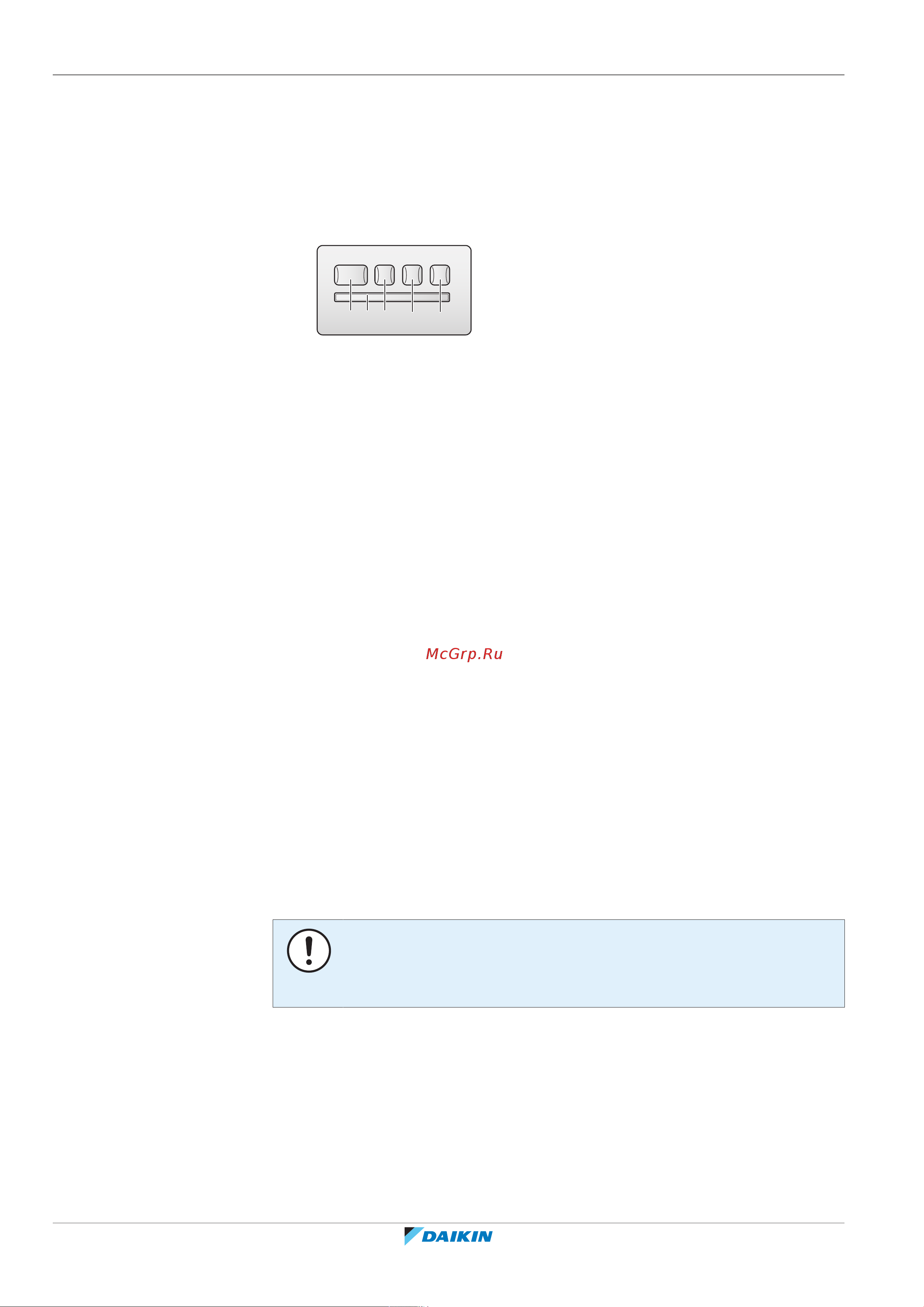

3.1.1 Indoor unit display
a b c d e
a ON/OFF button
b Signal receiver
c Timer lamp (orange)
d Intelligent eye lamp (green)
e Wireless adapter ON/OFF button
ON/OFF button
If the user interface is missing, you can use the ON/OFF button on the indoor unit
to start/stop operation. When operation is started using this button, the following
settings are used:
▪ Operation mode = Automatic
▪ Temperature setting = 25°C
▪ Airflow rate = Automatic
3.2 About the user interface
▪ Direct sunlight. Do NOT expose the user interface to direct sunlight.
▪ Dust. Dust on the signal transmitter or receiver will reduce sensitivity. Wipe off
dust with a soft cloth.
▪ Fluorescent lights. Signal communication might be disabled if fluorescent lamps
are in the room. In that case, contact your installer.
▪ Other appliances. If the user interface signals operate other appliances, move
the other appliances, or contact your installer.
▪ Curtains. Make sure that the signal between the unit and the user interface is
NOT blocked by curtains or other objects.
NOTICE
▪ Do NOT drop the user interface.
▪ Do NOT let the user interface get wet.
