5 | Operation
User reference guide
22
FTXTA30B2V1B(W)(B)
Daikin room air conditioner
4P518786-7G – 2021.03
Setting Description
Fan
The system only controls the airflow (airflow
rate and airflow direction).
The system does NOT control the temperature.
Additional info:
▪ Outside temperature. The system's cooling or heating effect decreases when the
outside temperature is too high or too low.
▪ Defrost operation. During heating operation, frost might occur on the outdoor
unit and decrease the heating capacity. In that case, the system automatically
switches to defrosting operation to remove the frost. During defrosting
operation, hot air is NOT blown from the indoor unit.

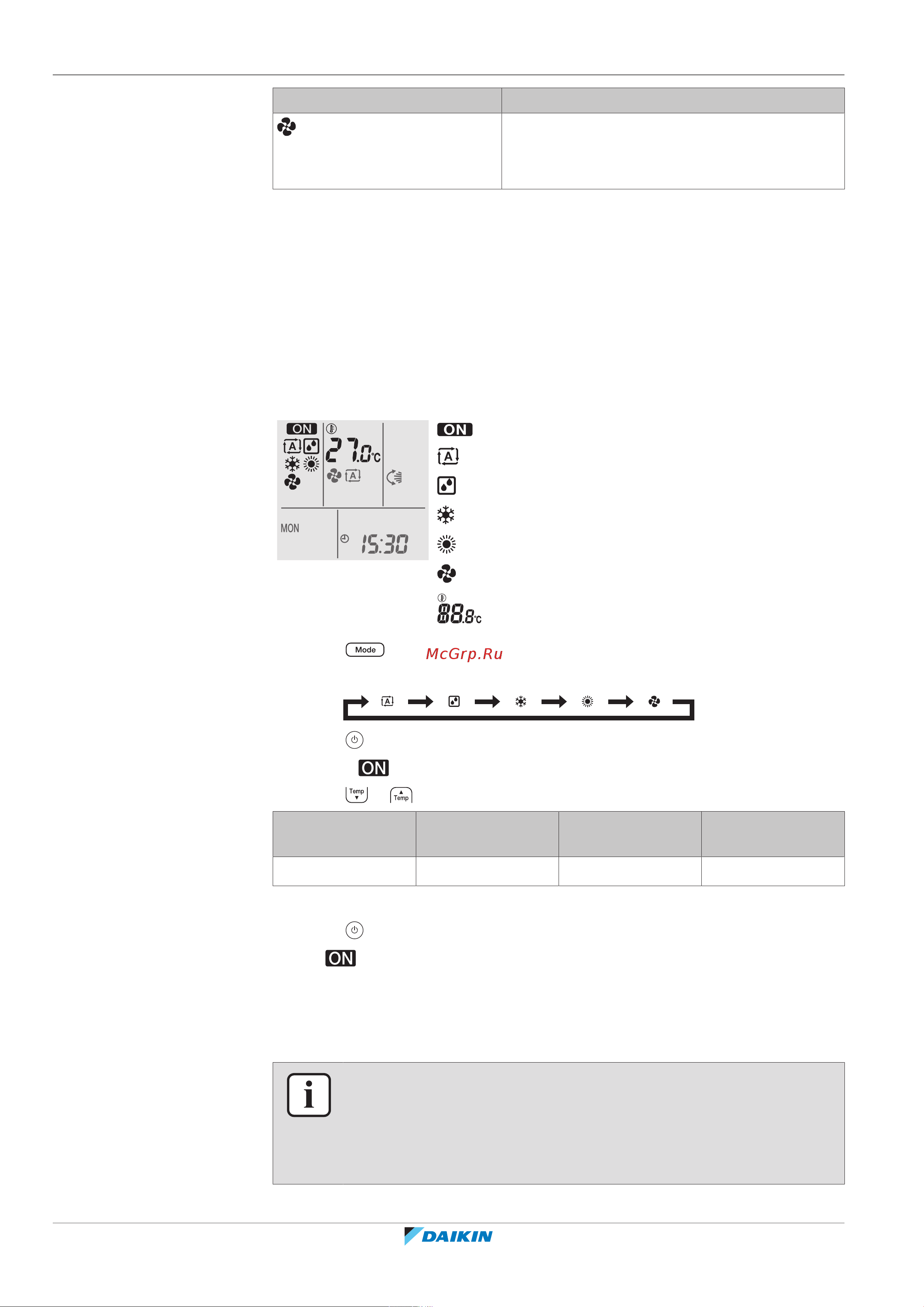

5.3.1 To start/stop operation mode and to set the temperature
: Unit is operating.
: Operation mode = Automatic
: Operation mode = Drying
: Operation mode = Cooling
: Operation mode = Heating
: Operation mode = Fan only
: Shows the set temperature.
1 Press one or more times to select the operation mode.
Result: The mode will be set as follows:
2 Press to start operation.
Result: and the selected mode are displayed on the LCD.
3 Press or one or more times to lower or raise the temperature.
Cooling operation Heating operation Automatic
operation
Drying or Fan only
operation
18~32°C 10~30°C 18~30°C —
Note: When using drying or fan only mode, you cannot adjust the temperature.
4 Press to stop operation.
Result: disappears from the LCD. The operation lamp goes off.
5.4 Airflow rate
INFORMATION
▪ When using drying operation mode, you CANNOT adjust the airflow rate setting.
▪ The airflow rate in heating mode will lower to avoid generating cold airflow.
When temperature of the airflow rise, operation will continue at the set airflow
rate.
