3 | About the system
User reference guide
13
FTXTA30B2V1B(W)(B)
Daikin room air conditioner
4P518786-7G – 2021.03

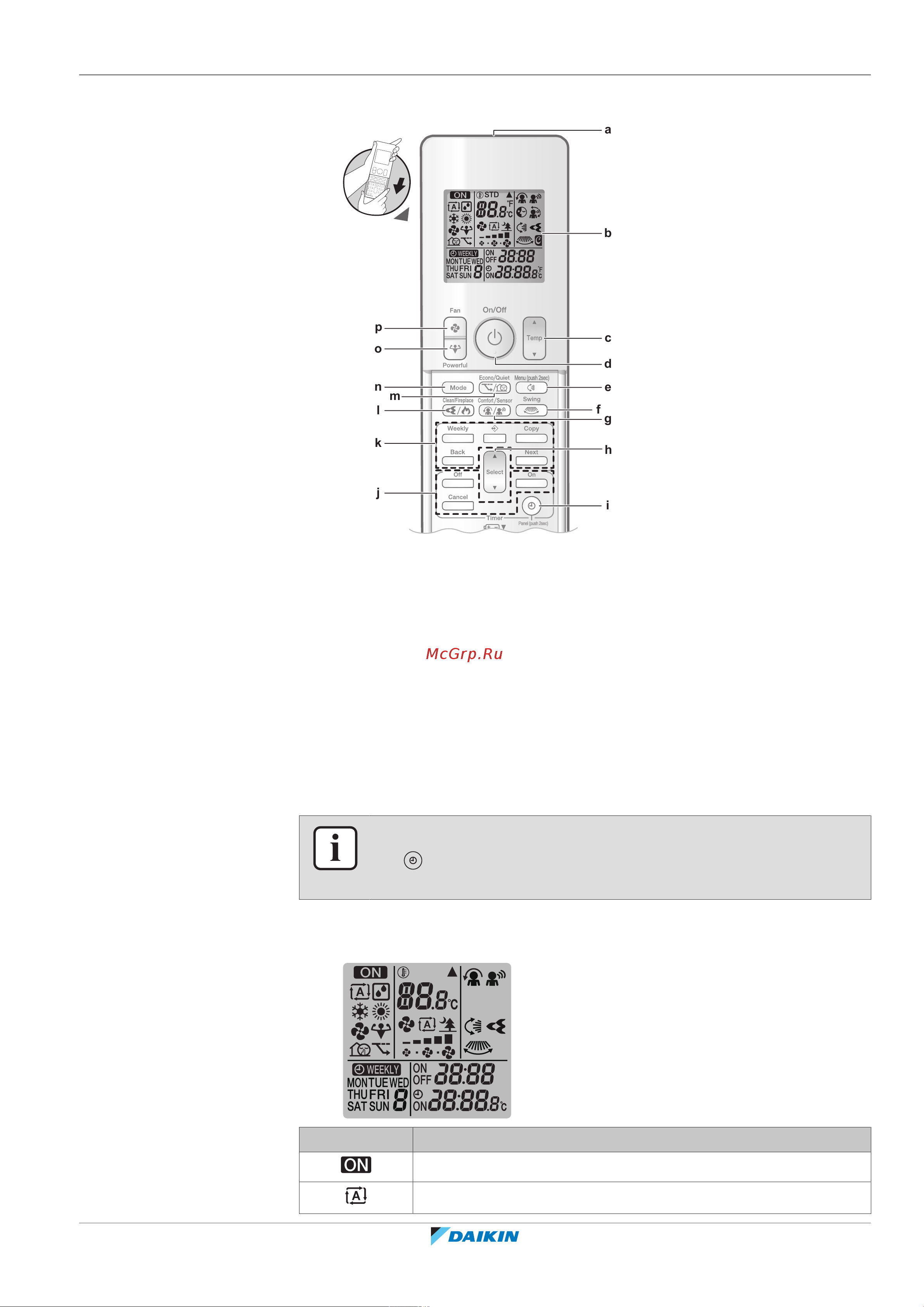

3.2.1 Components: User interface
Menu (push 2sec)
Panel (push 2sec)
d
a
g
m
h
c
b
n
l
f
e
i
j
k
p
o
Clean/Fireplace
a Signal transmitter
b LCD display
c Temperature adjustment button
d ON/OFF button
e Vertical swing and menu (push 2 seconds) button
f Horizontal swing button
g Comfort airflow and Intelligent eye operation button
h Select button
i Clock and open panel (push 2 seconds) button
j OFF/ON timer operation buttons
k Weekly timer operation buttons
l Flash Streamer and Fireplace logic operation button
m Econo and Outdoor unit quiet operation button
n Mode button
o Powerful button
p Fan button
INFORMATION
Use (hold for 2seconds) to open the front panel when you clean the air filters.
See "7.4To open the front panel"[443].
3.2.2 Status: User interface LCD
Icon Description
Operation is active
Operation mode = Automatic
