7 | Maintenance and service
User reference guide
43
FTXTA30B2V1B(W)(B)
Daikin room air conditioner
4P518786-7G – 2021.03

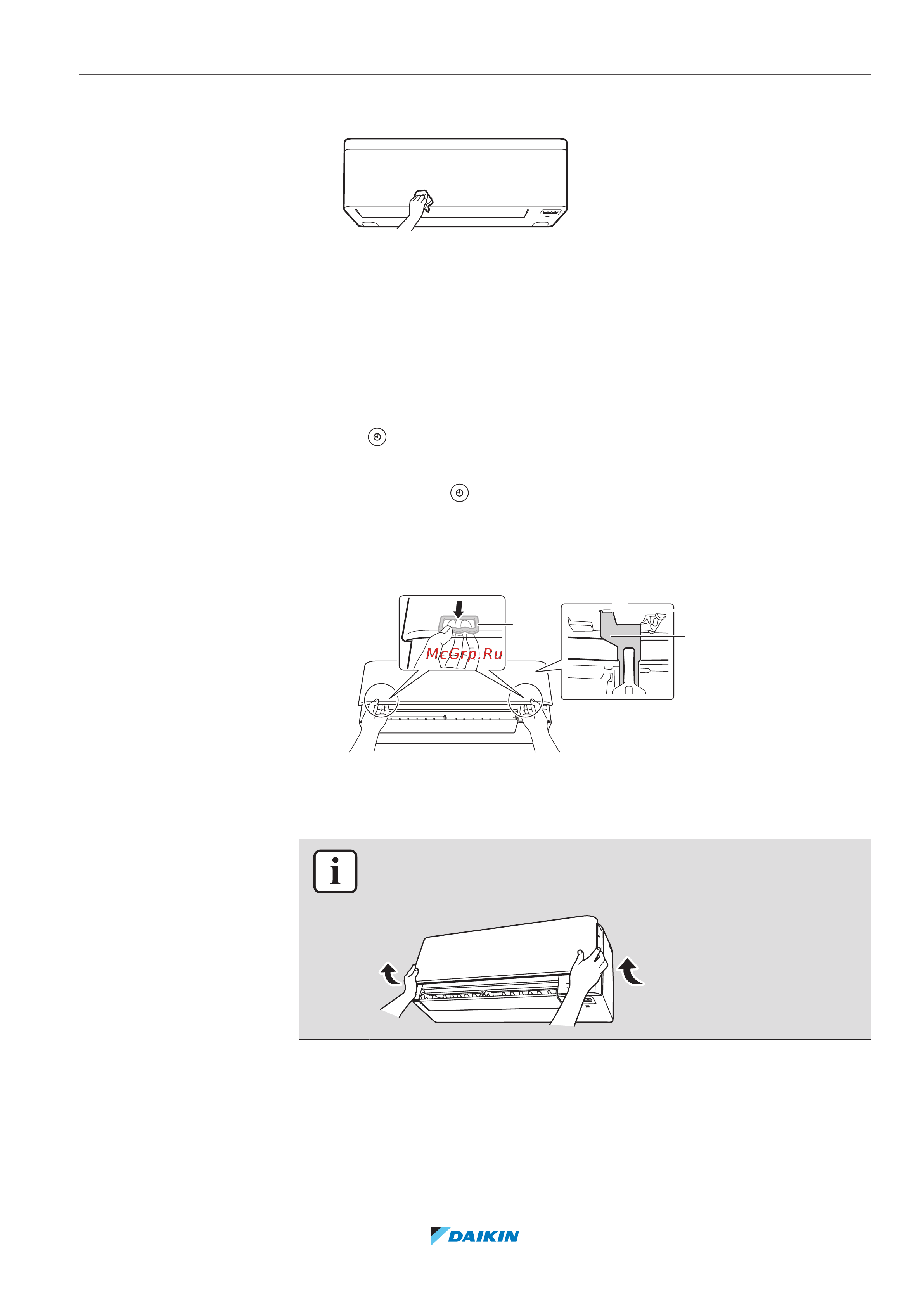

7.3 To clean the front panel
1 Clean the front panel with a soft cloth. If it is difficult to remove stains, use
water or a neutral detergent.
7.4 To open the front panel
Open the front panel using the user interface.
1 Stop operation.
2 Hold on the user interface for at least 2seconds.
Result: The front panel will open.
Note: Press and hold again for at least 2seconds to close the front panel.
3 Turn the power supply off.
4 Pull down both locks on the back of the front panel.
5 Open the front panel until the support fits into the fixing tab.
a
d
c
b
a Lock (1 on each side)
b Backside of the front panel
c Fixing tab
d Support
INFORMATION
If you CANNOT find the user interface or you use another optional controller. Pull the
front panel carefully up by hand as shown in the following figure.
7.5 About the air filters
Operating the unit with dirty filters means that the filter:
▪ CANNOT deodorise the air,
▪ CANNOT clean the air,
