4 | Before operation

User reference guide

FTXTA30B2V1B(W)(B)

Daikin room air conditioner

4P518786-7G – 2021.03

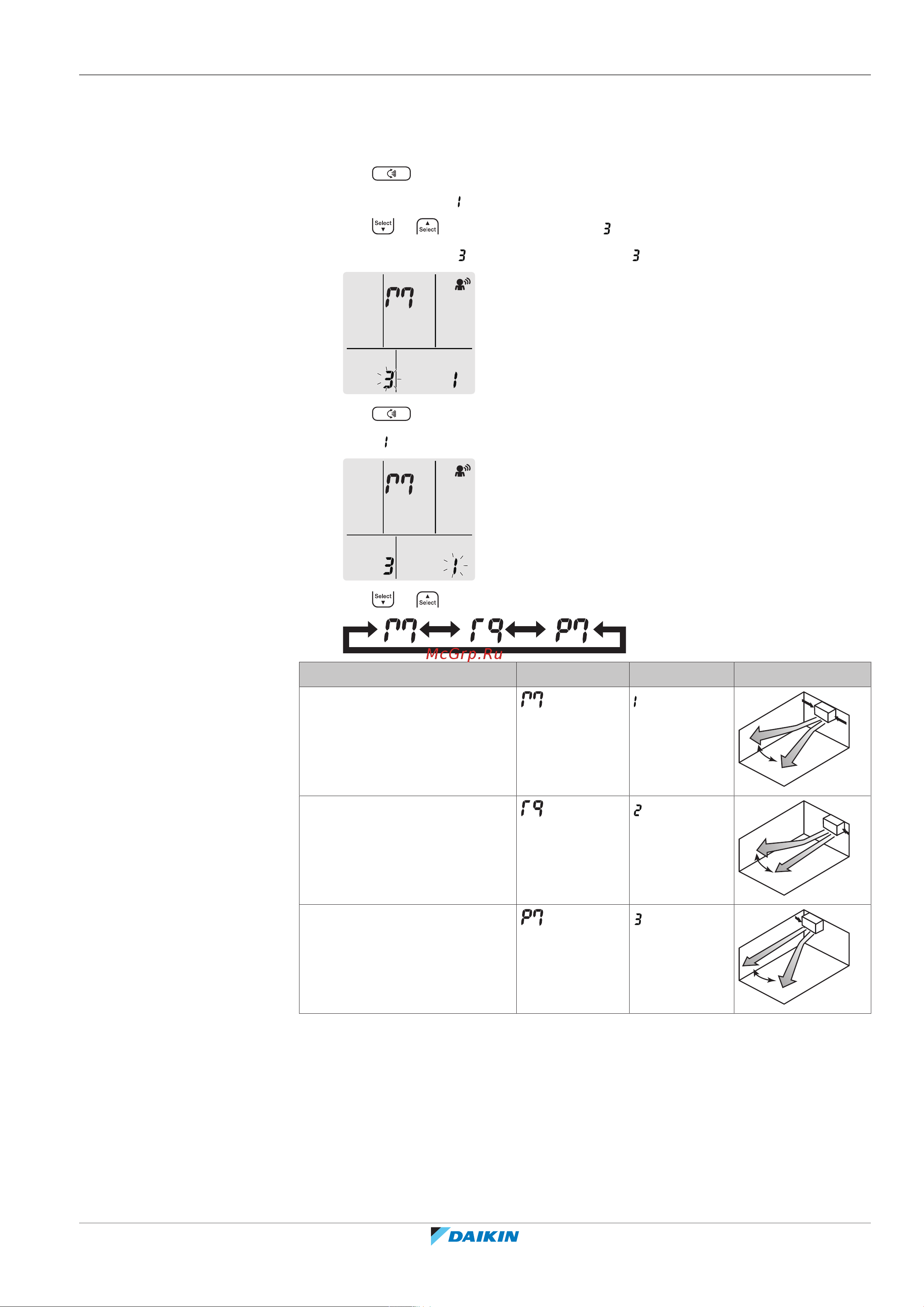

4.7 To change indoor unit position setting

Set the indoor unit position to avoid direct airflow to walls.

1 Press for at least 2seconds.

Result: The menu appears on the display.

2 Press or to change the menu to .

Result: The menu appears on the display. blinks.

3 Press to select the menu.

Result: blinks.

4 Press or to change the setting as follows:

If the unit is… Symbol Blinks Result

In the middle of the wall

(factory default setting)

≤500mm from the wall on

right

≤500mm from the wall on

left

Result: The airflow range will be adjusted to avoid direct contact with the wall.
