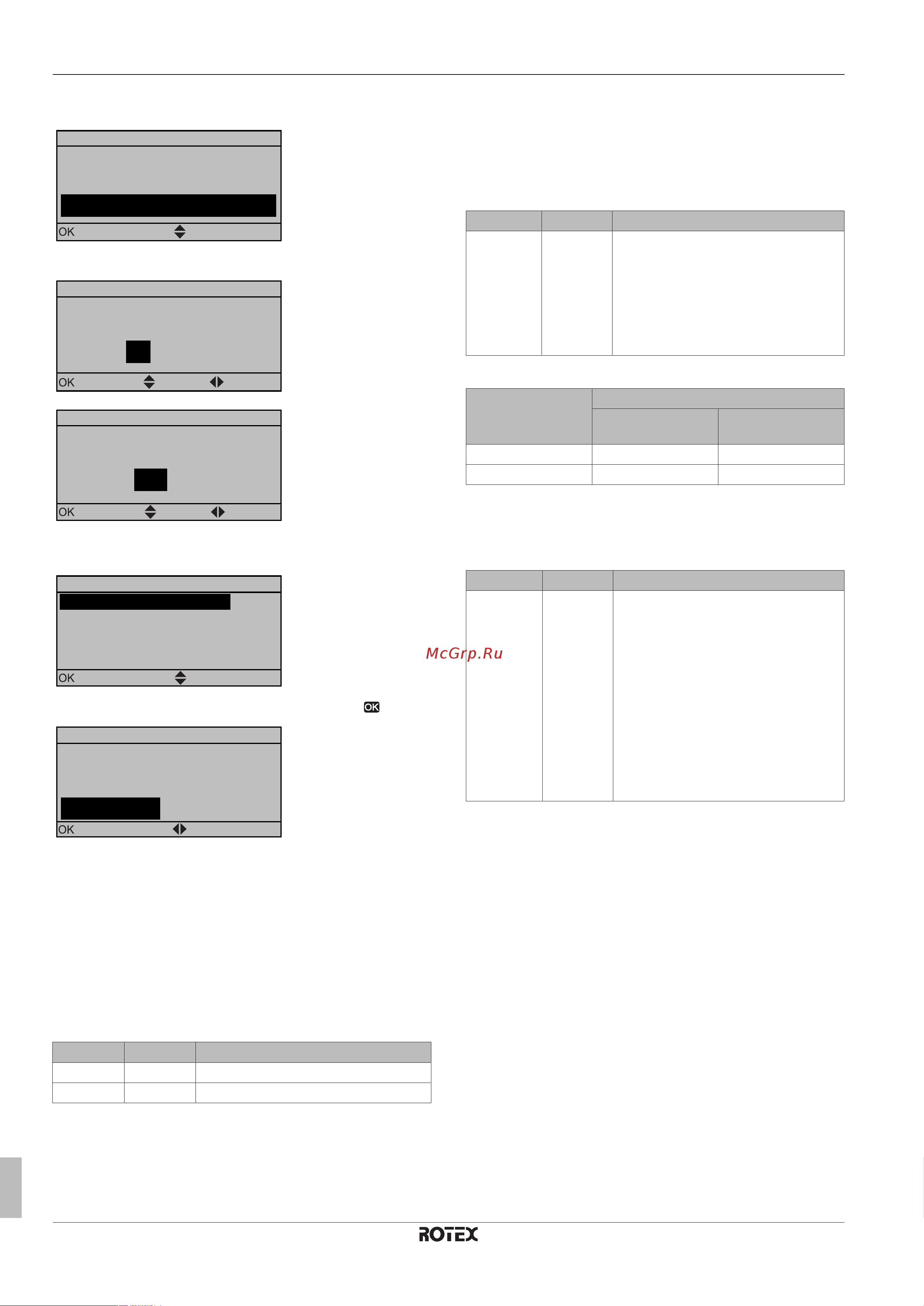

Daikin RHBH11CB [48/112] Configuration
![Daikin RHBH11CB [48/112] Configuration](/views2/1786504/page48/bg30.png)
8 Configuration
Installer reference guide
48
RRLQ004~008CA + RHBH/X04+08CB
ROTEX HPSU low temperature Bi‑bloc
4P384979-1B – 2016.02
1 At power ON, the quick wizard starts as long as the system
layout was NOT confirmed yet, by setting the language.
Language
Select the desired language
Confirm Adjust
2 Set the current date and time.
1 2012
Scroll
AdjustConfirm
Date
What is the date today?
Sun Jan
00 : 00
What is the current time?
Time
Confirm
Adjust
Scroll
3 Set the system layout settings: Standard, Options, Capacities.
For more details, see "8.2Basic configuration"on page48.
A.2 1
Scroll
Select
System layout
Standard
Options
Capacities
Confirm layout
4 After configuration, select Confirm layout and press .
Confirm layout
Please confirm the system
layout. The system will
restart and will be ready for
first startup.
OK
Cancel
Confirm
Adjust
5 The user interface re-initialises and you can proceed the
installation by setting the other applicable settings and
commissioning of the system.
When the installer settings are changed, the system will request to
confirm. When confirmation is complete, the screen will shortly turn
OFF and "busy" will be displayed for several seconds.
8.2 Basic configuration
8.2.1 Quick wizard: Language / time and date
# Code Description
[A.1] N/A Language
[1] N/A Time and date
8.2.2 Quick wizard: Standard
Backup heater configuration (only for *9W model)
The backup heater in a *9W model is adapted to be connected to
most common European electricity grids. Besides hardware
configuration, the grid type and the relay setting must be set on the
user interface.
# Code Description
[A.2.1.5] [5-0D] BUH type:
▪ 1 (1P,(1/1+2)): 6kW 1~230V (*9W)
▪ 3 (3P,(1/1+2)): 6kW 3~230V (*9W)
▪ 4 (3PN,(1/2)): 6kW 3N~400V (*9W)
▪ 5 (3PN,(1/1+2)): 9 kW 3N~ 400 V
(*9W)
Relay setting
Relay setting Backup heater operation
If backup heater
step 1 is active:
If backup heater
step 2 is active:
1/1+2 Relay 1 ON Relays 1+2 ON
1/2 Relay 1 ON Relay 2 ON
Space heating/cooling settings
The system can heat up or cool down a space. Depending on the
type of application, the space heating/cooling settings must be made
accordingly.
# Code Description
[A.2.1.7] [C-07] Unit control method:
▪ 0 (LWT control): Unit operation is
decided based on the leaving water
temperature regardless the actual
room temperature and/or heating or
cooling demand of the room.
▪ 1 (Ext RT control): Unit operation is
decided by the external thermostat or
equivalent (e.g. heat pump convector).
▪ 2 (RT control): Unit operation is
decided based on the ambient
temperature of the user interface.
