14 Technical data
Installer reference guide
90
RRLQ004~008CA + RHBH/X04+08CB
ROTEX HPSU low temperature Bi‑bloc
4P384979-1B – 2016.02
j Pressure relief valve
Prevents excessive water pressure in the water circuit by opening at
3bar.
k Refrigerant gas connection R410A
l Refrigerant liquid connection R410A
m Water inlet connection
n Drain and fill valves
o Shut-off valves (accessory)
Allows isolation of the indoor unit water circuit side from the
residential water circuit side.
p Water outlet connection
q Thermistors
Determines the water and refrigerant temperature at various points in
the circuit.
r Backup heater thermal fuse
The fuse is blown when the temperature becomes higher than the
backup heater thermal protector temperature.
s Backup heater thermal protector
The protector activates when the temperature of the backup heater
becomes too high.
t Backup heater
Provides additional heating in case of cold outdoor temperatures.
Also serves as backup in case of malfunctioning of the outdoor unit.
u Air valve

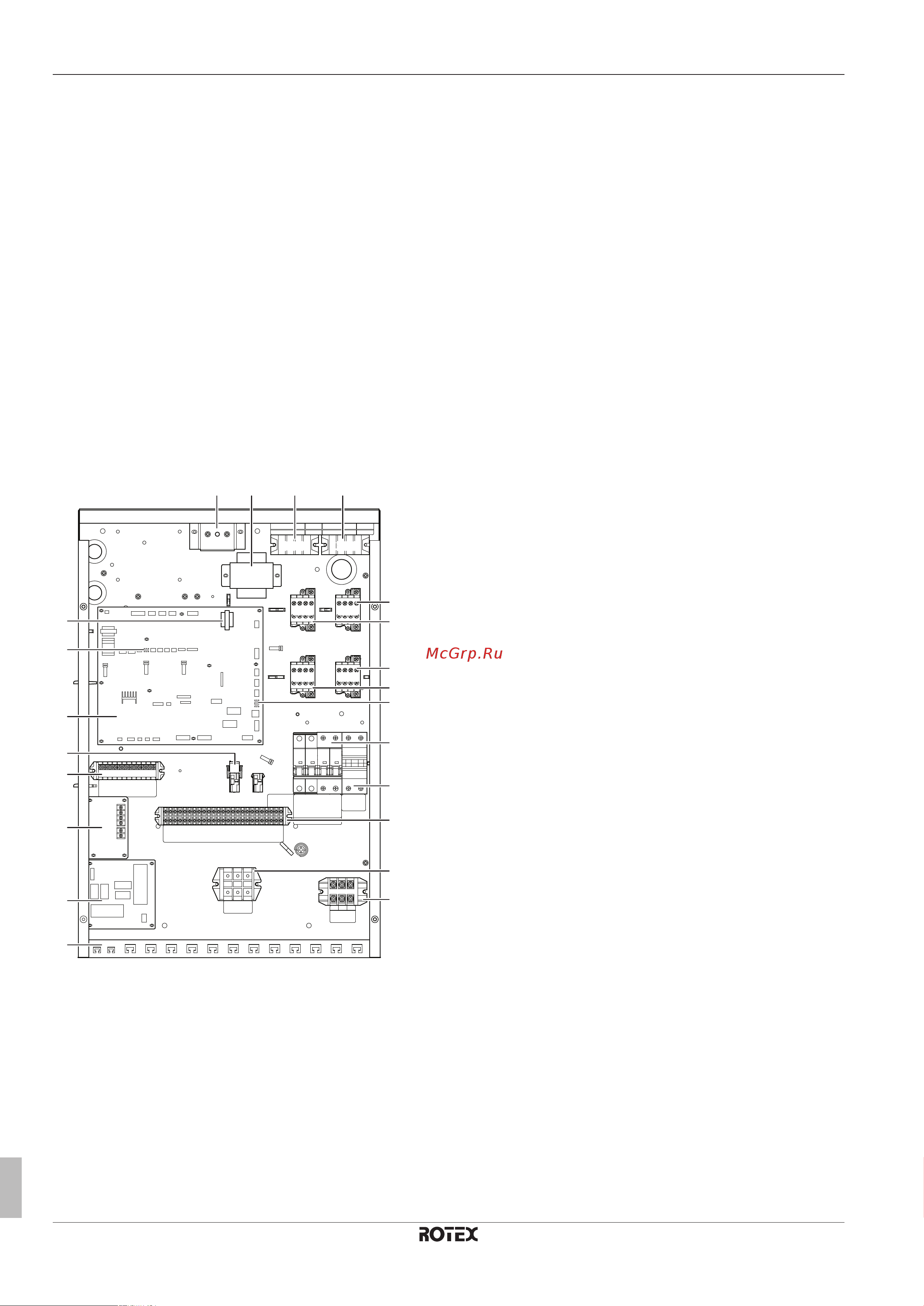

14.4.4 Components: Switch box (indoor unit)
X4M
F1B F2B
TR1
X5M
X2M
X6Y
X6YA X6YB
X1M
FU1
A1P
Q1L
K1M
K1M
X6M
X6M X7MX7M
K2M
K2M
K5M
K5M
K3M
K3M
d
d
a b c c
d
e
p
g
h
i
k
j
q
f
s
r
o
n
m
l
a Backup heater thermal protector Q1L
b Transformer TR1
c Terminals for backup heater X6M/X7M (*9W models only)
d Backup heater contactors K1M, K2M and K5M
e Booster heater contactor K3M (only for installations with a domestic
hot water tank)
f Connectors X6YA/X6YB/X6Y
g Backup heater circuit breaker F1B
h Booster heater circuit breaker F2B.
i Terminal block X2M (high voltage)
j Terminal block X4M.
k Terminal block X1M (to outdoor unit)
l Cable tie mountings
m Digital I/O PCB A4P (only for installations with digital I/O PCB kit)
n Demand PCB for power limitation
o Terminal block X5M (low voltage)
p Socket X13A, receives the K3M connector.
q Main PCB A1P
r Socket X9A, receives the thermistor connector. (Only for installations
with domestic hot water tank)
s PCB fuse FU1
