Daikin RHBH11CB [86/112] Technical data

14 Technical data

Installer reference guide

RRLQ004~008CA + RHBH/X04+08CB

ROTEX HPSU low temperature Bi‑bloc

4P384979-1B – 2016.02

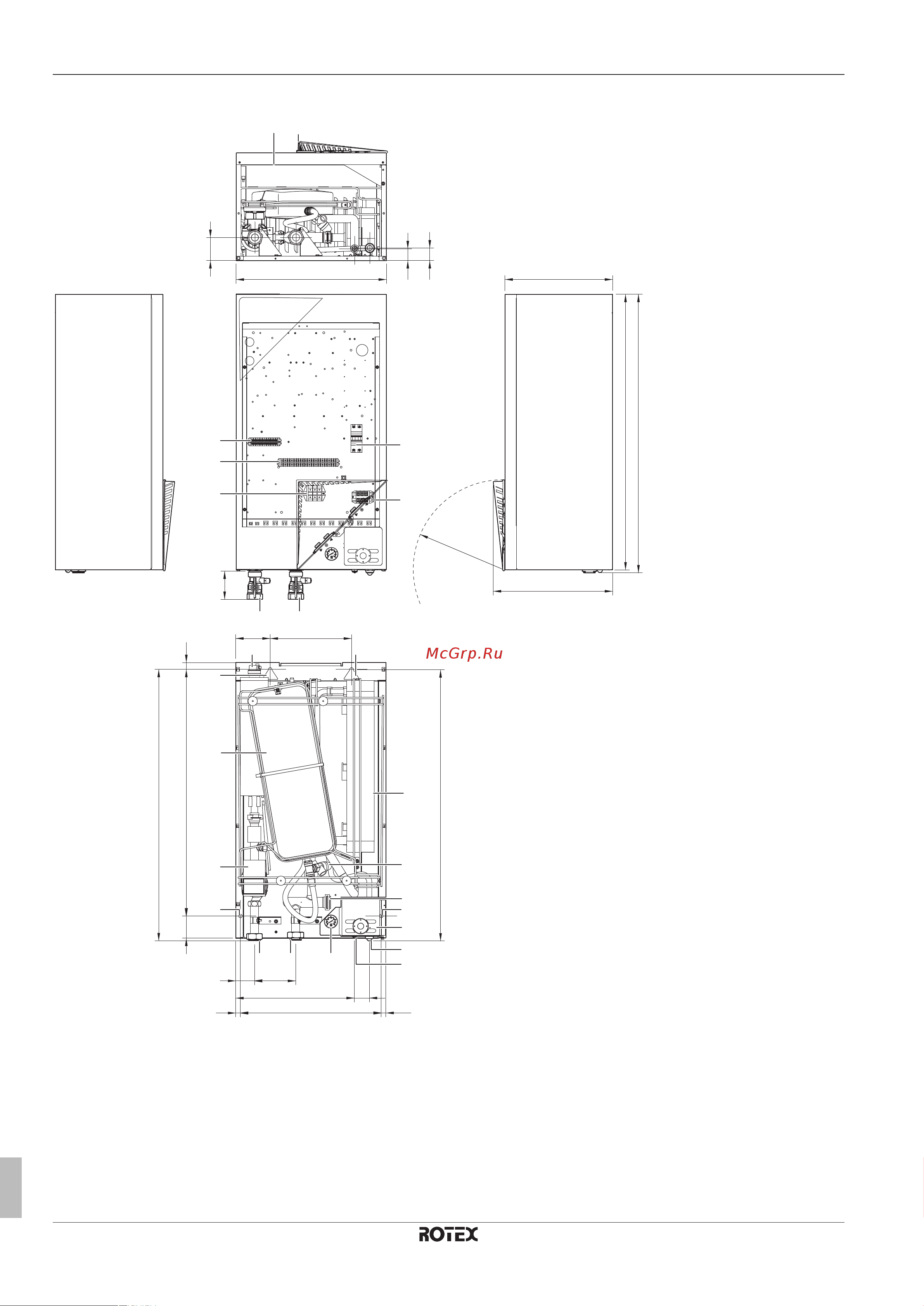

14.2.2 Dimensions and service space: Indoor unit

3D090501

480

110

260

788

867

450

131

380

867

381

344

881

890

R210

kcb

a a

i a

o p

a Holes (Ø12mm) for wall fixaxtion

b Water outlet connection (1‑1/4"FBSP)

c Water inlet connection (1‑1/4"FBSP)

d Refrigerant liquid connection Ø6.35mm flare connection

e Refrigerant suction connection Ø15.9mm flare connection

f Pump

g User interface

h Safety valve pressure

i Air purge

j Expansion vessel

k Pressure gauge

l Heat exchanger (refrigerant/water)

m Stop valve with drain/fill valve (1‑1/4"FBSP) (included accessory)

n Water filter
