4 Set-up and installation

Installation and maintenance instructions

ROTEX HPSU compact Ultra RHSX(B)-D

Heat pump (indoor unit) with integrated heat accumulator

008.1444444_01 – 11/2018 – EN

4 Set-up and installation

WARNING

Cooling systems (heating pumps), climate control systems

and heating devices that have been set up and installed in-

correctly can both endanger human life and health and be

impaired in their function.

▪ Work on the indoor unit (such as installation, repair, con-

nection and initial commissioning, for example) must

only be carried out by persons who are authorised, who

have successfully completed qualifying technical or vo-

cational training for the respective activity and who have

taken part in advanced training sessions recognised by

the relevant responsible authority. These include, in par-

ticular, certified heating engineers, qualified electricians

and HVAC specialists who, because of their professional

training and expert knowledge, have experience in the

professional installation and maintenance of heating,

cooling and air conditioning systems and heat pumps.

Incorrect set-up and installation would render the manufacturer's

guarantee void. If you have questions, please contact our Technical

Customer Service.

4.1 Dimensions and connection

dimensions

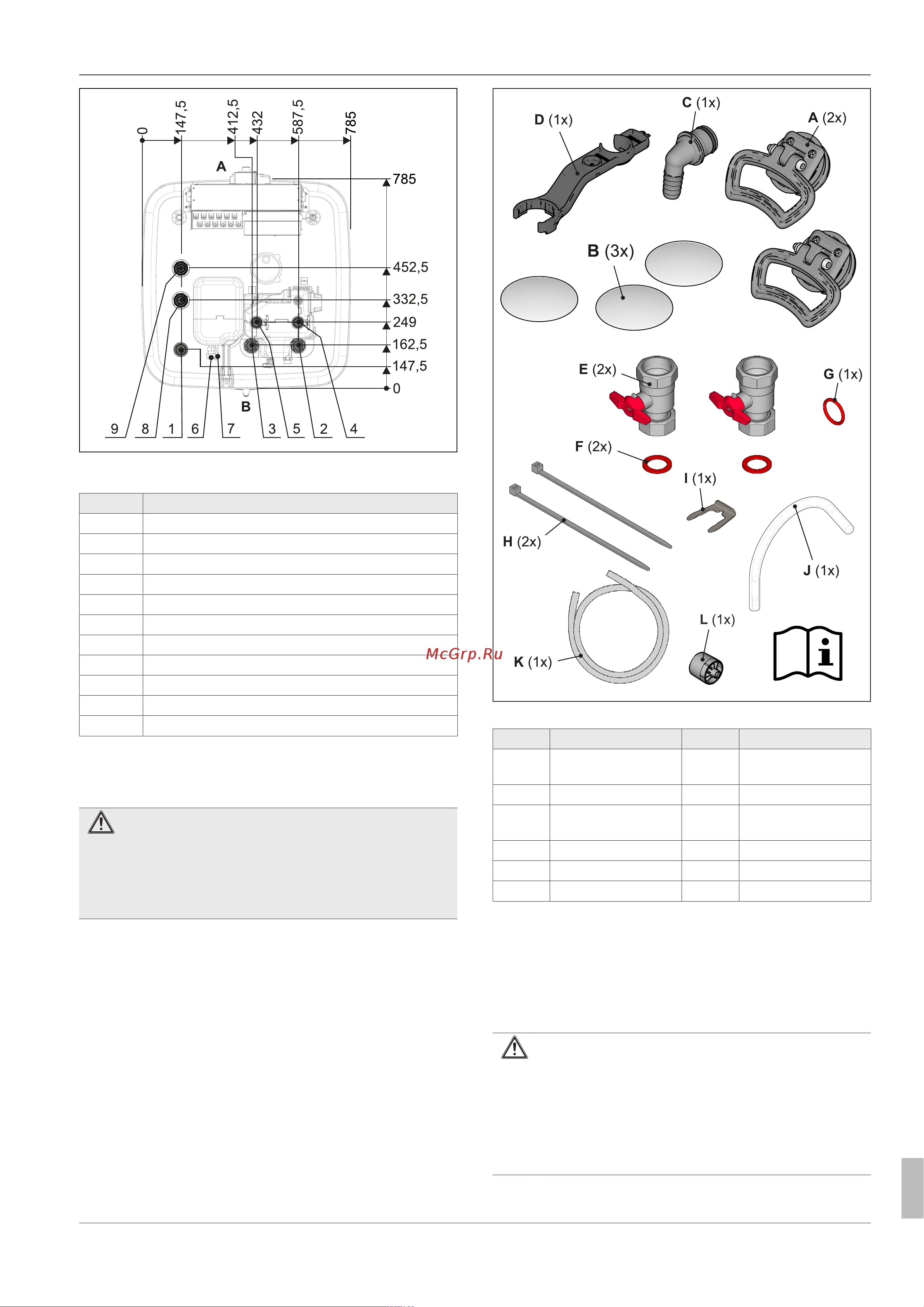

Dimensions …04P30D/…08P30D

Fig.4-1 Dimensions, side view - …04P30D/…08P30D

Fig.4-2 Dimensions, top of the device - Type …04P30D/…

08P30D

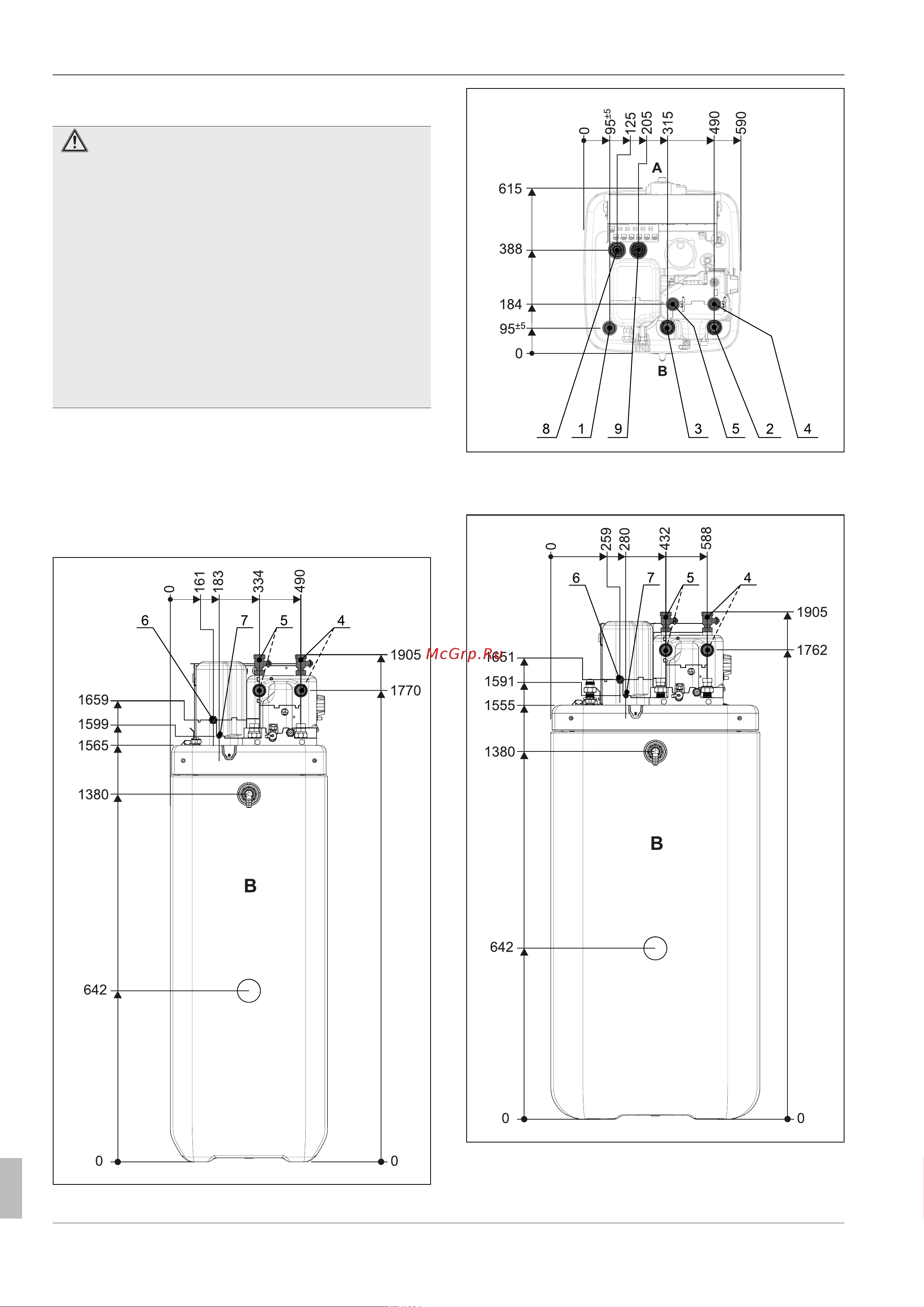

Dimensions …04P50D/…08P50D

Fig.4-3 Dimensions, side view - Type …04P50D/…08P50D
