Daikin RHSXB08P30D [20/68] Set up and installation

4 Set-up and installation

Installation and maintenance instructions

ROTEX HPSU compact Ultra RHSX(B)-D

Heat pump (indoor unit) with integrated heat accumulator

008.1444444_01 – 11/2018 – EN

CAUTION

If the indoor unit is connected to a cold water line where

steel pipes are used, chips can get into the stainless steel

corrugated pipe heat exchanger and remain there. This

can lead to contact corrosion damage and subsequently to

leakage.

▪ Flush the feed pipes before filling the heat exchanger.

▪ Install the dirt filter in the cold water supply (e.g. SAS 1

or SAS 2).

CAUTION:BIV ONLY

If the heat exchanger for pressurised solar system char-

ging (see Chap. 4.1, items8+ 9) is connected to an ex-

ternal heater (e.g. wood-burning boiler), the indoor unit

can be damaged or destroyed due to an excessively high

inflow temperature at these connections.

▪ The inflow temperature of the external heating unit

should be limited to max. 95°C.

CAUTION

Corrosion may be caused by air entering the heating water

network and by a quality of the heating water that does not

comply with the requirements in accordance with Require-

ments for the heating water. Corrosion products (particles)

thus created may clog pumps and valves and cause mal-

functions.

▪ Device may not be connected by permeable, flexible

lines.

▪ For potable water lines, observe the provisions of EN806,

DIN1988 and the additional applicable national regulations for

potable water installation.

▪ Install the indoor unit close to the withdrawal point to dispense

with the need for a circulation line. If a circulation line is mandat-

ory, it must be installed according to the schematic diagrams in

Chap. 6.1.

4.6.1 Connecting hydraulic lines

DANGER: RISK OF BURNING

There is a danger of scalding at hot water temperatures

over 65°C. This is possible when using solar energy if an

external heater is connected, the Legionella protection is

activated, or the target hot water temperature is set to be

greater than 65°C.

▪ Install a scalding protection (hot water mixer device (e.g.

VTA32)).

INFORMATION

The indoor unit is equipped with a pressure sensor. The

system pressure in monitored electronically and can be

displayed with the device switched on.

Nevertheless, we recommend installing a mechanical pres-

sure gauge between the indoor unit and the diaphragm ex-

pansion vessel, for example.

▪ Install the pressure gauge so that it is easy to see when

filling.

1 Check the cold water connection pressure (maximum 6bar).

▪ If a higher pressure is present in the domestic water pipe, a

pressure reducer will need to be installed.

2 Fix the hydraulic block in place with a screwdriver.

Fig.4-27 Fix the hydraulic block in place when connecting to the

top (left) or to the rear (right)

3 Establish hydraulic connections to the indoor unit.

▪ Refer to Chap. 4.1 for the position of the heater connections.

▪ Observe specified tightening torque (see Chap. 10.4)

▪ Install the line in such a way that the protective cover is simple

to put on after assembly.

▪ Connect the water for filling or refilling the heating system as

specified by EN1717/EN61770 to avoid contamination of

drinking water by return flow.

4 For rearward facing connections: Support hydraulic lines suit-

ably according to the spatial conditions.

Fig.4-28 Connection to the rear: Support hydraulic lines

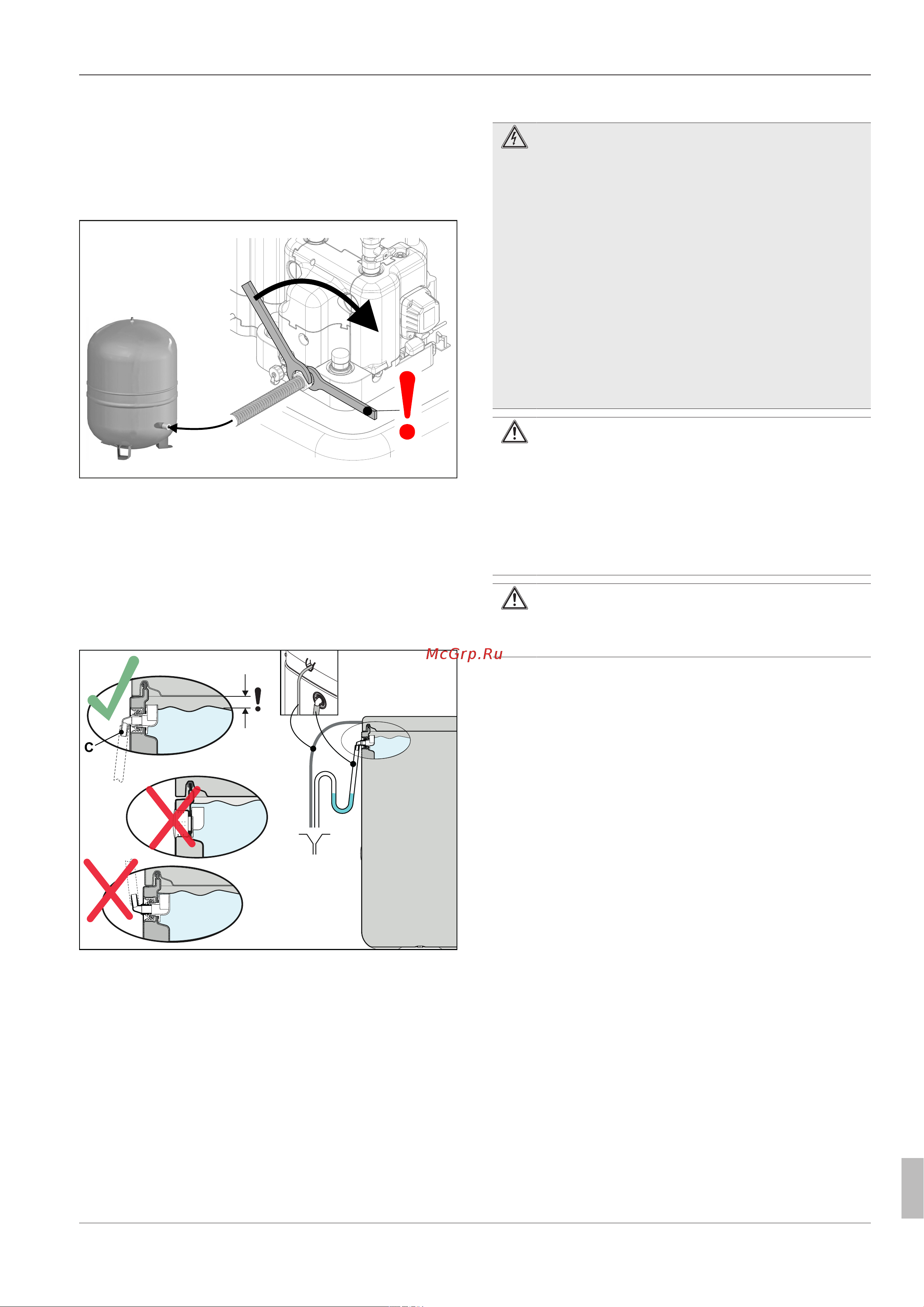

5 Connect the blow-off line to the safety over-pressure valve and

diaphragm expansion vessel in accordance with EN12828.

▪ Any steam or heating water which may escape must be drained

by a suitable blow-off line with constant gradient in a frost-pro-

tected, safe and observable manner.

▪ Install the line in such a way that the protective cover is simple

to put on after assembly.

▪ Check the seat of the drain hose on the safety pressure relief

valve. If necessary, connect and install a separate hose.

6 Connecting a diaphragm expansion vessel.

▪ Connect a suitably dimensioned and preset diaphragm expan-

sion vessel for the heating system. There may not be any hy-

draulic blocking elements between the heat generator and the

safety valve.

▪ Position the diaphragm expansion vessel in an easily access-

ible place (maintenance, parts replacement).
