Systems featuring a heat pump combined with tra-
ditional boiler are addressed to the renovation mar-
ket and/or to already existing networks equipped
with radiators.
According to statistical data, the heating season lasts
for about 7 months a year while a heat pump can satisfy
the overall installation needs for about 6 months. This
results in up to 80% fossil fuel economy.
System components:
1. Flexible joints
2. Metal mesh filter
3. Preheat vessel
7. Rubber shock-isolating mountings
Systems featuring a heat pump combined with tradi-
tional boiler guarantee the highest operating perform-
ances; they exploit the principle of water stratificaiton
in the storage tank.
The peculiar self-adapting regulation technology –
that is a standard part of the equipment’s electronic
management system – allows an autonomous and
automatic functioning of the installation.
Moreover, by exploiting the highest energy efficiency of
the two heat generators (i.e. heat pump and traditional
boiler), the electronic management system selects
which device is to be employed from time to time.

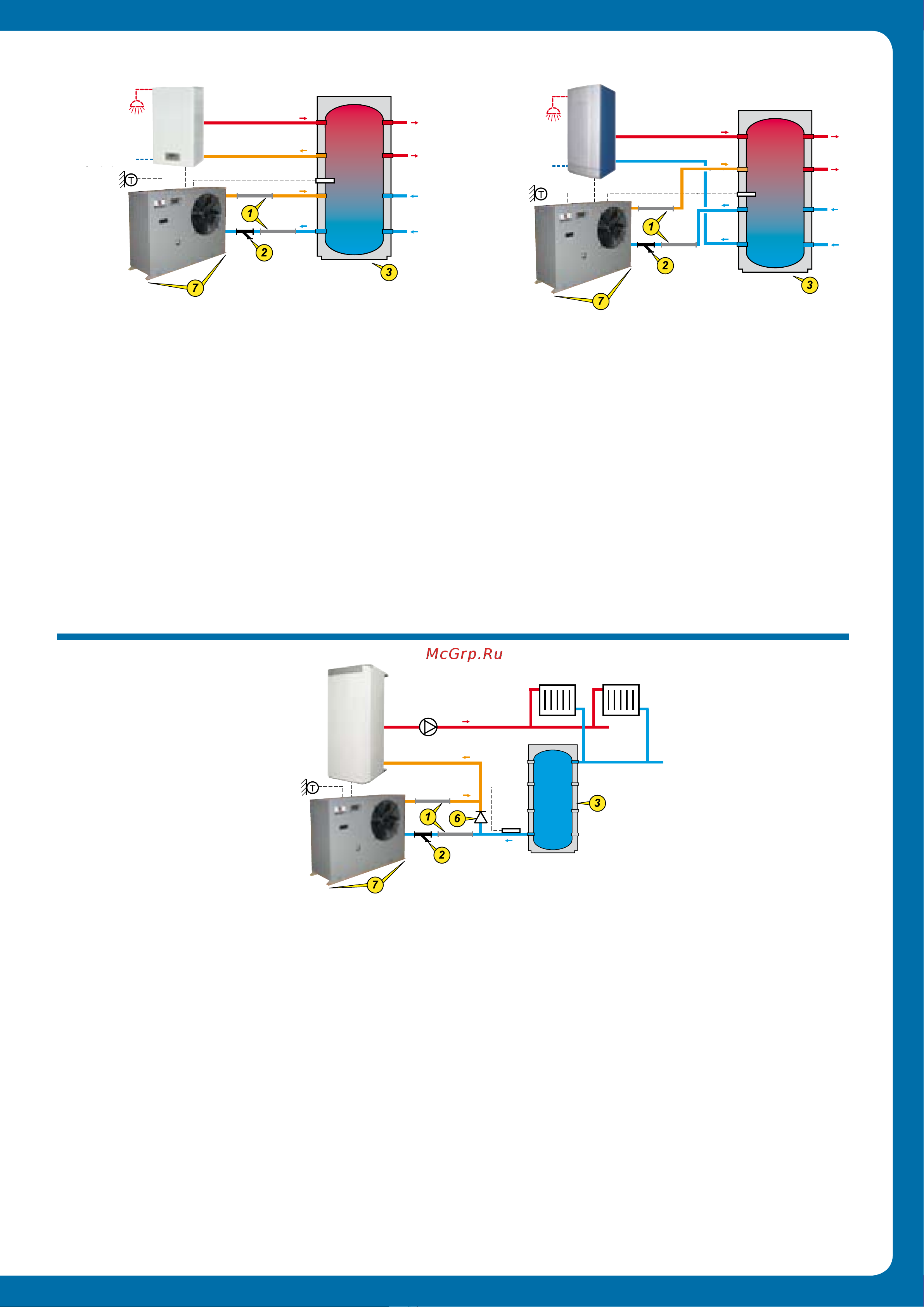

HEAT PUMP combined with a traditional boiler
ECS
Caldaia solo riscaldamento
o con produzione di acqua
sanitaria o circolare
Sonda di temperatura
acqua di ritorno
Serbatoio di
accumulo
Mandata
impianto
Ritorno
impianto
Sonda di
temperatura
esterna
Pompa di calore
Mod. BESST/R
Supporti antivibranti
ECS
Caldaia solo riscaldamento
o con produzione di acqua
sanitaria o circolare
Sonda di
temperatura
acqua di ritorno
Serbatoio di
accumulo
Mandata
impianto
Ritorno
impianto
Sonda di
temperatura
esterna
Pompa di calore
Mod. BESST/R
Supporti antivibranti
Systems featuring a heat pump combined with boil-
er for traditional heating purposes are addressed to
the renovation market and/or to already existing
networks equipped with radiators.
According to statistical data, the heating season lasts for
about 7 months a year while a heat pump can satisfy the
overall installation needs for about 6 months. This results
in up to 80% fossil fuel economy.
System components:
1. Flexible joints
2. Metal mesh filter
3. Storage tank
6. Non-return valve
7. Rubber shock-isolating mountings
Systems featuring a heat pump combined with boiler for
traditional heating purposes represent the most flexible
solution within a renovation context, since they need very
few changes. An appropriate water rate is to be supplied
to both the heat pump and terminal units (which shall not
be equipped with thermostatic valve).
The peculiar self-adapting regulation technology – that
is a standard part of the equipment’s electronic manage-
ment system – allows an autonomous and automatic
functioning of the installation. Moreover, by exploiting the
highest energy efficiency of the two heat generators (i.e.
heat pump and traditional boiler), the electronic manage-
ment system selects which device is to be employed
from time to time.
The non-return valve guarantees appropriate water cir-
culation even when the heat pump is not operating.
HEAT PUMP combined with a boiler for heating purposes only
Caldaia solo
riscaldamento
Sonda di
temperatura
acqua di
ritorno
Serbatoio di
accumulo
Sonda di
temperatura
esterna
Pompa di calore
Mod. BESST/R
Supporti antivibranti
boiler for heating
purposes only or for
domestic water supply
shock-isolating mountings
shock-isolating mountings
outside
temperature
probe
heat pump
model BESST
heat pump
model BESST
backflow water
temperature probe
system
output
boiler for heating
purposes only or for
domestic water supply
outside
temperature
probe
system
backflow
Storage
tank
backflow water
temperature probe
system
output
system
backflow
Storage
tank
heat pump
model BESST
outside
temperature
probe
boiler for heating
purposes only
shock-isolating mountings
Storage
tank
backflow
water
temperature
probe
