74
75

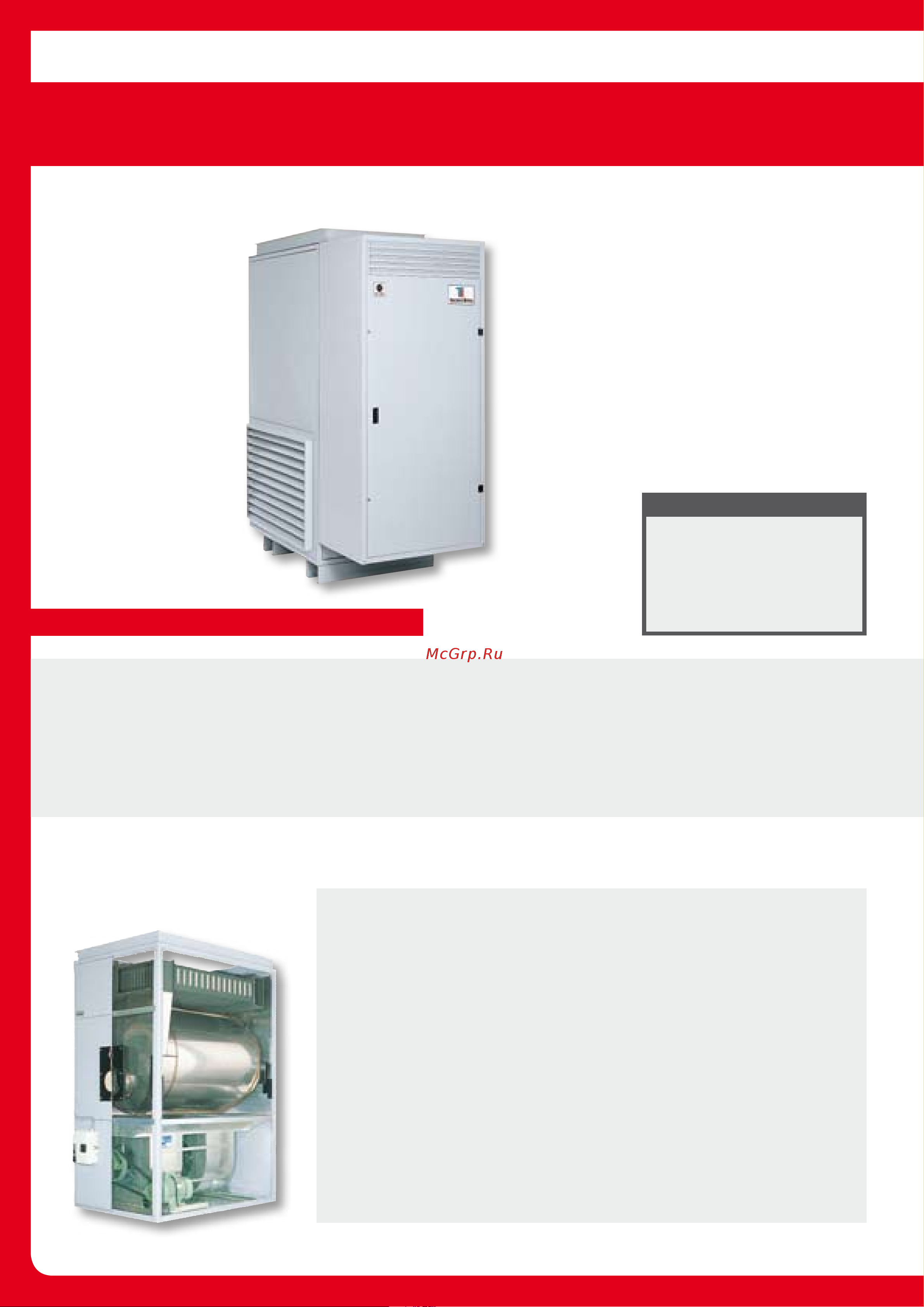

High-efficiency, floor-mounted warm air heaters, working with either gas or oil and suitable to be installed
outside. The external cabinet is made of painted galvanized steel sheet. Heaters are equipped with a protect-
ing element to shield the burner and the electric components and they also feature an inspection door (to be
opened by means of a tool) and air intake grid with rain-proof fins. These units are equipped with galvanized
steel shelf angles, stainless steel combustion chamber, centrifugal fans driven by variable gear transmission as
well as control and safety electronic devices. Heaters can come in the following versions: single-phase (On/Off),
two-phase, low Nox, with variable air flow rate, for very high static pressure and for very low temperatures.
TC-E/K
GAS AND OIL SPACE HEATERS
FOR OUTDOOR INSTALLATION
WARM AIR HEATERS
SERIES
CONSTRUCTION CHARACTERISTICS
EFFICIENCY ∼ 90%
• Cabinetconsistsofasteelsheetsupportingstructurewithdetachableclosing
panels internally lined with radiation-proof heat insulation and finely epoxy-
painted.
• Fangroupincludesoneormorecentrifugaldoubleintakefans,staticallyand
dynamically balanced, driven through a variable gear transmission by an elec-
tric motor complete with belt tightner.
• Electricequipment-forautomaticormanualfancontrolandforemergency
stopping of the burner in case of air overheating. Inclusive of electric switch-
board and FAN-LIMIT double thermostat.
High efficiency heat exchanger
• Combustion chamber made of AISI 430 18% chromium stainless steel,
flame-inversion model with low thermal load, cylindrical or ellipsoidal, perfectly
cooled in all of its points.
• Exchangeelementswith steel plateexhaustflues,flattubularsections, with
swirl impressions for maximum thermal efficiency.
• Exhaustmanifoldfrontandrear,steel,withwideinspectiondoorsforrational
and easy cleaning.
CERTIFIED IN ACCORDANCE WITH:
GAS DIRECTIVE 90/396/CEE
LOW TENSION DIRECTIVE 73/23/CEE
MACHINE DIRECTIVE 89/392/CEE
ELECTROMAGNETIC COMPATIBILITY
DIRECTIVE 89/336/CEE
