27

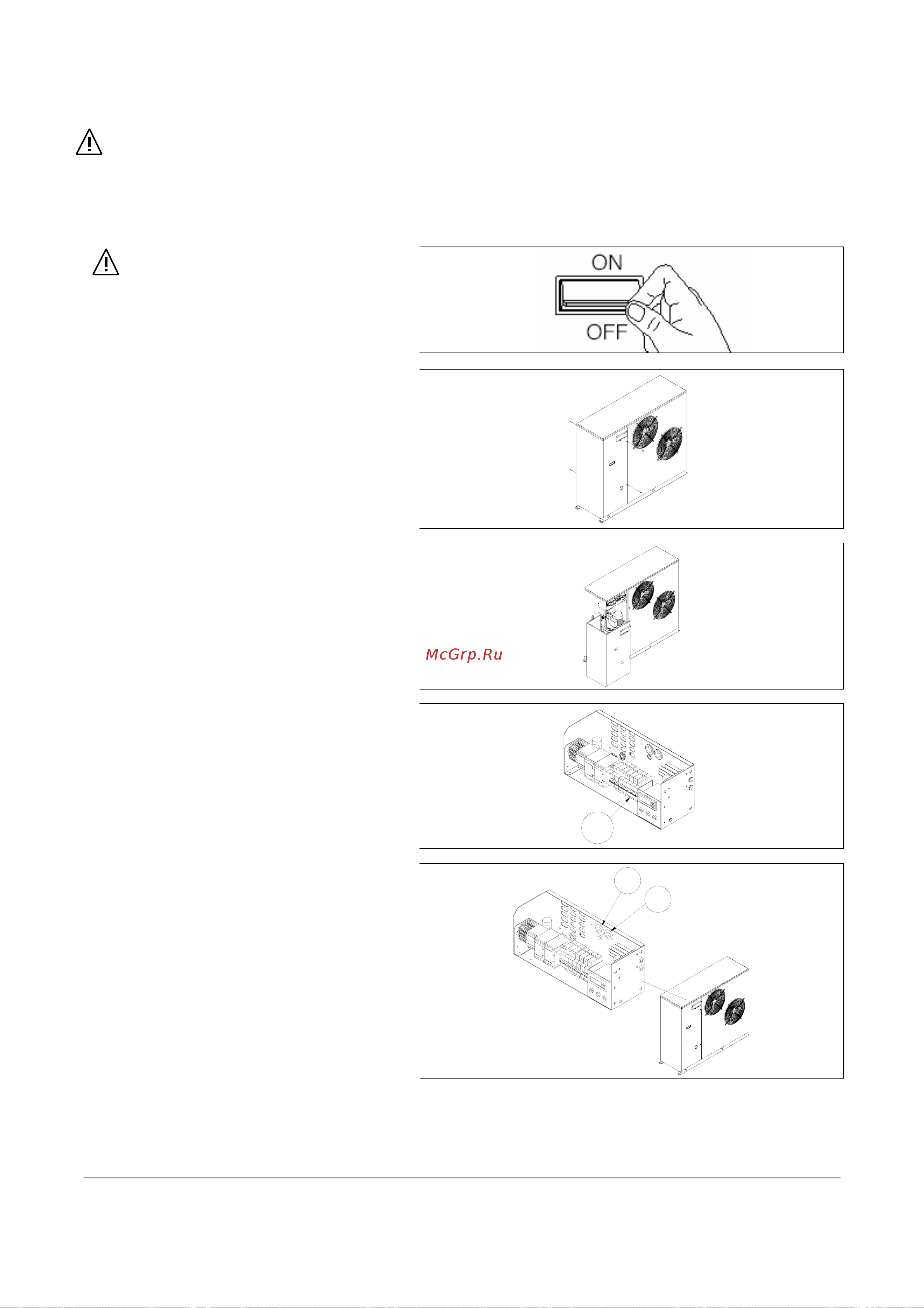

NOTE FOR FIRST STARTUP:
THE APPLIANCE MUST BE ALWAYS POWERED TO ENABLE CORRECT PRE-HEATING OF THE COMPRESOR OIL. THE
APPLIANCE MUST HAVE BEEN POWERED FOR AT LEAST EIGHT HOURS BEFORE THE FIRST STARTUP IS POSSIBLE.
The electric board with the connection terminal block is located inside the equipment, in the upper part of the circuit component
compartment.
Before starting any operations, turn OFF the
main system circuit breaker
To make the electrical connections:
– Undo the four fixation screws on the inspection panel
– Remove the panel
– Turn OFF the main equipment switch A
A
– Use hole A for the main power supply line and hole B for
the other external connection cables.
A
B
