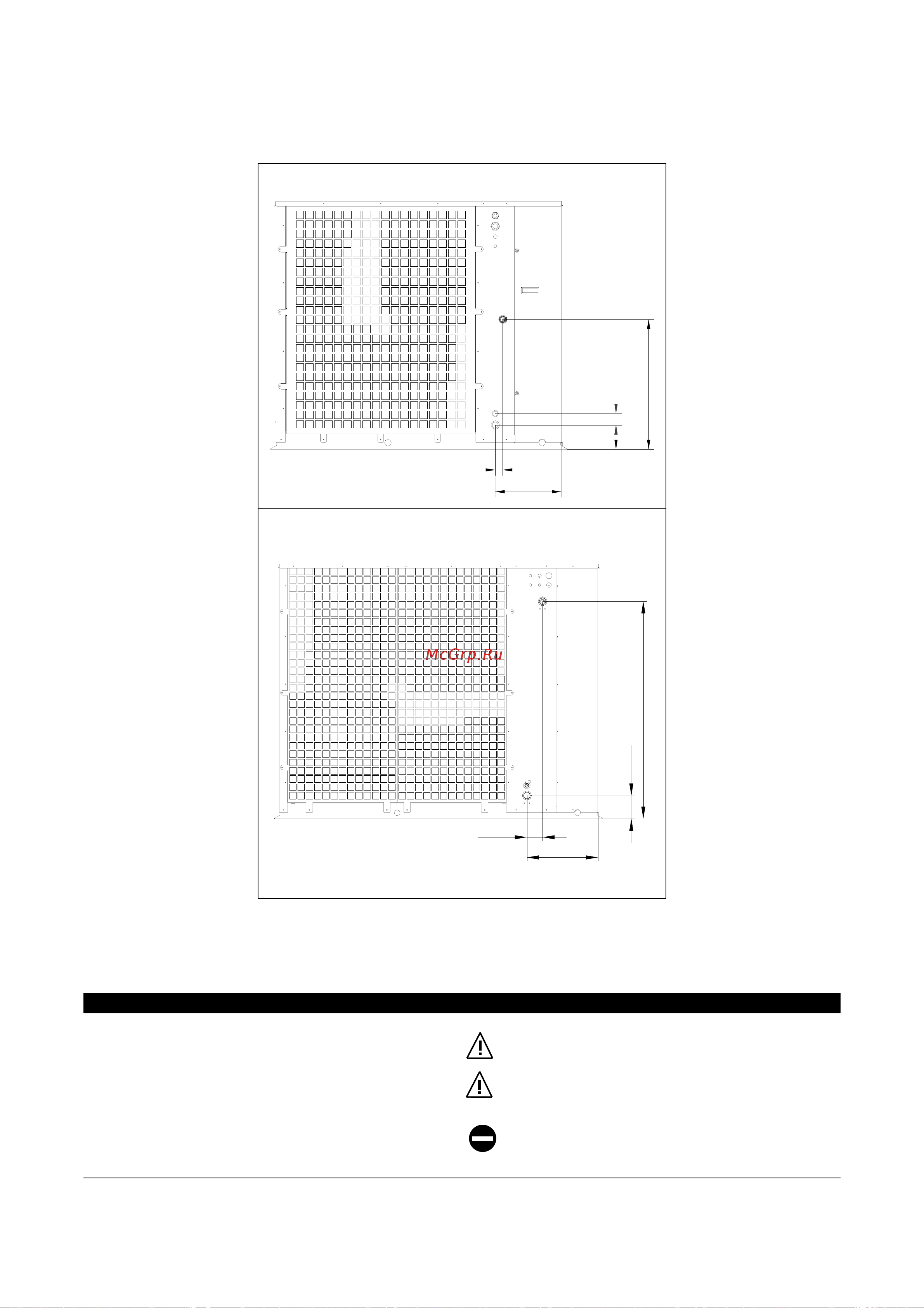

SIZE AND LOCATION OF CONNECTIONS
Type 5-6 and 13-14
350
40
130 60
685
R
r
M
Type 7-8 and 15-16
135
1285
95
M
R
r
425
M: delivery to system
R: return from system
r: water top-up
ELECTRICAL CONNECTIONS
Units leave the factory completely wired and ready for
connection to the mains electricity supply and for the flow switch
connection, which must be carried out by qualified personnel in
accordance with current legislation.
For any intervention of electrical nature, please refer to the wiring
diagrams contained in this manual.
It is also recommended to check the following::
– - if the characteristics of the mains power supply are adequate
For electrical connections use double insulation cables.
It is compulsory:
– to use a main magnetothermal, all-pole circuit breaker to
protect the mains line
– to establish an efficient earth connection.
The use of gas and water pipes for the appliance earth
