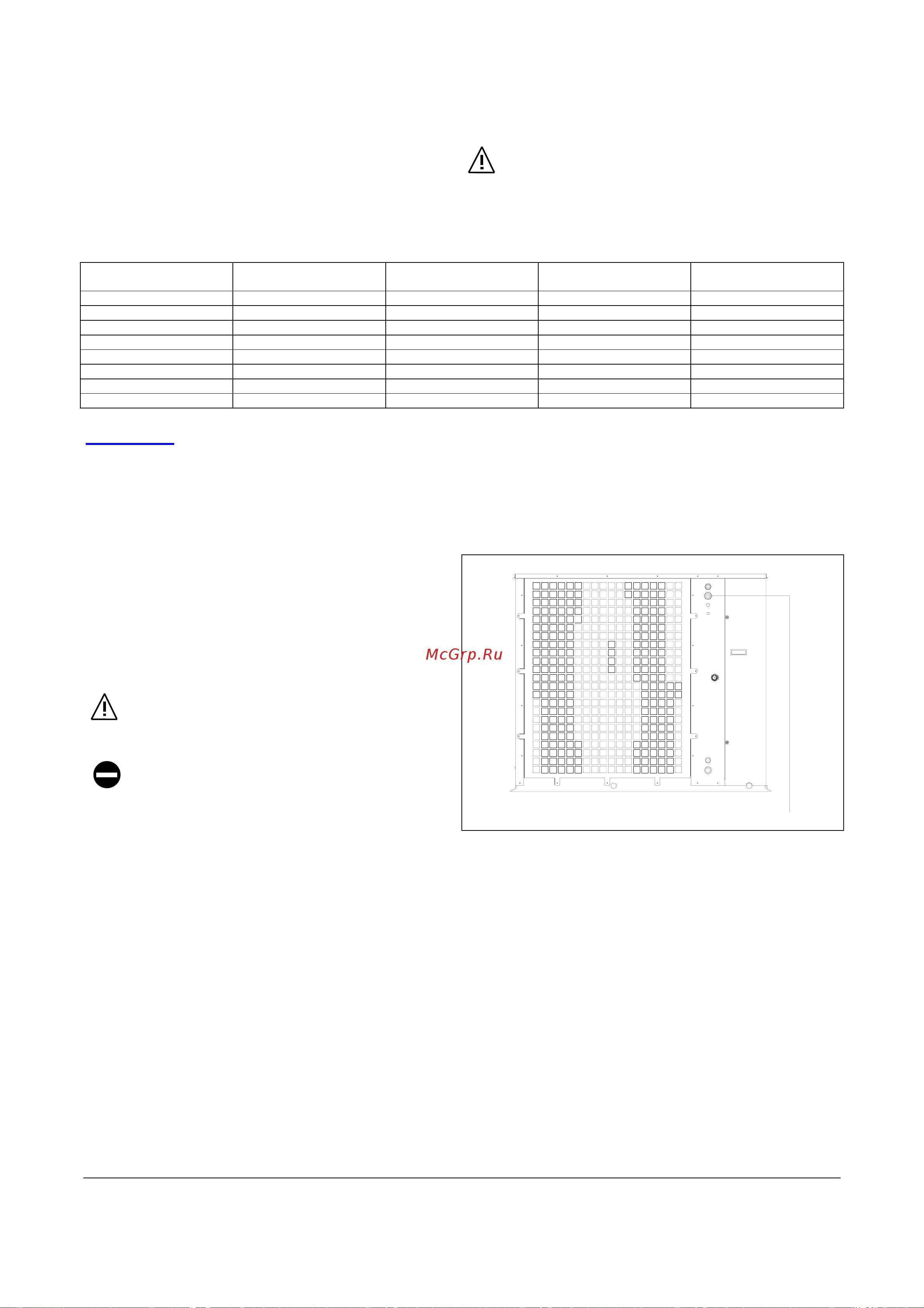

26
for the power input values indicated in the electrical
characteristics table, also considering any other equipment in
parallel operation.
– if the supply voltage matches the rated value ± 10%, with a 3%
maximum unbalance between phases.
connection is prohibited.
Failure to earth the appliance or observe the wiring diagrams
relieves the manufacturer of all liability for damage.
POWER SUPPLY LINE SIZING TABLE FOR BESST VERSION ONLY:
:
TYPE Supply voltage
(V-ph~Hz)
Max power input
(kW)
Max current input
(A)
Starting current
(A)
1 – 9
230 ~ 50 2.72 14.6 58
2 – 10
230 ~ 50 3.75 19.0 82
3 – 11
230 ~ 50 4.66 27.8 97
4 – 12
400 - 3N ~ 50 5.95 16.2 64
5 – 13
400 - 3N ~ 50 7.15 17.5 74
6 – 14
400 - 3N ~ 50 8.25 19.0 101
7 – 15
400 - 3N ~ 50 10.00 22.0 111
8 – 16
400 - 3N ~ 50 12.80 27.2 118
CAUTION:WHEN SIZING THE POWER SUPPLY LINE FOR THE BESST/R VERSION, THE
ELECTRIC RESISTANCE VALUE MENTIONED ON PAGE 7 (TECHNICAL DATA) MUST
ALSO BE CONSIDERED ,TOGETHER WITH THE POWER VALUE SHOWN IN THE
TABLE ABOVE
CABLE GLAND FOR POWER LINE ENTRY AND EXTERNAL
CONNECTIONS
The equipment is provided with proper cable glands for main
power supply cables and other electrical connections.
- Insert the main power supply cable into the larger cable gland
- Slide the cables from the outside guiding them toward the
electric board.
Avoid direct contact with the non-insulated copper pipes
and the compressor.
The power supply cables should not enter the appliance
in positions which are not specifically shown in this
manual.
Cable gland for power line entry and external connections.
