3 x Operation
Daikin Control unit
RoCon mb
008.1446899_00 – 07/2019 – EN
Operating instructions
11
Displaying the operating data overview
On the "Overview" information level, the RoCon mb controller's
display shows the current operating data for the Daikin
Altherma M ECH
2
O.
The display of the operating data is split over several screen
pages. Adjust the rotary button to navigate between the screen
pages.
Short des-
ignation
Explanation of the display value
Page 1
Mode Current heat pump mode:
- - -: No heat or cooling request
: Heating
: Cooling
: Hot water generation
: Automatic defrost function active
Ext Current heat pump energy mode:
LT: EVU function HT/NT active and off-peak.
HT: EVU function HT/NT active and peak.
SGN: EVU function Smart Grid active, normal
operation.
SG1: EVU function Smart Grid active, shut-off: no
heat pump operation, no frost protection function.
SG2: EVU function Smart Grid active, switch-on
recommendation, operation at higher target
temperatures, inexpensive electricity.
SG3: EVU function Smart Grid active, switch-on
command and storage tank charging to 70 °C,
inexpensive electricity
- - -: No external mode active, heat pump operates
in standard mode.
RT Parameter [Room thermostat] / [Interlink fct]
= Off: - - -
Parameter [Room thermostat] = On:
– : Heat or cooling request
–
: No heat requirement
Parameter [Interlink fct] = On (priority):
– - - -: Frost protection only
– IL1: Normal target feed temperature
– IL2:
– In heating mode, increased target feed
temperature
– In cooling mode, reduced target feed tem-
perature
Pump Current status of the internal heating circulation
pump
V Actual flow rate in the heating system
EHS Current output of the backup heater in kW
Page 2
TV Current feed temperature downstream of the plate
heat exchanger (t
V1
)
TVBH Current heating feed temperature, poss. down-
stream of the heating support heat exchanger
(t
V, BH
)
TR Current temperature of heating return (t
R1
)
Tdhw Current temperature in the hot water storage tank
(t
DHW
)
TA Current outside temperature (measured by the
heat pump outdoor unit temperature sensor)
Psyst Current water-side pressure in the heating system
Page 3
BPV Current position of mixing valve 3UVB1
(100% = A, 0% = B)
3UVD Current position of mixing valve 3UV DHW
(100% = B, 0% = A)
TA2 Current outside temperature (measured by the op-
tional outside temperature sensor EKRSC1)
Tliq2 Current refrigerant temperature (t
L2
)
quiet Indicates the whisper mode status
Glycol Glycol present: 0 (No) / 1 (Yes)
Tab. 3-5 Explanation of the operating data displayed as an overview
On
1205 l/h
3 kW
- - -
- - -
48°C42°C
1°C
1,9 bar36°C
44°C
46°C0%
On
2°C
0%
Mode:
Ext:
RT:
Pump:
V:
EHS:
TV:
TVBH:
TR:
Tdhw:
TA:
Psyst:
BPV:
3UVD:
TA2:
Tliq2:
quiet:
0
Glycol:
Info
Overview
Water Pressure

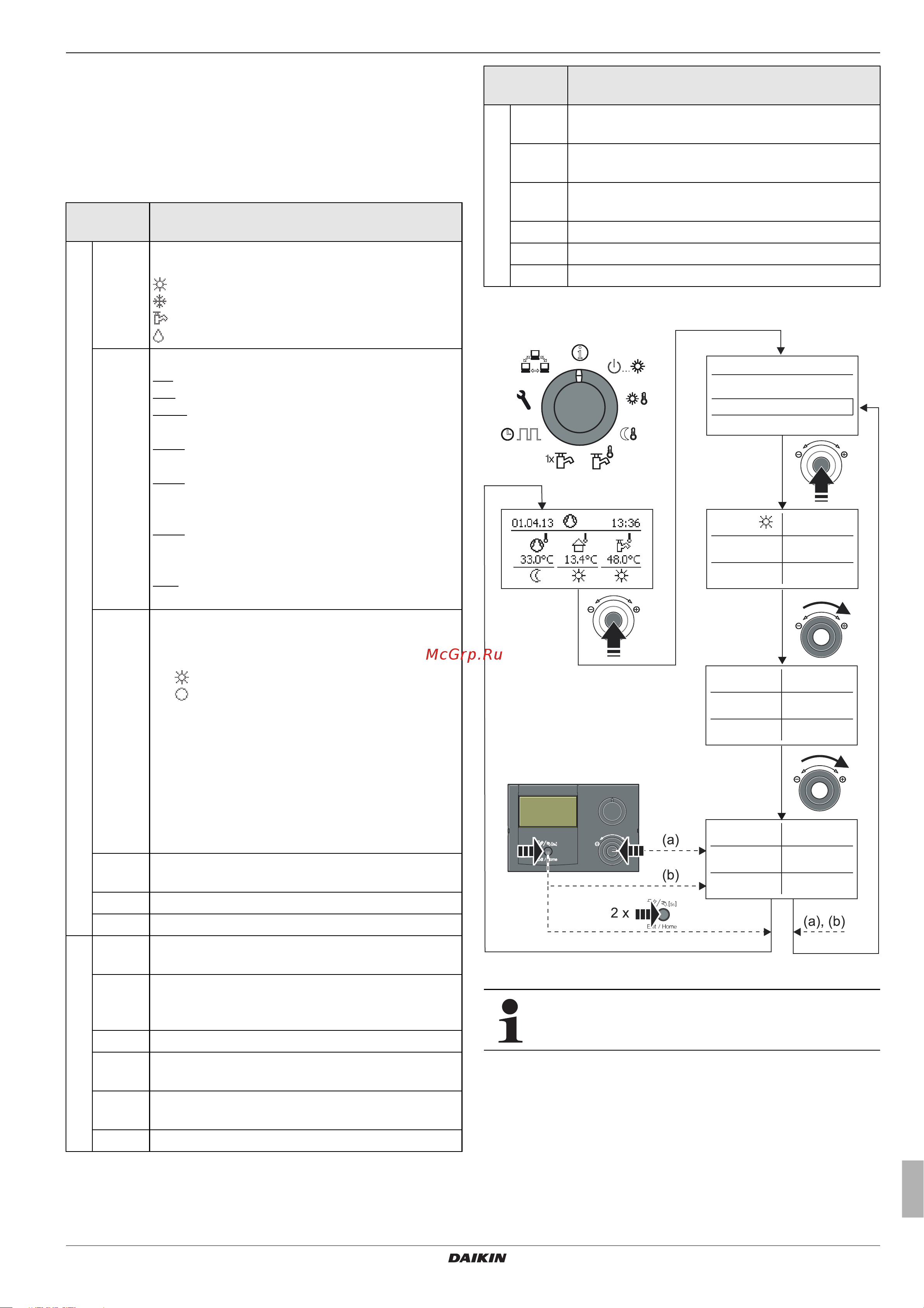

Fig. 3-5 Displaying the operating data overview
At low return flow temperatures and with glycol in the
system, only "ffff" is displayed as the volumetric flow, no
current value.
Short des-
ignation
Explanation of the display value
