3 x Operation
Daikin Control unit
RoCon mb
008.1446899_00 – 07/2019 – EN
Operating instructions
17
3.4.8 System settings
In the "Configuration" rotary switch position, basic setting
of the RoCon mb controller and system configuration for the
installation environment of the Daikin Altherma M ECH
2
O, the
direct heating circuit, hot water preparation and any optionally
connected components are carried out.
Depending on the access authorisation (user or expert), different
parameters are available. Several parameters can only be ac-
cessed by the heating expert.
Setting the LCD display, language, date, time
An internally pre-programmed calendar ensures an au-
tomatic timeshift for the annually repeating sum-
mertime/wintertime changeover dates.
● Set the rotary switch to the "Configuration"
position.
An overview is displayed.
● Use the rotary button to select the "Setup" level.
An overview is displayed.
● With the rotary button, select the parameters [LCD
Brightness] and [LCD Illum Time], and change them if
desired.
● With the rotary button, select and confirm the parameters
[Language], [Date] or [Time].
● Use the rotary button to select and change the value to be
changed within the respective display.
● Confirm the selection with a brief push of the rotary button.
Change has been accepted. Jump back to previous dis-
play.
Detailed explanations and possible setting values of this rotary switch setting can be
found in chap. 3.6 and in chap. 6.2.
3.4.9 Terminal function
In the "Remote Param" rotary switch setting, other devices
(mixer module control unit or heat generator control components)
integrated in the RoCon system via the CAN bus can also be op-
erated and parametrised as long as the respective control unit
has the required authorisation (see also chap. 4.3).
A list of the recognised devices
is displayed for selection on the
display after activation of the
"Bus - Scan" (external devices
and local device).
After selection and confir-
mation of an external device,
the terminal function for this
device is activated and the as-
sociated standard display for
this device is shown on the
display.
The operating component is
then in terminal operation.
Remote Param
Bus - Scan
No selection
Fig. 3-9 Display of the "Remote
Param" level during
commissioning or after
interim disconnection
from the mains
The local control unit functions as a remote control for the ex-
ternal device. In this case, all the control functions are performed
and saved 1:1 as on the external device.
The different application and parametrisation options for the use
of the devices and control units in the RoCon system connected
via the CAN bus are described in chap. 4.3.
Remote Param
Bus - Scan
No selection
Remote Param
Bus - Scan
No selection
Remote Param
No selection
Contr BM1/BE1 #X
Mix Valve #X
Remote Param
Contr BM1/BE1 #X
Mix Valve #X
Remote Param
Contr BM1/BE1 #X
Mix Valve #X
B1 RoCon B1 control panel of the Altherma M ECH
2
O
Bus CAN bus (connection line between RoCon devices
and control units)
H
1
Direct heating circuit (e.g. radiators)
H
2
Mixed heating circuit (e.g. floor heating)
M1 EHS157068 mixer module
U1 EHS157034 room station
WE1 Heat generator Altherma M ECH
2
O

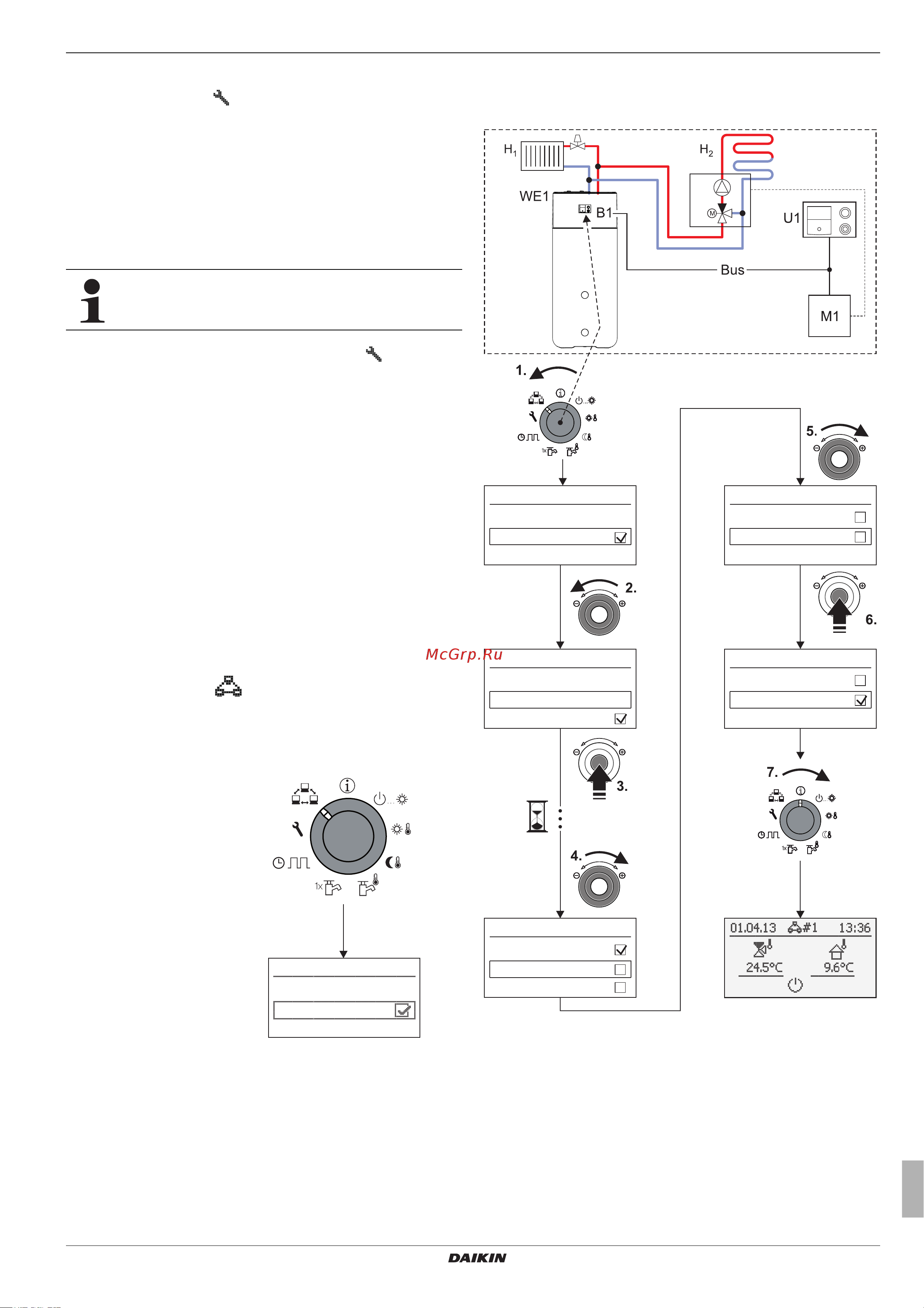

Fig. 3-10 Example of "Bus - Scan" on a heating system with 1 heat gen-
erator, 1 mix valve, 1 room station and activation of the termi-
nal function for remote control of the mixer module
