3 x Operation
Operating instructions
12
Daikin Control unit
RoCon mb
008.1446899_00 – 07/2019 – EN
Displaying the water pressure
On the RoCon mb control unit, the system pressure (water
pressure) of the internal circuit (direct heating circuit) can be dis-
played when it is switched on. The water pressure is the first info
parameter available after the operating data overview (see
fig. 3-6).
The permissible water pressure range during operation is de-
pendent on the Daikin Altherma M ECH
2
O and the heating
system. The target values and thresholds may only be set by the
heating expert. If the water pressure drops below the minimum
value (set parameter value), it must be increased by topping up
the system (see Daikin Altherma M ECH
2
O installation instruc-
tions, chapter entitled "Inspection and maintenance").
The pressure limits for safety shut-off and the target
pressure can be set in the parameter setting on the
"System Configuration" level.
Info
Overview
Water Pressure
T-HS
Water Pressure

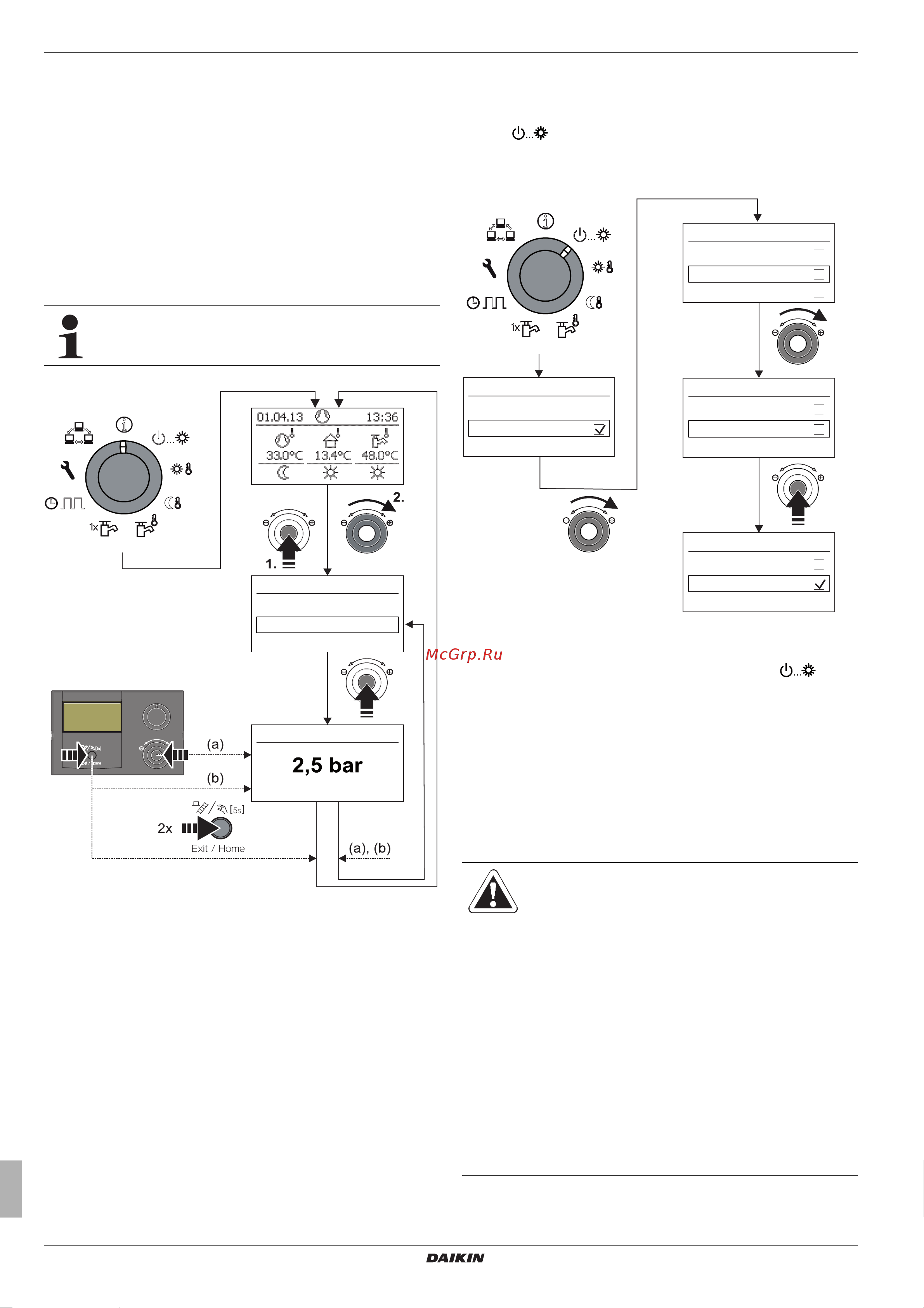

Fig. 3-6 Displaying info values (e.g. system pressure)
3.4.2 Setting the operating mode
The operating mode in which the Daikin Altherma M ECH
2
O is to
operate is selected using the rotary switch in the "Operating
Mode"
position.
The selected operating mode is activated by briefly pressing the
rotary button.
Operating Mode
Standby
Reducing
Operating Mode
Heating
Cooling
Summer
Operating Mode
Summer
Automatic 1
Automatic 2
Operating Mode
Summer
Automatic 1
Automatic 2
Fig. 3-7 Changing the operating mode
(e.g. from "Standby" to "Automatic 1")
● Set the rotary switch to the "Operating Mode"
position.
An overview is displayed.
● Use the rotary button to select the required operating mode.
● Confirm the selection with a brief push of the rotary button.
Daikin Altherma M ECH
2
O operates according to the set
operating mode.
The current operating mode is indicated by an appropriate
symbol on the standard display.
Operating mode Standby (Stand-by)
CAUTION!
A heating system that is not protected against
frost can freeze in the event of frost and thus be
damaged.
● Add glycol to the heating water circuit (see
installation and maintenance instructions)
● Alternatively, drain the heating system on the
water side if there is a danger of frost.
● If the heating system is not drained, the
power supply must be ensured and the
external main switch must remain switched
on if there is a danger of frost.
