38
FA ROTEX RoCon mb • 09/2017
5 x Parameter overview

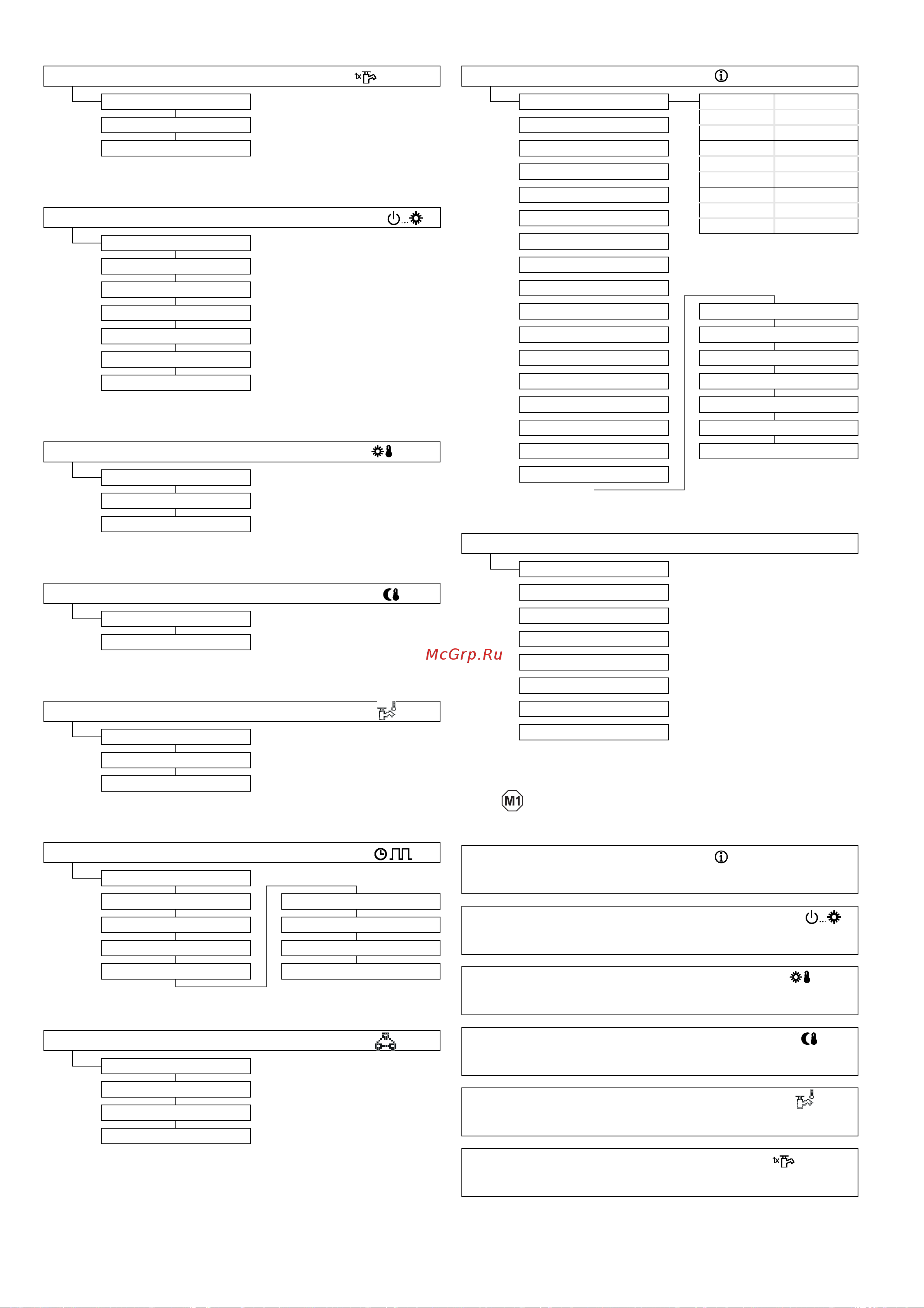

Tab. 5-3 Parameters in the "DHW Install" rotary switch setting
Tab. 5-4 Parameters in the "Operating Mode" rotary switch setting
Tab. 5-5 Parameters in the "Set Temp Day" rotary switch setting
Tab. 5-6 Parameters in the "Set Temp Night" rotary switch setting
Tab. 5-7 Parameters in the "DHW Set Temp" rotary switch setting
Tab. 5-8 Parameters in the "Time Program" rotary switch setting
Tab. 5-9 Parameters in the "Remote Param" rotary switch setting
Tab. 5-10 Parameters in the "Info" rotary switch setting
Tab. 5-11 Parameters in "Special Level" level
5.3 Parameter levels for the RoCon M1 mixer
module
5.2.2 Rotary switch setting: DHW Install
1x Hot Water
Hyst HP
Timer BOH
5.2.3 Rotary switch setting: Operating Mode
Standby
Reducing
Heating
Cooling
Summer
Automatic 1
Automatic 2
5.2.4 Rotary switch setting: Set Temp Day
T-Room 1 Setpoint
T-Room 2 Setpoint
T-Room 3 Setpoint
5.2.5 Rotary switch setting: Set Temp Night
T-Reduced
T-Absence
5.2.6 Rotary switch setting: DHW Set Temp
T-DHW Setpoint 1
T-DHW Setpoint 2
T-DHW Setpoint 3
5.2.7 Rotary switch setting: Time Program
Party
Away HC Program 2
Vacation DHW Program 1
Holiday DHW Program 2
HC Program 1 Circulation Time
5.2.8 Rotary switch setting: Remote Param
Bus - Scan
No selection
Contr BM1/BE1 #X
Mix Valve #X
5.2.9 Rotary switch setting: Info
Overview Mode: Pump:
Ext: V:
Water Pressure
RT: EHS:
T-HS TV: Tdhw:
TVBH: TA:
T-HS Setpoint
TR: Psyst:
T-Outside BPV: Tliq2:
3UVD: quiet:
T-DHW
TA2: Glycol:
T-DHW Setpoint
(see also chap. 3,
fig. 3-5)T-Return
Flow Rate
T-HC Qsc
T-HC Setpoint Qch
Status HS pump QWP
Runtime Compressor Qdhw
Runtime Pump HS type
Mixer Position Sw Nr B1/U1
Qboh Sw Nr Controller
Qchhp
5.2.10 Exit key: Special function
Manual Operation
FA failure
Protocol
Delete message
RoCon B1/U1 Reset
Parameter Reset
Timeprog Reset
Return
5.3.1 Rotary switch setting: Info
See chap. 5.2.9.
5.3.2 Rotary switch setting: Operating Mode
See chap. 5.2.3.
5.3.3 Rotary switch setting: Set Temp Day
See chap. 5.2.4.
5.3.4 Rotary switch setting: Set Temp Night
See chap. 5.2.5.
5.3.5 Rotary switch setting: DHW Set Temp
No function.
5.3.6 Rotary switch setting: DHW Install
No function.
