56
FA ROTEX RoCon mb • 09/2017
7 x Errors, malfunctions and messages
7.2 Emergency operation
In the event of incorrect electronic controller settings or 3-way
switch valve malfunctions, emergency heating operation can be
maintained by activating the "Manual Operation" special
function on the controller (see chap.
3.5.1 and the supple-
mentary notes in the installation and maintenance instruc-
tions of the ROTEX HPSU monobloc compact).
7.3 EHS emergency operation
If the heat pump fails, the backup heater can be used as emer-
gency heating, and can undertake all heating requirements either
automatically or non-automatically (see chap. 3.4.13).
7.4 Malfunctions and fault codes
See ROTEX HPSU monobloc compact installation and mainte-
nance instructions; chapter entitled "Faults, malfunctions, mes-
sages".
To ensure that the error is not caused by incorrect set-
tings, reset all parameters to the factory settings before
any possible replacement of components (see
chap.
3.6.12).
If you are unable to determine the cause of the fault yourself,
please consult a ROTEX service technician.
To do this, please have the important device data available (see
fig. 7-4 for the procedure):
– Type and manufacturer number of the ROTEX HPSU mono-
bloc compact (see heat pump type plate).
– Software versions (see fig. 7-4) of:
a: RoCon B1 control panel [Sw Nr B1/U1]
b: RoCon BM1 printed circuit board [Sw Nr Controller]
– For optional RoCon system components:
RoCon U1 [Sw Nr B1/U1]
RoCon M1 [Sw Nr mixing valve]

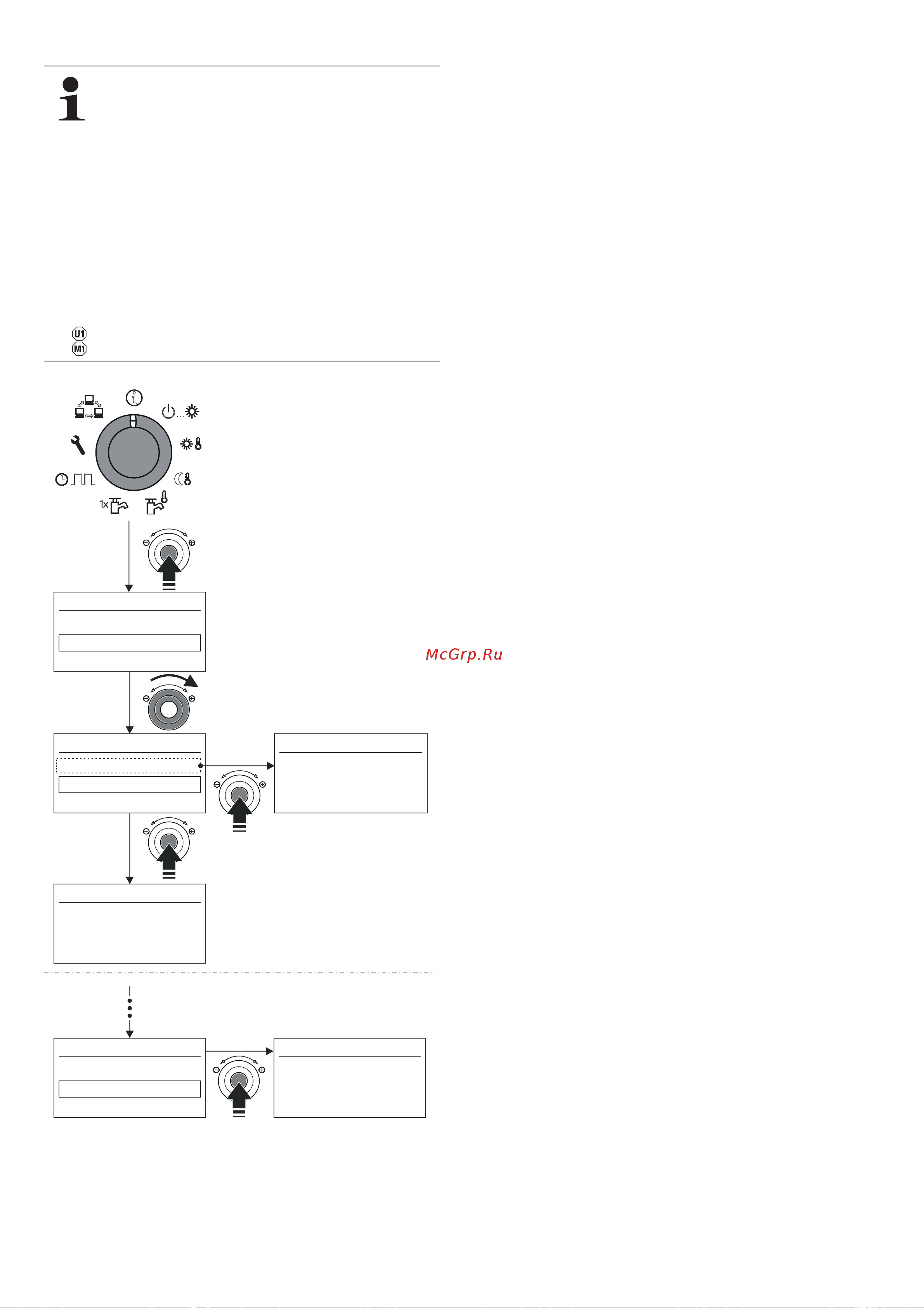

Fig. 7-4 Software information of the controller components
425
367
Rev.: 01 A
Rev.: 02 B
368
Rev.: 01 B
Info
Overview
Water Pressure
T-HS
Sw Nr mixing valve
Sw Nr B1/U1
Sw Nr Controller
Info
Sw Nr B1/U1
Sw Nr Controller
Info
Sw Nr B1/U1
Sw Nr mixing valve
