8 Technical data
Installation and operating manual
24
EKHW(D/C/P)(300/500)(P)B
Daikin Altherma ST (Hot water storage tank)
008.1633099_00 – 06/2020
8 Technical data
INFORMATION
Several hot water storage tanks listed here are probably
not offered in certain countries.
8.1 Information on the type plate

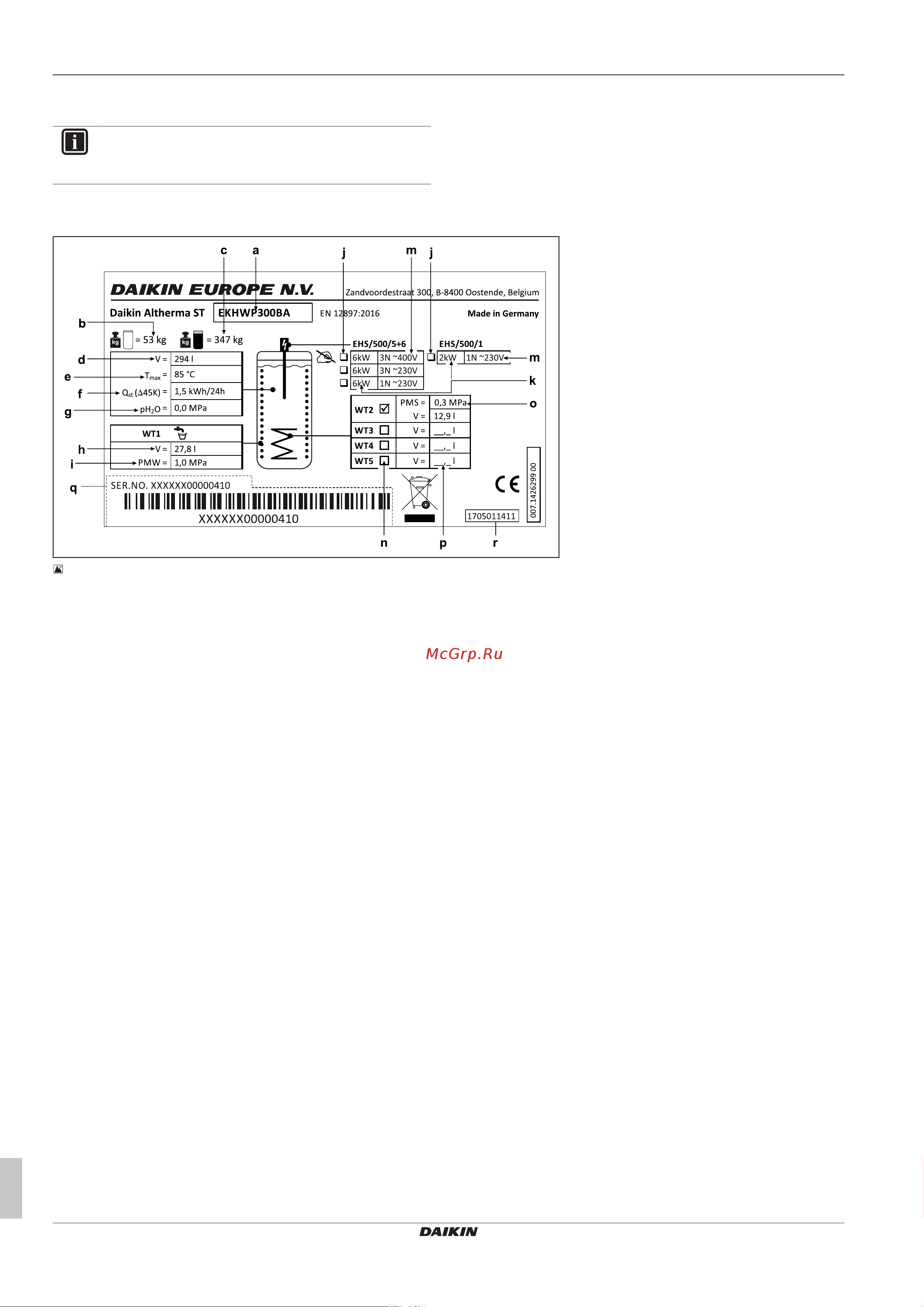

8‒1 Type plate
a Model identifier
b Empty weight
c Total filled weight
d Total storage capacity V
e Max. permissible operating temperature T
max
f Standby heat expenditure in 24 hours at 65°C (storage tank temp.) Q
st
g Operating pressure of storage water pH
2
O
h Nominal capacity of drinking water
i Max. operating pressure (plumbing)
j Marking of the installed immersion heater type (optional)
k Immersion heater heat output (optional)
m Immersion heater power supply (optional)
n Marking of the integrated heat exchanger
o Max. permissible operating pressure PMS (heating)
p Water capacity heat exchanger
q Serial number (specify in the event of complaints or inquiries)
r Date of production
