LAN-10
[CAN]
TROUBLE DIAGNOSES WORK FLOW

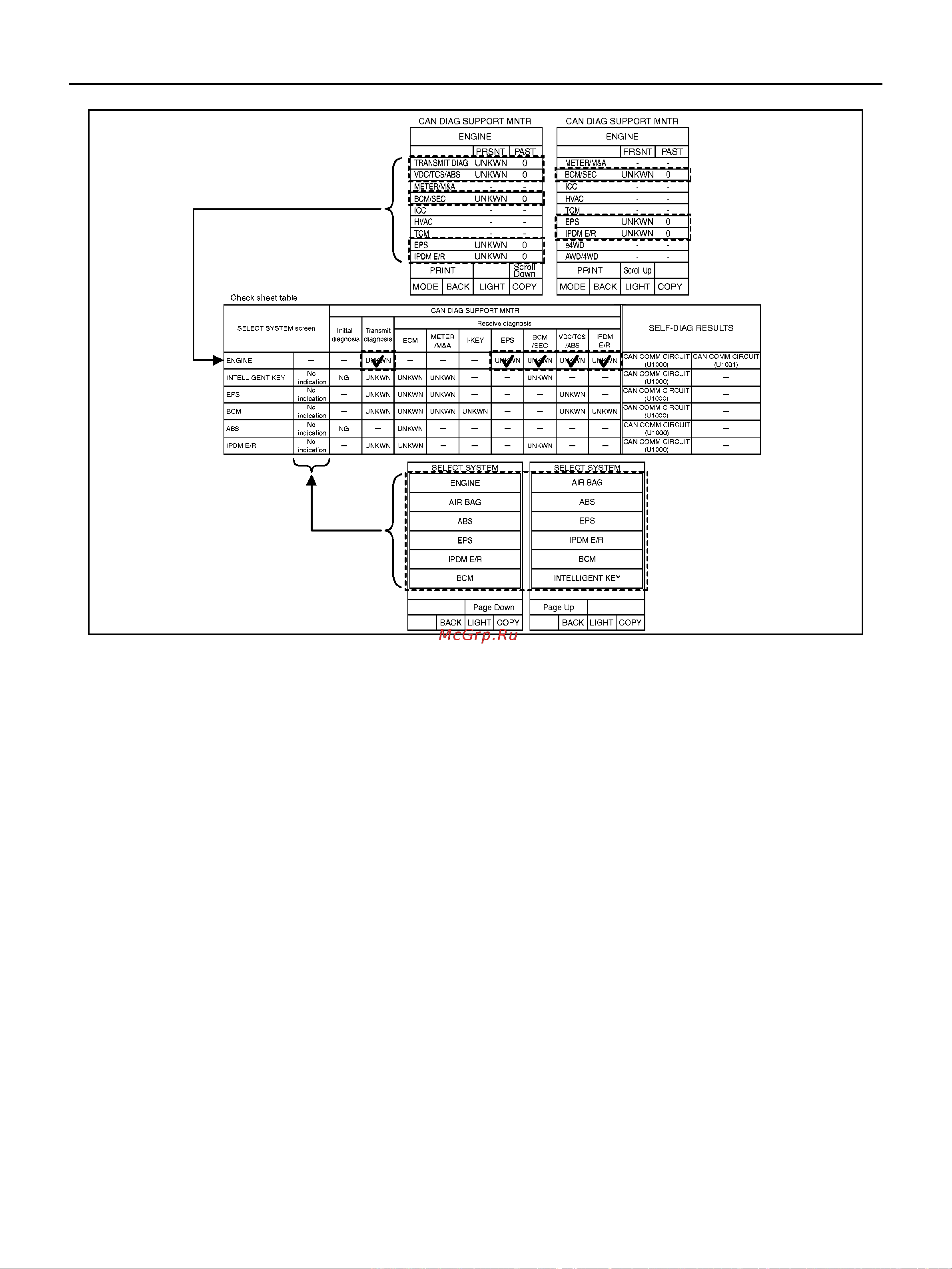

Example of Filling in Check Sheet When Initial Conditions Are Reproduced
1. Put a check mark to “No indication” if some of unit names listed on the column of diagnosis system selec-
tion screen of a check sheet table are not displayed on “SELECT SYSTEM” screen attached to the check
sheet.
NOTE:
Do not put a check mark on items in the column of “No indication” on the check sheet when displaying all
items on “SELECT SYSTEM” screen.
2. Confirm the unit name that “UNKWN” is displayed from the copy of “CAN DIAG SUPPORT MNTR” screen
of “ENGINE” attached to the check sheet, and then put a check mark to the check sheet table.
NOTE:
In “CAN DIAG SUPPORT MNTR” screen, “UNKWN” is displayed on “TRNSMIT DIAG”, “VDC/TCS/ABS”,
“BCM/SEC”, “EPS” and “IPDM E/R”. Put a check mark to it.
PKIC9390E
